| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 1000KG |
| Dimension(L*W*H): | 1300*2500*200MM |
| Power(W): | 3.0KW |
| Voltage: | 380V |
| Model Number: | NC-1325 |
| Brand Name: | NICE CUT |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Condition: | New |
| Engraving Area: | 1300*2500MM |
| Engraving Speed: | 15000mm/s |
| CNC or Not: | Yes |
| Cooling Mode: | Water Cooling |
| Place of Origin: | China (Mainland) |
| Brand Name: | NICE CUT |
| Model Number: | 1325 |
| Dimension(L*W*H): | 1300*2500*190mm |
| Certification: | CE,SGS |
Quick Details
Specifications

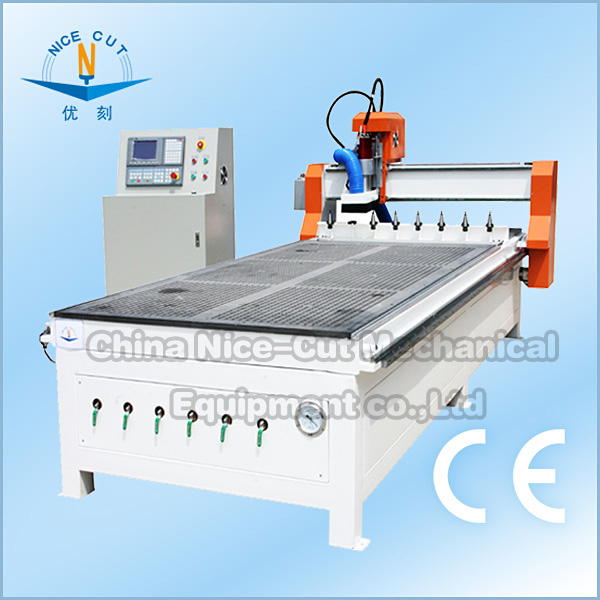

NC-L1325 high quality cheap cnc router for furniture with ATC hot sale
Features:
1.It is machine uses high-power domestic water cooling spindle,Italy 8kw air cooling spindle is also available for option
2.High accuracy,long service time,steady movement, good starting performance, great torque,fast speed and high efficiency are some advantagess of this machine
3.Janpan YASKKAWA servo motor ensures this CNC machine to run quickly and quietly.
Parameters:
|
NO. |
Discription |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm |
|
2 |
Table Size |
1440×3040mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Welded Strucutre |
|
6 |
X, Y Structure |

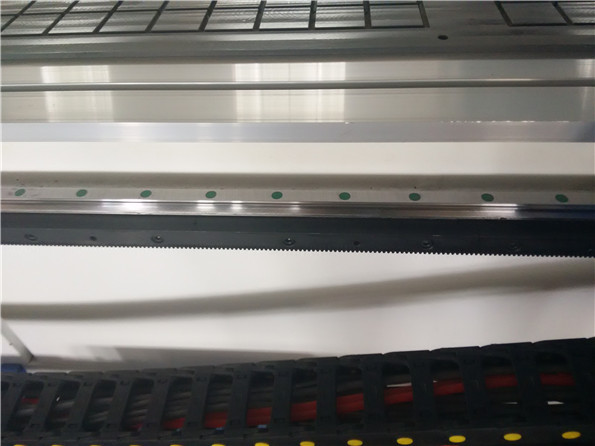

Gear Wheel Transmission, Shaft Linear Bearings |
|
7 |
Z Structure |
Ball Screw, Shaft Linear Bearings |
|
8 |
Max.Consume power |
8.0Kw |
|
9 |
Max.Speed |
0-45000mm/min |
|
10 |
Max.Working Speed |
0-25000mm/min |
|
11 |
Spindle Power Motor |
3.8Kw HSD Spindle ATC(Option 9Kw HSD Spindle ATC) |
|
12 |
Spindle Speed |
0-24000RPM |
|
13 |
Working Mode |
Servo system |
|
14 |
Working Voltage |
AC380V/50/60Hz , 3PH |
|
15 |
Command |
G Code, *uoo, *mmg, *plt |
|
16 |
Operating System |
SYNTEC System (Option DSP System) |
|
17 |
Interface |
Internet line |
|
18 |
Flash Memory |
512M |
|
19 |
Collet |
ER32 |
|
20 |
X,Y Working Delicacy |
<0.01mm |
|
21 |
Software |
Type3 software, Wentai software,Artcam software |
|
22 |
Running circumstance |
Temperature: 0°C~45°C, |
|
23 |
Packing Size |
3350x2180x2250mm |
|
24 |
Net Weight |
950KG |
|
25 |
Gross Weight |
1200KG |
|
All parameters above subject to change without prior notice |
||
