This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Using a 90° V-groove ring design for each ring, the LPC-12A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuits model.

Features

12 circuits models
2 amps ,240VAC/DC per circuit
Speed up to 300 rpm continuous
Gold-Gold contacts makes long life time
Compatible with data bus protocols
Sealed units are also available
Flexible, color-coded, silver-plated, Teflon? insulated lead wires
Transfers analog and digital signals
Also available with 5 and 10 amps power rings combined with 2 amps rings.
Precision ball bearings meet or exceed life requirements for most commercial applications


Main Application

Electrical test equipment

Manufacturing and process control equipment

Indexing tables

CCTV pan / tilt camera mounts

Robotics,rotary sensors,urgent illumination equipment

Exhibit / display equipment.

Aviation,military,instrument,medical equipment.

Advantage

Low torque minimizes system torque budget

Compact designto fit in the most demandingspace.

Smooth running

Low electrical noise

Quick shipment per your urgent requirement

360°continuous rotation

High bandwidth transfer capability

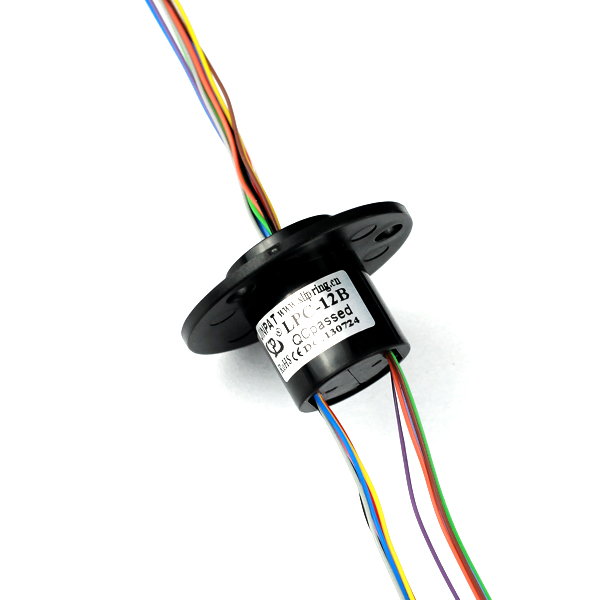

Product display


Notes:
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email
please contact us for your special needs so that our engineers provide the suitable solution and  recommendation for you!
