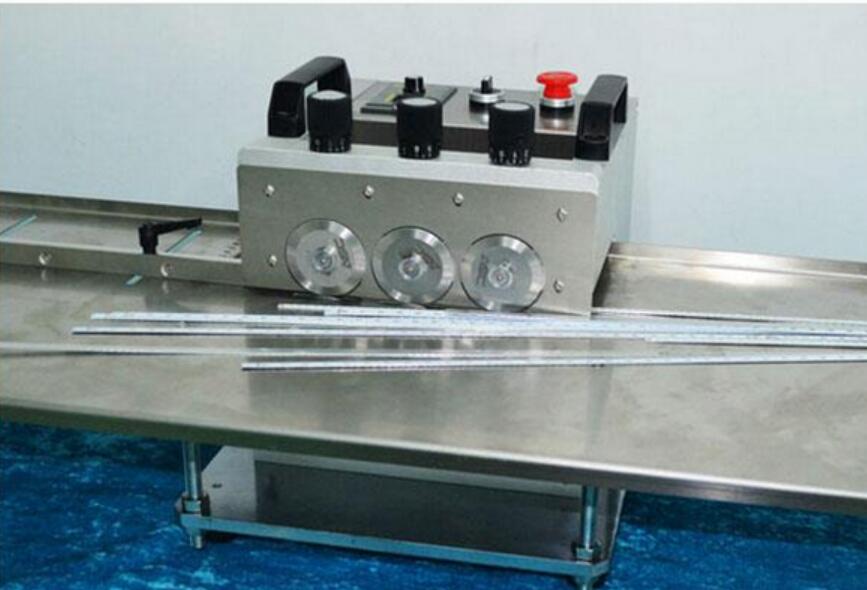

Aluminum LED Strip PCB Cutting Machine/Aluminum PCB board Cutter

Usage: Suitable for cutting unlimited length of v-cut PCB, aluminum PCB, FR4 PCB,
PCBA, etc.

Machine Parameters

Maximum length of the board: unlimited

Thickness:0.6~3mm

Feed pcb Speed:80, 120, 200, 300mm/s

Material of blade :SKH7 HSS

Power supply: 220V/50HZ 40W

Operating temperature: 10~35 degrees

Can cut LED panel, fiberboard, aluminum board , FR4

Size: 540mm(L)*280mm(W)*240mm(H)

Weight: 40kg

Storage temperature: -20~50 degrees



Features

1. For cutting any length v cut pcb, aluminum pcb, fiber board, FR4, LED pcb, pcba.

2. Three pair of blades can guarantee the aluminum plate without deformation and damage after cutting.

3.Due to three times cutting, cutting process is smooth and can locate v cut very well to avoid v-cut jumping out.

4.High quality blade and small cutting force ensures long life of blade.

5.Blades are calibrated by Excitation double-frequency laser interference measurement instrument, which can ensure rear and front blades cut same places of the v cut. Perfect cutting effect.



Advantages



1. It is quite suitable for aluminum board.

 2. It can cut the board without warping.

 3. The stress is very low when cut board.
