| Connection: | Plug In |
|---|---|
| Brand Name: | JP |
| WARRANTY: | 2 years |
| Color: | Black |
| Model Number: | JYH32-1202000 |
| Place of Origin: | China (Mainland) |
| Usege: | cellphone,ipad,iphone.. |
| Connection:: | US EU UK SAA |
| Size: | 70.9*47.4*30mm |
| Input Voltage: | 100-240VAC |
| Frequency: | 43-67HZ |
| Warranty: | 2 yearS |
| Certifcate: | UL FCC SAA GS C-tick CE&RoHS |
Quick Details
Specifications

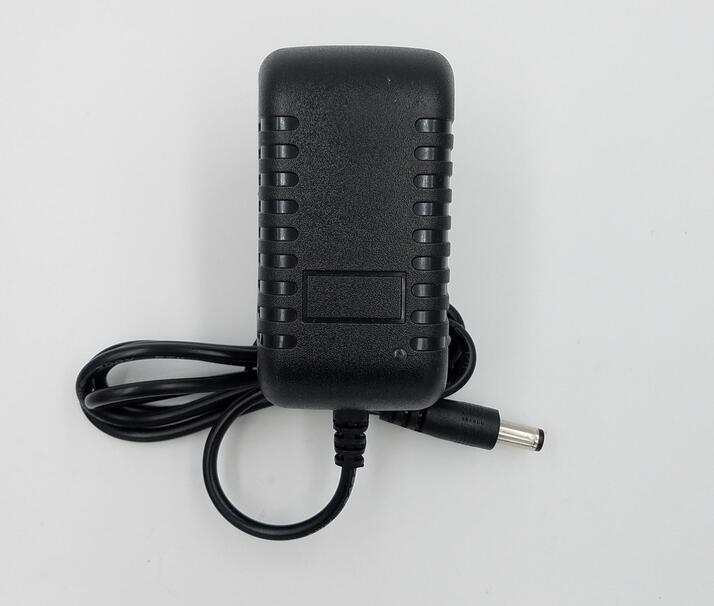

AC TO DC 12V 2000mA Switching Power Supply& 24W Power Adapter with UL GS CE FCC TUV for LED lighting strips
Features:
Universal AC input / Full range
Protections: Short circuit / Over current / Over voltage
Cooling by free air convection
Small and compact size
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
Specification:
|
Model |
JYH32-1202000 |
|
|
Output |
Voltage |
12V |
|
Current |
2.0A |
|
|
Power (max.) |
24W |
|
|
Ripple & noise (max.) |
100mVp-p |
|
|
Efficiency |
75% |
|
|
Voltage tolerance |
5.0% |
|
|
Lineregulation |
1.0% |
|
|
Load regulation |
1.0% |
|
|
Setup,rise time |
100ms / 115VAC at full load |
|
|
Hold up time |
30ms/115VAC at full load |
|
|
Input |
Voltage range |
90 ~ 264VAC |
|
Frequency range |
47 ~ 63Hz |
|
|
AC Current (max.) |
0..8A/115VAC 0.5A/230VAC |
|
|
Inrush current(max.) |
COLD START 30A/115VAC 60A/230VAC |
|
|
Protection |
Over current |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
|
Over voltage |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
|
|
Short circuit |
TYPE: cut output reset: automatic recovery |
|
|
Environment |
Working temp. |
0~ 40 |
|
Working humidity |
20% ~ 80% R.H non-condensing |
|
|
Storage temp.,humidity |
-20~ 70 20% ~ 90% R.H |
|
|
Safety &EMC |
Dielectric Strength Hi-Pot |
Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA |
|
Insulation resistance |
Primary to secondary, Primary to shell, shell to secondary; >100M Ohms / 500VDC |
|
|
Leaking current |
0.25mA / 240VAC |
|
|
Safety standard |
UL GS SAA KCC BSI PSE CCC |
|
|
EMC Standards |
CE EN55022B FCC |
|
|
Green mode |
Noload Power Consumption Less Than 0.3W |
|
|
Others |
MTBF |
50000hrs min. MIL-HDBK-217F (25 ) |
|
Dimension |
87*45*32mm(L*W*H) |
|
|
Weight |
146g/pcs |
|
