| Usage: | chair backrest tilting tester |
|---|---|
| Power: | Electronic |
| Model Number: | TST-C1027 |
| Brand Name: | TST |
| Place of Origin: | China (Mainland) |
| Standard method: | ANSI/BIFMA X5.1 |
| backrest tilting angle: | 15~90 degree adjustable |
| Cylinder: | SC80x600mm |
| Air source: | 5~7kgf/cm2 |
| Loading: | 102kg |
| backrest tilting tester: | backrest fatigue test,office furniture test |
Quick Details
Specifications

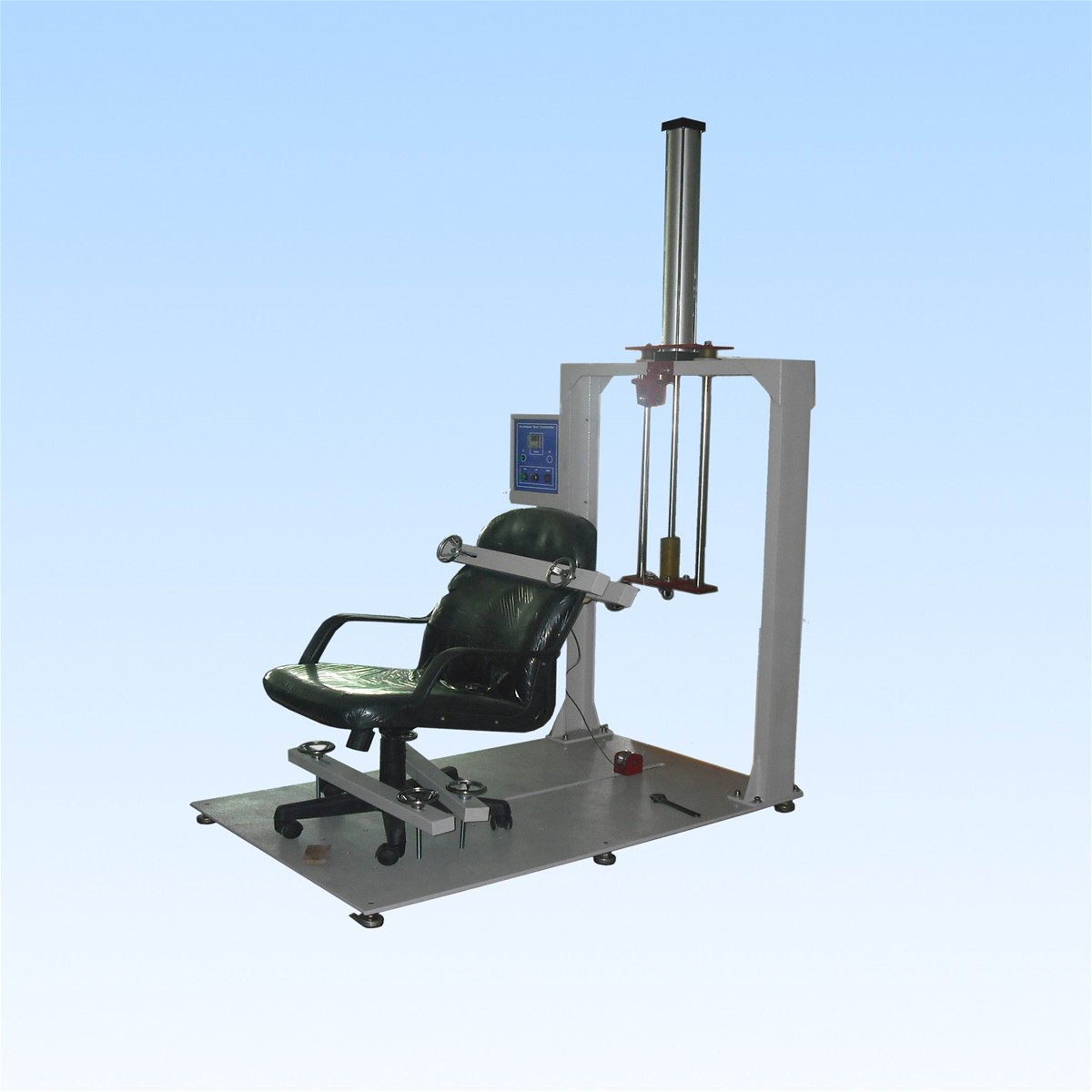

TST-C1027 Office chair backrest tilting durability tester
Usage:
The machine is suitable for use in offices, meeting rooms and other occasions chairs or other similar purposes occasions chair also can be referred.
Principle
Placed a certain weight load on chair seat to repeated cycle on chair backrest tilting mechanism to determine the office chair tilting mechanism durability.
According Standard
QB/T2280-2007 6.6.11, ANSI/BIFMA X5.1-2011 5, ANSI/BIFMA X5.1-2011 6
Test Object: Office chair backrest
Test Items: Titling mechanism testing QB/T 2280-6.6.11, place 102kg load on the chair seat, loading speed is 10-30 times/min, total 300000 times.
Results Evaluation: Cant lost the function after test
Technical Parameter
| Capacity | 102kg |
| Backrest tilting angle | 15~90 degree adjustable(Achieved by adjusting the limit switches on the cylinders) |
| Test Speed | 10~30times adjustable(Achieved by adjusting cylinder airflow ) |
| Sest loading | The iron disc intermediate with fixtures, surface electrostatic spraying,backrest load is canvas with steel balls. |
| Cylinder | SC80x600mm |
| Counter | LCD 0~999999 can be set |
| Air source | 5~7kgf/cm2 |
| Dimensions | 1600x1400x2280mm |
| Weight | 200kg |
| Power supply | AC220V 50HZ |
