| Output Voltage: | DC 12V |
|---|---|
| Input Voltage: | 220V |
| Output Type: | Single |
| Output Power: | 51 - 100W |
| Brand Name: | woajepu |
| Output Current: | 5.0A |
| Output Frequency: | 50-60HZ |
| Model Number: | JP60W12V |
| Place of Origin: | China (Mainland) |
| Overload protection:: | 105%-180% |
| Warranty: | 12 months |
| Size: | 159*98*38mm |
Quick Details
Specifications

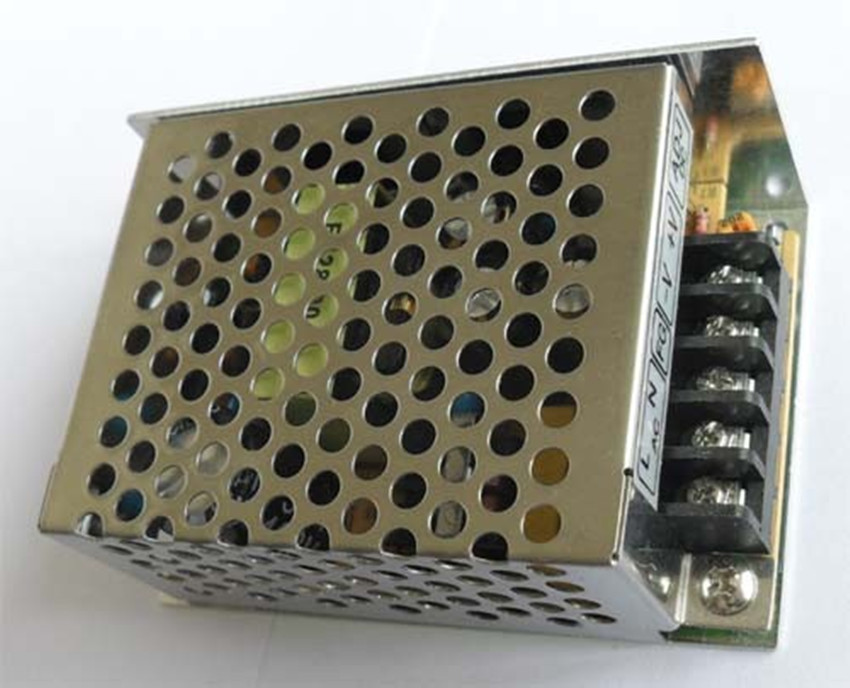

60W AC DC Power Supply 240V AC 50-60HZ
Features:
1.Low price and high reliability
Input power suitable for the world
3.High efficiency and low operation temperature
4.Soft-start current can reduce the AC input impact effectively
5.with short-circuit and overload protection
6.Compact size,light weight
7.over 100% full-load burn-in test
Specifications:
Input specification |
Input voltage |
AC90-264V |
Input frequency |
50-60Hz | |
Input impulse current |
30A/115V 60A/230V | |
Input current |
P<=100W: 2A/115V 1A/230V | |
101W - 200W: 3A/115V 1.5A/230V | ||
201W - 400W: 5A/115 2.5A/230V | ||
Output specification |
Output Voltage |
12VDC |
Voltage regulation |
(Full load) 5% | |
Output voltage can be adjusted |
10% | |
Wave and noise |
120mVp-p | |
Efficiency |
85% | |
Output current |
5A | |
Output power |
60W | |
Protection function |
over-voltage protection |
105% - 150% of the rated voltage |
over-current protection |
105% - 150% | |
under-voltage protection |
Under80% | |
Protection level(Waterproof level) |
20 | |
Rainproof level |
60 | |
Insulation intensity |
Input---output |
2000VAC/min |
Input---ground |
1500VAC/min | |
Output---ground |
500VAC/min | |
Isolation resistance |
Input---output |
500VDC-100m |
Environmental |
Temperature coefficient |
0.01%(0-50C) |
Humidity coefficient |
0.01% / (20% ~ 90% RH) | |
Working temperature and humidity |
20C~60C/20%~90%RH | |
Storage temperature and humidity |
40C~85C/10%~95%RH | |
Height above sea level |
Leq2000M | |
Fan |
Fan | |
without fan |
Natural cooling air convection | |
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |
Safty standards |
According with GB4943, UL60950-1,EN60950-1 standards | |
EMC standards |
According with GB9254, EN55022 class A?EN61347-2-13:2008 standards | |
Size(mm) |
139(L)*110(W)*50(H) | |
Weight |
145g/PCS | |
Package |
100pcs/A box | |
