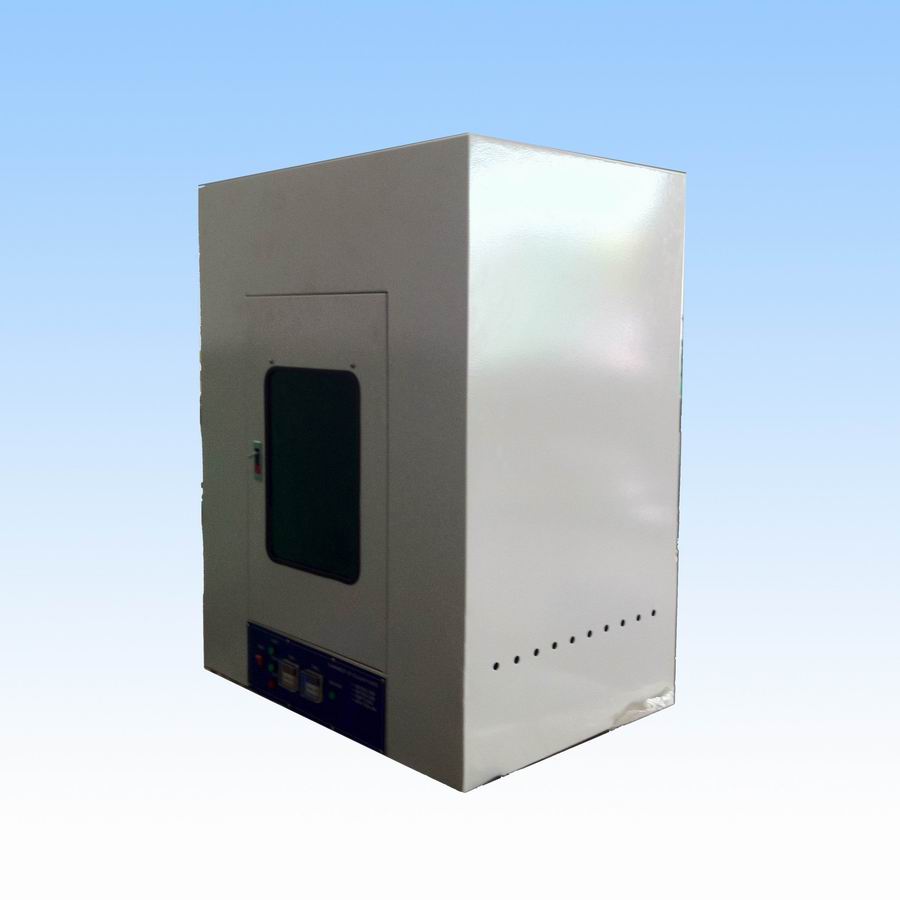

TST-C1040 Sponge Foam Flammability Resistance Tester

Application

1.The machine is suitable for the determination of the ralatively vertical flammability performance of small hard foam and foam rubber sample
2.This machine is suitable for the determination of the foam horizontal flammability performance
3.This machine is suitable under laboratory conditions, assessment of ISO 845:1985 Determination of density less than 250 kg / m ^ 3r foamhorizontal flammabilit performance of the sample in a small flame burning.
4.The test results as a basis for risk assessment under actual conditions of use of fire.

Theory

1.Vertically flammability performance test: The specification specimen suspended vertically in the vertical burning chimney within an angle of 15 degrees with a certain height of the flame, burning the bottom of the sample after 10s flame is removed, calculates the combustion time and the quality of the combustion residues.
2.The horizontal flammability performance tests: Specification the sample placed horizontally on the sample holder, backward edge flame burning certain height of the flame vertical edge of the sample 60s, to calculate the rate of burning through the burning time or tag line.

Standard
GB 8333,GB/T 8332 and ISO 9772



Bunsen burner tube inner bore	9.5±0.5mm
Bunsen burner burning barrel length	100±10mm
Bunsen burner with a vertical direction angle	0°/15°
The Bunsen burner Wings top	Inner opening length48±1mm,wideth1.3±0.05mm
Vertical burning frame tube length	305mm
Vertical burning of the sample position	The distance to burning tube top is 25mm
Horizontal burning of the sample position	The distance of sample bottom to Bunsen burner wing top is 13±1mm
Horizontal burning holder	215mmx75mm,the end portion is folded at right angles,height 13mm
Horizontal burning frame height	38±2mm
Horizontal burning ignition time	60s
Weight(Approx)	38Kg
Power Supply	AC 220V 50Hz 3A
