| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Model Number: | M25BD |
| Brand Name: | TZJD |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Working area: | 1300mm*2500mm*300mm |
| Machine color: | as customized |
| Machine structure: | Square tube welding whole body |
| Spindle: | 5.5kw/6kw/7.5kw air-cooling |
| Working table: | vacuum absorptional table with vacuum pump system |
| Motor driver: | stepper servo |
| Controller: | Ncstudio, DSP, Syntec, LNC |
| Necessary system: | Tool calibration system, Oil lubrication system |
| Guie rails: | Taiwan HIWIN Square linear bearings |
| Software: | Type3 Artcam English version |
Quick Details
Specifications
Multi heads CNC Router machine TZJD-M25BD New style Woodworking 3D CNC Engraving machine
1- Machine photo
2- Main Features
1. The lathe bed was cast steel square tube welding body, strong and without distortion.
2. Multi Head works alternately, it can achieve the tools change automatic quickly. Largely eliminating the need for manual tool change time, improve working-efficiency & working-speed.
3. Advanced DSP Controller system, read U disk. Complete work offline, don't use computer resources.
4. Vacuum absorption table was adding, it can absorp the wooden materials closely.
Guarantee the working-efficiency.
5. Vacuum pump system with six zones, vacuum pump system.
6. Oil-lubrication system. Extra time can be saved. Meantime prolong the service life of the machine.
7. Performance and carefree: breakpoint carving, power failure recovery, processing time forecasting.

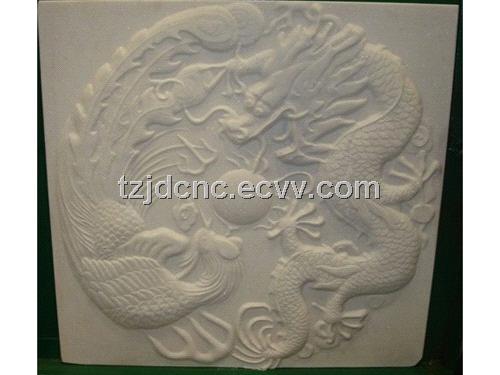

3- Sample photo
4-Technical specification
|
Description |
Paramater |
|
TZJD-M25BD |
|
|
Working Area (X*Y*Zmm) |
1300mmx2500mmx300mm |
|
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
|
Z Structure |
Ball Screw/Gear Wheel |
|
Table Surface |
Bakelite Vacuum Absorption Table |
|
Max Engraving Speed |
35000mm/min |
|
Frame |
Cast Steel Square tube welding |
|
Spindle power(KW) |
4.5Kw/5.5kw/6kw/7.5kw/8kw/9kw, *2 |
|
Max. Power Consumption(Without spindle) |
2.0KW |
|
Spindle Speed |
6000-24000rpm |
|
Resolution |
0.0025mm |
|
Repeatability |
0.01mm |
|
Voltage |
AC220V,50/60Hz,1PH(option,380V 3PH) |
|
Drive motor |
Stepper/Servo(option) |
|
Working Dictate |
G Code*.u00*.mmg*.plt. HPGL |
|
Operating system |
Dsp System |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3,Ucancam, Artcam Software |
|
Running Environemt |
Temperature: 0℃～45℃ |
|
Relative humidity: 30%～75% |
|
|
Windows98/2000/xp |
|
|
Machine available |
Vacuum absorption table, 5.5KW vacuum pump system, Auto-oiling system, Dust collector with dust cover, Spindle cover device, Rotary device |
