Product Main

Quick Details

Type: Car Washer
Material: steel
Size: 11300x3800x3150mm
Brand Name: FORWARD
Type: car wash machine
weight: 2500
Model Number: FW-W900
Place of Origin: China (Mainland)

Specifications

FW-W900 series tunnel car Wash machine is fully automatic system. the vehicle is driven in by the Conveyor system. the machine can wash about 80 cars in one hour with soft foam Brushes high efficiently.

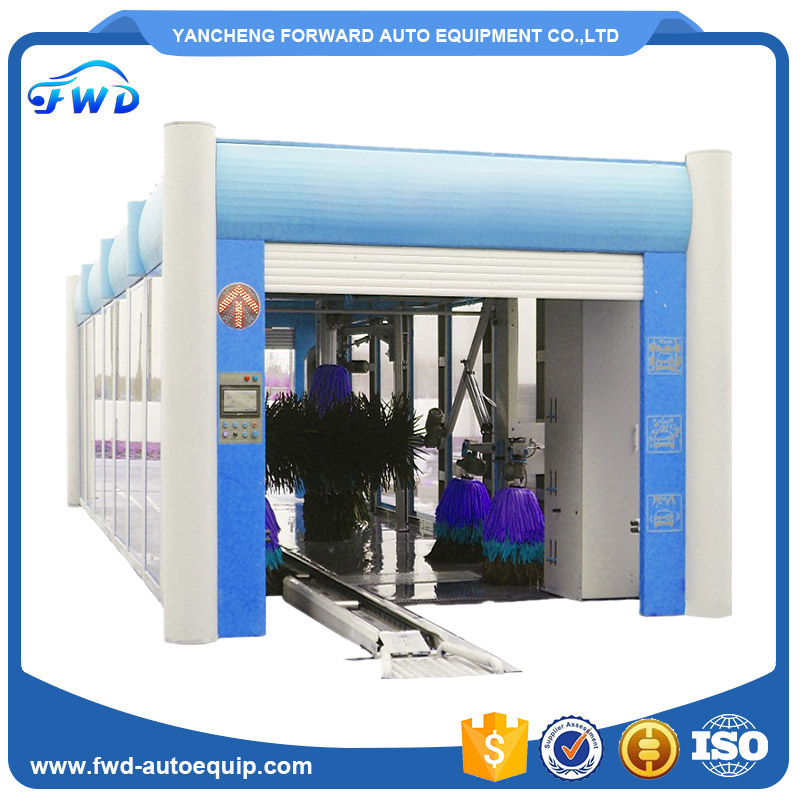

 automatic tunnel car wash machine

Features:

1. Adopt advanced technology and full module Design, which can be combined   to more Than ten different functions for different requirements.

2. High pressure pre-wash, foam wash, brush Wash, spraying wax, drying in one time.

3. Frequency control at the travel and lift Drives for a careful, smooth running and variable speeds.

4. Precise control, contour-tracking washing and Drying.

5. Unique fault self-testing system.

6. Main electrical components are imported from Famous foreign factory, which can ensure safer and more reliable.




Technical Parametes:

Model

FW-W900-A

FW-W900-B

Machine size (LWH)

10200x3800x3150mm

11300x3800x3150mm

Wash size (WH)

1950x2000mm

1950x2000mm

Conveyer length

11100mm

11850mm

Bay size

12240x4000mm

12990x4000mm

Electric standard

380V 50Hz 3 phases

380V 50Hz 3 phases

Power

30KW

30KW

Water supply

DN40

DN40

Water consume

170L/vehicle

170L/vehicle

Wash speed

80 cars per hour

80 cars per hour

Hi-pressure

3 sets

3 sets

Wash brush

7 sets

9 sets

Blower

4 sets

4 sets
