| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO,CE |
| Weight: | 2000kg |
| Overall Dimensions: | 3*3*0.7m |
| Table Size: | 3*3m |
| Max. Lifting Height: | 3.4m |
| Min. Lifting Height: | 700mm |
| Rated Loading Capacity: | 2000kg |
| Power: | 3kw/380v |
| Lift Drive / Actuation: | Hydraulic |
| Lift Mechanism: | Scissor Lift |
| Model Number: | SJG2-3.4 |
| Brand Name: | SATEN |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

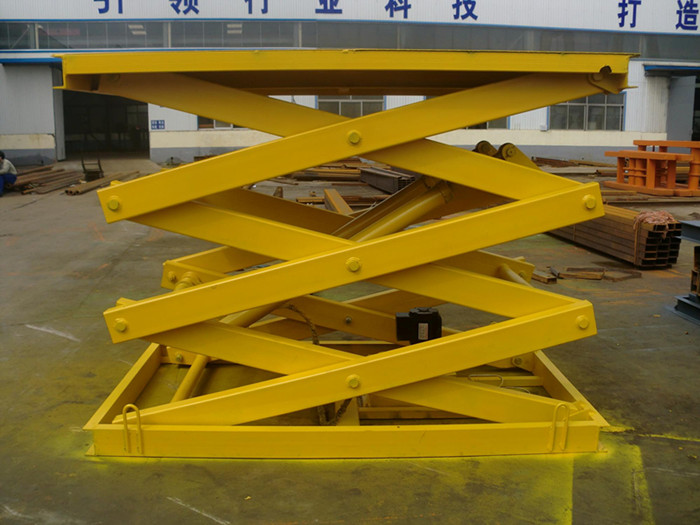

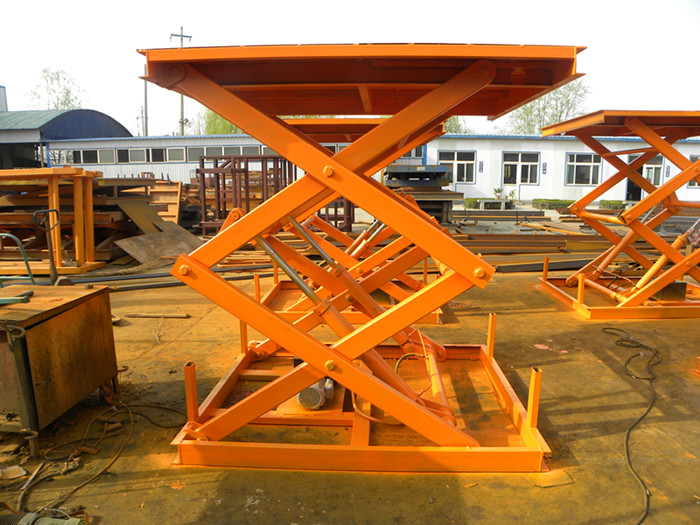

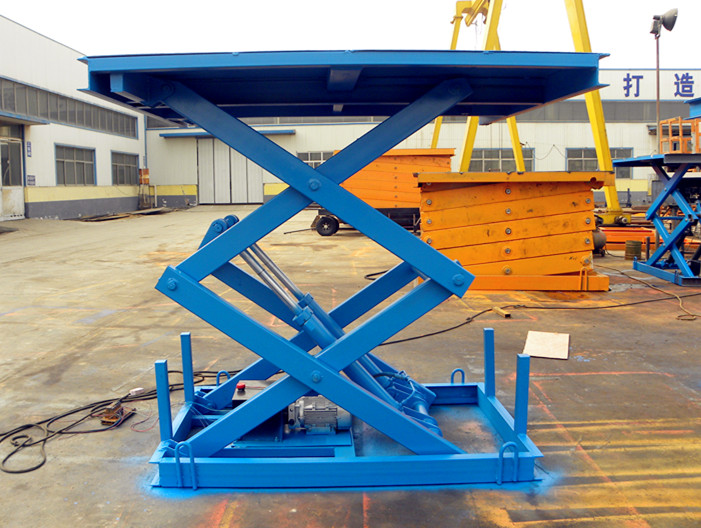

Stationary scissor lift tabe:
Model:SJG2-3.4;
Capacity:2tons;
Lifting height:3400mm;
Platform size:3*3m;
Closed height:700mm;
Weight: 2000kg;
Motor: 380v/50hz/3kw;
Thickness of platform:4mm;
Cylinder:dia.80mm,2pcs;
Main materi: steel tubes, size:160*80*5mm;
Handrail: 4pcs, 900mm;
Guide rails: 4pcs, 12# steel.
Package: wooden case packing.
