Product Main

Quick Details

Moving Type:	Wheel Loader
Type:	Front Loader
Place of Origin:	Japan
Model Number:	wa380
Brand Name:	komatsu
Condition:	Used
Make:	Komatsu

Specifications

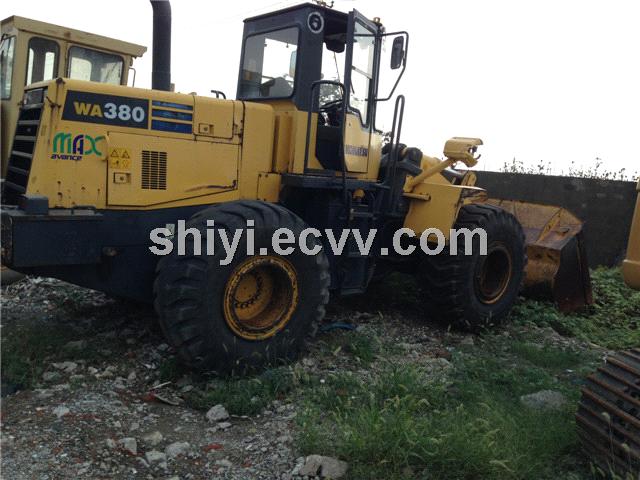

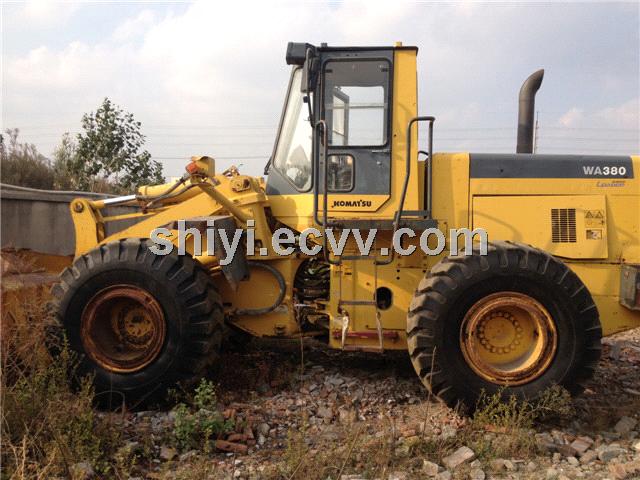

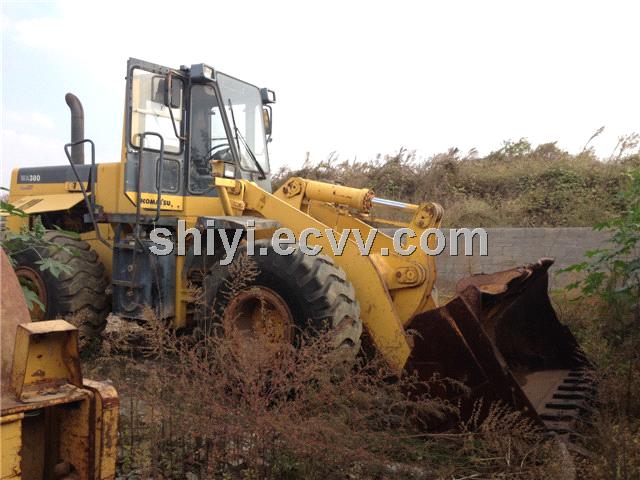

WA380-3 Komatsu Wheel Loader for Sale

General Information
Make: Komatsu
Model Number: WA380-3
Year: 1999
Moving Type: Crawler
Place of Origin: Japan
Condition: excellent

Specification
Engine
Make Komatsu
Model S6D108
Gross Power 187.7 hp 140 kw
Displacement 436.3 cu in 7.2 L
Operational
Operating Weight 35902.3 lb 16285 kg
Fuel Capacity 75.8 gal 287 L
Static Tipping Weight 27513.7 lb 12480 kg
Turning Radius 21.1 ft in 6430 mm
Tire Size 20.5-25-16PR

Transmission
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed - Forward 19.6 mph 31.5 km/h
Max Speed - Reverse 20.2 mph 32.5 km/h
Bucket
Breakout Force 33300 lb 148.1 kN
Dump Clearance at Max Raise 9.6 ft in 2925 mm
Bucket Width 9.5 ft in 2905 mm
Bucket Capacity - heaped 4.2 yd3 3.2 m3
Bucket Capacity - struck 3.5 yd3 2.7 m3

Dimensions
Length with Bucket on Ground 26.1 ft in 7965 mm
Width Over Tires 8.8 ft in 2695 mm
Height to Top of Cab 10.9 ft in 3315 mm
Ground Clearance 1.3 ft in 390 mm
Wheelbase 10.5 ft in 3200 mm
Hinge Pin - Max Height 13.2 ft in 4030 mm
Reach at Max Lift and Dump 3.8 ft in 1170 mm
