| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE |
| Power(W): | 60KW |
| Voltage: | 380-480V |
| Weight: | 130KG |
| Dimension(L*W*H): | 800*470*560mm; |
| Model Number: | BH-60AB |
| Brand Name: | blueflame |
| Place of Origin: | China (Mainland) |
| Power Source: | Electric |
| Type: | induction heating |
| Condition: | New |
| hardening machine: | heat treatment |
| quencing machine: | induction heater |
Quick Details
Specifications
High Frequency Induction Heating Machine
1. High Frequency Induction Heating Machine adopted European MOSFET, IGBT solid power module and advanced inverter technology.
2. Can set the time of three stages: " Heating" , " MaintainTemperature" , " Cooling" , separately. Furthermore, the function of adjusting the power of " Maintain Temperature" independently will be effective to control the heating curve and the heating temperature.
3. Include " over-current, over voltage, water shortage, lack of phase and other fault state self-protected and display" , also some other necessary functions which will ensure our heater's higher reliability and durability.
4. Easily operate and the output voltage is safe for operator.
5. Hundred Percent Rated Duty Cycle design, can work 24hours continuously.
heater's higher reliability and durability.
Specification:
|
Model No. |
BH-5A |
BH-15A |
BH-15AB |
BH-25A |
BH-25AB |
BH-40AB |
BH-60AB |
BH-80AB |
BH-100AB |
BH-120AB |
|
Max Fluctuating Power |
5KW |
15KW |
15KW |
25KW |
25KW |
40KW |
60KW |
80KW |
100KW |
120KW |
|
Fluctuating Frequency |
10-250KHZ |
30-100KHZ |
30-100KHZ |
30-80KHZ |
30-80KHZ |
30-80KHZ |
30-80KHZ |
30-80KHZ |
30-80KHZ |
30-80KHZ |
|
Heating Current |
100-500A |
200-600A |
200-600A |
200-1200A |
200-1200A |
200-1800A |
400-3200A |
400-3800A |
400-4200A |
400-4600A |
|
Input Voltage |
(1Phase), 220V, 50HZ-60HZ |
(1Phase), 220V, 50HZ-60HZ |
(1Phase), 220V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
(3Phase), 380V, 50HZ-60HZ |
|
The Flow Rate of Cooling Water |
0.2Mpa, 6L/Min |
0.2Mpa, 6L/Min |
0.2Mpa, 6L/Min |
0.2Mpa, 6L/Min |
0.2Mpa, 6L/Min |
0.2Mpa, 7L/Min |
0.2Mpa, 9L/Min |
0.2Mpa, 9L/Min |
0.2Mpa, 12L/Min |
0.2Mpa, 12L/Min |
|
Water Temperature Protecting Point |
40°C |
40°C |
40°C |
40°C |
40°C |
40°C |
40°C |
40°C |
40°C |
40°C |
|
Net Weight(Kg) |
(Integrated): 16Kg |
(Integrated): 21Kg |
Main Part: 10Kg; Transformer Part: 13.5Kg. |
(Integrated) : 28.5Kg |
Main Part: 18.5Kg; Transformer Part: 13.5Kg. |
Main Part): 30Kg; Transformer Part: 35Kg. |
Main Part: 65Kg; Transformer Part: 43Kg. |
Main Part: 45Kg; Transformer Part: 70Kg. |
Main Part: 65Kg; Transformer Part: 70Kg. |
Main Part: 65Kg; Transformer Part: 73Kg. |
|
Dimension (mm*mm*mm) |
180*330*410mm; |
460*200*385mm; |
Main Part: 460*200*385 Transformer Part: 315*200*350mm. |
480*200*385 mm; |
Main Part: 480*240*400mm; Transformer Part: 315*200*350mm. |
Main Part: 556*280*470mm; Transformer Part: 360*265*365mm. |
Main Part: 800*470*560mm; Transformer Part): 500*304*402mm. |
Main Part: 500*304*402mm; Transformer Part): 800*470*560mm. |
Main Part: 800*470*560mm; Transformer Part: 800*470*560mm. |
Main Part: 800*470*560mm; Transformer Part: 850*470*560mm. |
As for the induction heating machine, it still included Ultrasonic Frequency Induction Heating Machine, Medium Frequency Induction Heating Machine, Superhigh Frequency Induction Heating Machine due to different working frequency.

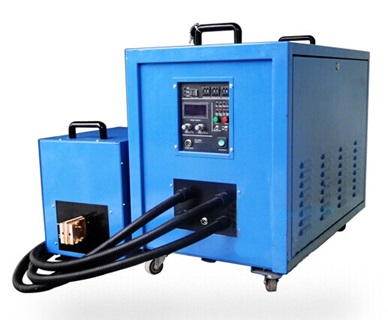

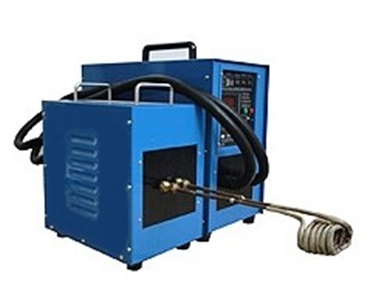

Pictures of machine:
Heating Samples and Applications:
