| Model Number: | 1325BD |
|---|---|
| Brand Name: | TZJD |
| Place of Origin: | China (Mainland) |
| Working area: | 1300mm*2500mm*200mm |
| Working table: | Vacuum absorptional table with vacuum pump system |
| Spindle: | 2.2kw/3.0kw/4.5kw/6kw/7.5kw/9kw water-cooling/air-cooling *2 |
| Structure: | Rack gear |
| Control system: | NC studio, DSP, Syntec, LNC |
| Guide rails: | HIWIN Square linear bearing |
| Motor driver: | stepper, servo |
| Interface: | USB, PCI |
| Software: | Type3 Artcam English version |
| Necessary system: | Tool calibration system, Oil lubrication system |
Quick Details
Specifications
Three axis CNC Carving machine/CNC Wood Router TZJD-1325BD
1- Product Features
1. The lathe bed was cast steel square tube welding body, strong and without distortion.
2. Multi Head works alternately, it can achieve the tools change automatic quickly. Largely eliminating the need for manual tool change time, improve working-efficiency & working-speed.
3. Advanced DSP Controller system, read U disk. Complete work offline, don't use computer resources.
4. Vacuum absorption table was adding, it can absorp the wooden materials closely.
Guarantee the working-efficiency.
5. Vacuum pump system with six zones, vacuum pump system.
6. Oil-lubrication system. Extra time can be saved. Meantime prolong the service life of the machine.
7. Performance and carefree: breakpoint carving, power failure recovery, processing time forecasting.
2- Specification Parameter
Description
Paramater
TZJD-1325BD
Working Area (X*Y*Zmm)
1300mmx2500mmx200mm
X, Y Structure
Gear Wheel Transmission, Shaft Linear Bearings
Z Structure
Ball Screw, Shaft Linear Bearings
Table Surface
Vacuum absorption table with vacuum pump system
Max Engraving Speed
20000mm/min
Frame
Cast Square tube welding
Spindle power(KW)
3kw/4.5kw/5.5kw/6kw/7.5kw/9kw *2
Max. Power Consumption(Without spindle)
2.0KW
Spindle Speed
6000-24000rpm
Resolution
0.005mm
Repeatability
0.01mm
Voltage
AC220V,50/60Hz,1PH(option,380V 3PH)
Drive motor
Stepper/Servo/Yaskwa
Working Dictate
G Code*.u00*.mmg*.plt
Operating system
Dsp System/Syntec/LNC
Necessary function
Oil lubrication system
Interface
USB
Flash memory
128M(U Disk)
Software Compatability
Type3,Ucancam, Artcam Software
Running Environemt
Temperature: 0℃～45℃
Relative humidity: 30%～75%
Working software
Windows98/2000/xp
Wood industry,furniture, woodworker, relief, Advertising industry, breastplate, doorplate, Art-craft industry,
double-color board, bamboo crafts.
4- Advertising industry
Wood, organic glass, PVC board, KT board, Acryl , MDF board, plastic, metal/aluminum, wood waves,
indoor & our door engraving/carving/cutting, etc.

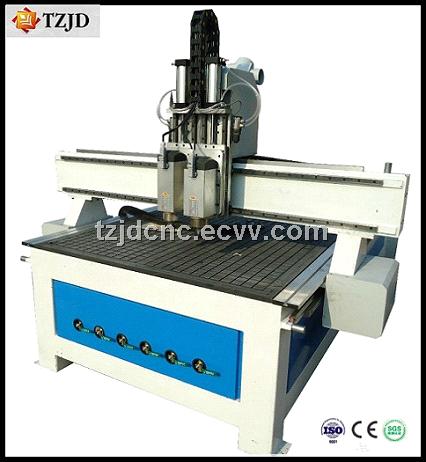

5- Machine photo
6- Sample photo
