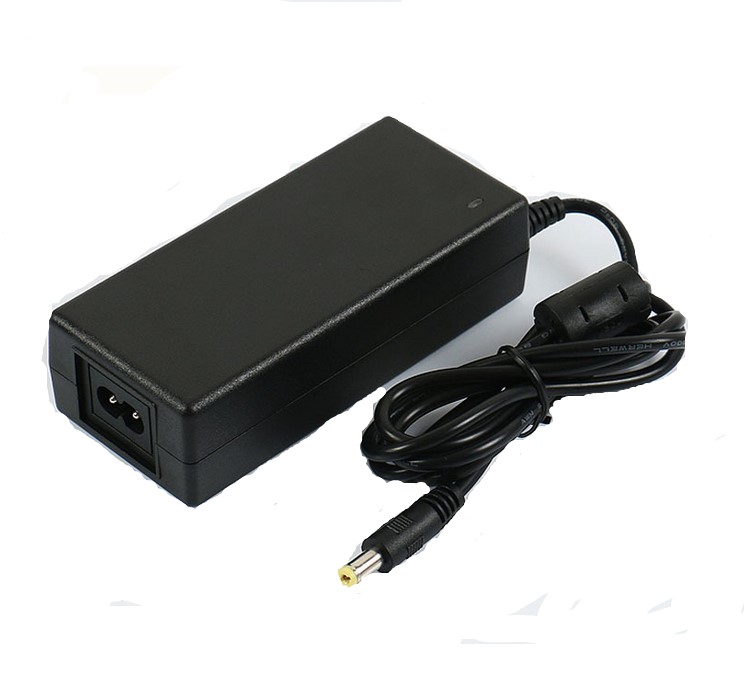

12V 4A Switching Power Adapter&Power Supply 48W 100-240VAC for LCD Monitor/displayer

Output:

       12V 4A

       Power(max):48W

        Ripple & noise (max.):100mVp-p

        EFficiency:80%

        VOltage tolerance:5.0%

        Line Regulation:1.0%

        LOad regulation:1.0%

        Setup time:100ms / 115VAC at full load

        HOld up time:30ms/115VAC at full load

Input:

        Input voltages: 90~264V AC

        Frequency range: 47~63Hz

        AC Current (max.): 1.2A/115VAC    1.0A/230VAC

        Inrush current(max.):COLD START 30A/115VAC  60A/230VAC

Protection:

        over voltage protection/over current protection/Short circuit

ENvironment:

        Working temperatures: 0 ~ 40

        Storage temperatures: -20 ~ 70

        Working humidity:20% ~ 90% R.H non-condensing

Safety &EMC:

        SAfety standard:UL GS SAA KCC BSI PSE CCC

        EMC STandards:CE EN55022B  FCC

        GReen mode:Noload Power Consumption Less Than 0.3W

MTBF:50000hrs min.  MIL-HDBK-217F (25 )

DImension:115*50*35.5mm&119*52*32mm (L*W*H)

Weight:200g/pcs
