Brand Name: | HY |
---|---|
Frequency Range: | 12MHz~~70.000MHz |
Frequency tolerance: | +-10PPM~~+_50PPM |
Load Capacitance: | 9 12 16 18 20 30PF |
Operating Temperature: | -40 +85 |
Model Number: | SMD 3225 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

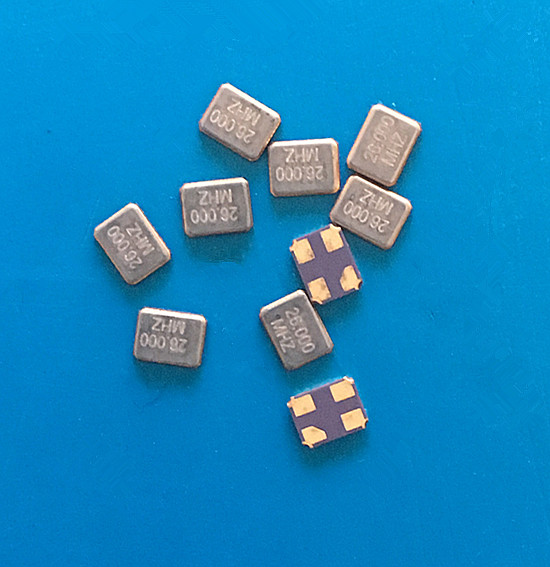

Holder type: |
SMD 3.2*2.5 |
Frequency: |
12--60MHz |
Frequency tolerance at 25oC: |
30Ppm |
Temperature tolerance: |
30ppm |
Operating temperature range: |
-20oC ~+70oC |
Storge temperature range: |
-30oC ~+85oC |
Load capacitance (CL): |
6 9 10 12 20 30 pF |
Shunt capacitance (C0): |
5pF max. |
Vibration mode: |
at fund |
Equivalent series resistance: |
40 |
Insulation resistance: |
500MMin(DC 100V) |
Aging: |
5ppm/year |
Drive level: |
0.1mw |
