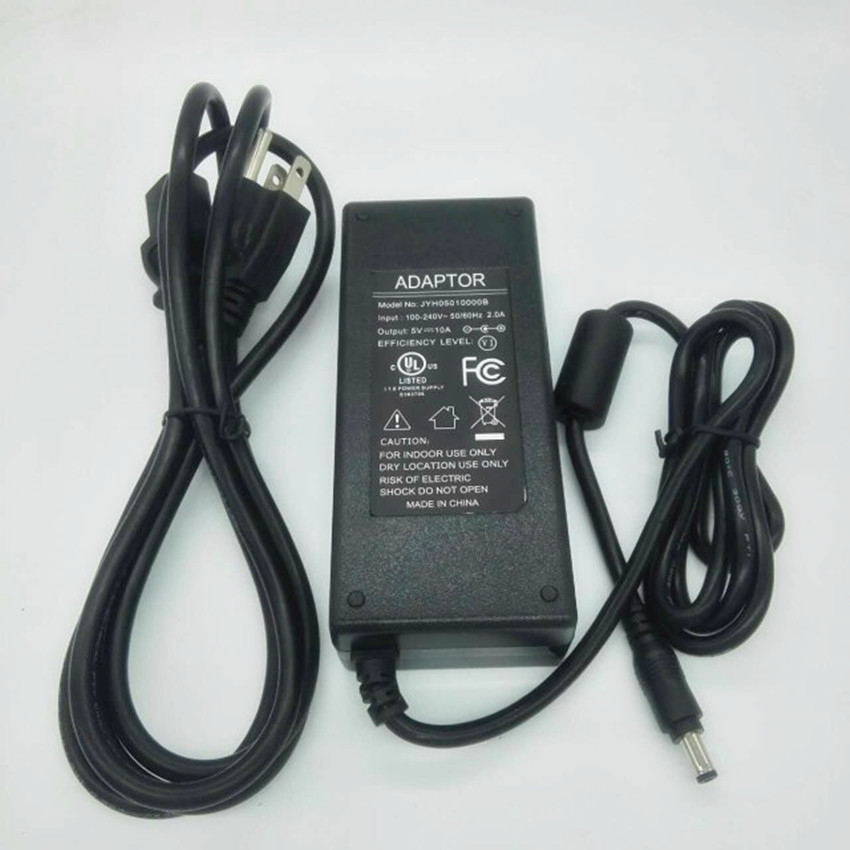

| Connection: | Desktop |
|---|---|
| Brand Name: | WOAJEPU |
| WARRANTY: | 1 YEAR |
| Color: | Black,white |
| Model Number: | JYH32-05010000 |
| Place of Origin: | China (Mainland) |
| Input Voltage: | 100-240VAC |
| Output: | 5V 10A |
| DC Connector: | 5.5*2.1/2.5*10mm(Straight plug or Angled Plug) |
| DC Cable: | 1.2,1.5,1.8m |
Quick Details
Specifications
Features:
Universal AC input / Full range
Protections: Short circuit / over current / over voltage
Cooling by free air convection
Small and compact size
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
SPecification:
Model |
JYH05010000B | |
Output |
VOltage |
100-240VAC |
Output |
5VDC | |
CUrrent |
10A | |
Power(max.) |
50W | |
100mVp-p | ||
EFficiency |
80% | |
VOltage tolerance |
5.0% | |
LineRegulation |
1.0% | |
LOad regulation |
1.0% | |
SEtup,rise time |
100ms / 115VAC at full load | |
HOld up time |
30ms/115VAC at full load | |
Input |
VOltage range |
90 ~ 264VAC |
FRequency range |
47 ~ 63Hz | |
AC CUrrent(max.) |
1.5A/115VAC 1.2A/230VAC | |
INrush current(max.) |
COLD START 30A/115VAC 60A/230VAC | |
PRotection |
OVer current |
120% ~ 150% type; TYPE: cut output reset: automatic recovery |
OVer voltage |
120% ~ 150% type; TYPE: cut output reset: automatic recovery | |
SHort circuit |
TYPE: cut output reset: automatic recovery | |
ENvironment |
WOrking temp. |
0~ 40 |
WOrking humidity |
20% ~ 80% R.HNon-condensing | |
STorage temp.,humidity |
-20~ 70 20% ~ 90% R.H | |
Safety &EMC |
DIelectricSTrengthHi-Pot |
Primary to secondary:3000Vac 10mA; Primary to shell:1500Vac 10mA; shell to secondary:1500Vac 10mA |
INsulation resistance |
Primary to secondary, Primary to shell, shell to secondary;>100M Ohms / 500VDC | |
LEaking current |
0.25mA / 240VAC | |
SAfety standard |
UL GS SAA KCC BSI PSE CCC | |
EMC STandards |
CE EN55022B FCC | |
GReen mode |
Noload Power Consumption Less Than 0.3W | |
Others |
MTBF |
50000hrs min. MIL-HDBK-217F (25 ) |
DImension |
114*50*35.5mm (L*W*H) | |
Weight |
170g/pcs | |
