| Model Number: | SYS10 |
|---|---|
| Brand Name: | SATEN |
| Place of Origin: | China (Mainland) |
| Dimentsion: | 2.52*1.15*1.81m |
| Gradeability: | 25% |
| Lifting speed: | 10-14m/min |
| Travel speed: | 0-3.2km/h |
| Power source: | 24V-220Ah |
| Weight: | 3140kg |
Quick Details
Specifications

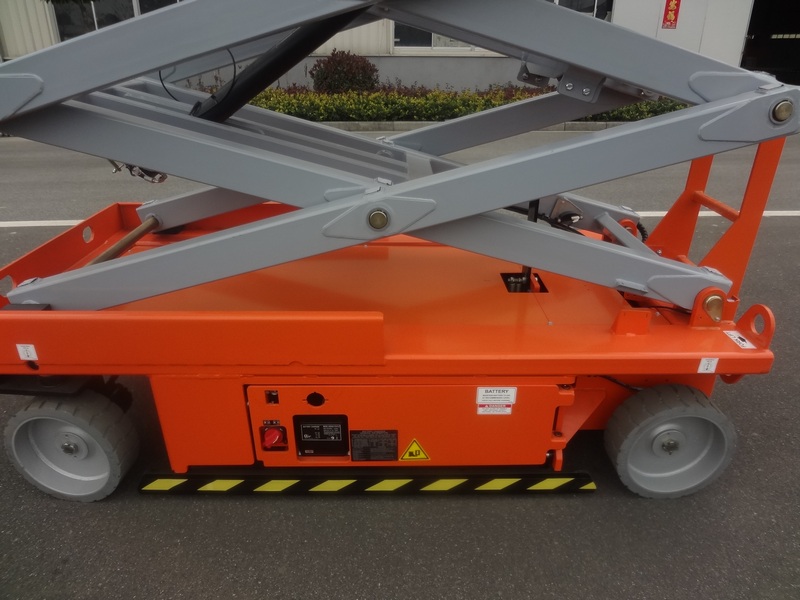

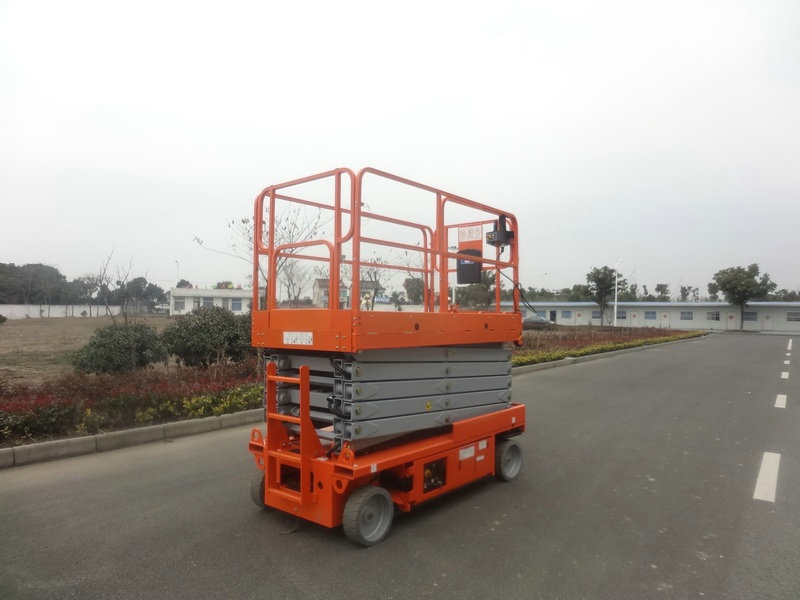

Models of the Self-propelled Scissor Lift Platform:
|
Model |
SYS06 |
SYS08 |
SYS10 |
|
Working height |
7.8m |
10m |
12m |
|
Lift capacity |
228kg |
450kg |
318kg |
|
Platform height |
5.8m |
8m |
10m |
|
Platform size |
1.55mx0.75m |
2.25mx1.15m |
2.25mx1.15m |
|
Height (stowed) (m) |
1,65m |
1.95m |
1.81m |
|
Width (m) |
0,76m |
1.15m |
1.15m |
|
Length (m) |
1,9m |
2.52m |
2.52m |
|
Gradeability (%) |
25% |
25% |
25% |
|
Lifting speed |
10-14m/min |
10-14m/min |
10-14m/min |
|
Travel speed |
0-3.2km/h |
0-3.2km/h |
0-3.2km/h |
|

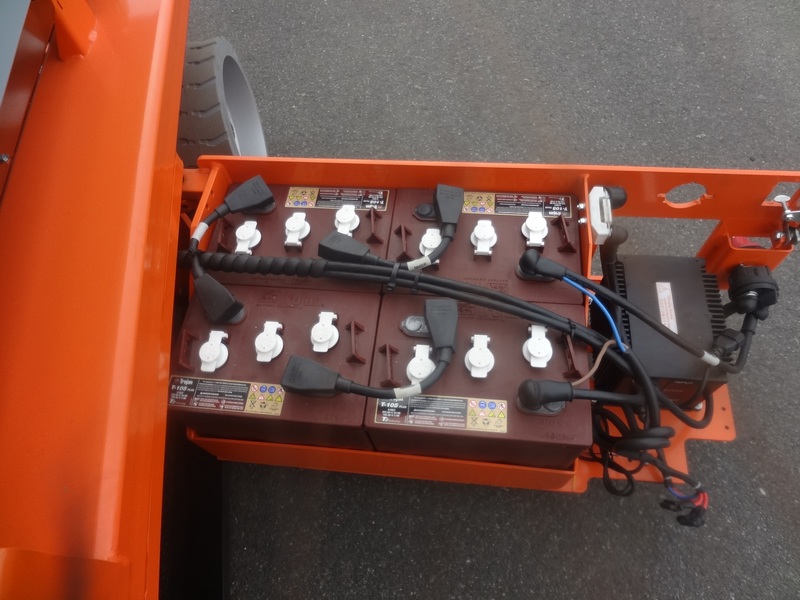

Power source |
24V - 220Ah |
24V-220Ah |
24V-220Ah |
|
Weight (kg) |
1,600kg |
2380kg |
3140kg |
Features of the lift:
1)Tilt sensor;
2)Proportional control;
3)Secondary emergsncy stop button mounted on base;
4)Platform overload and pressure loss valves as standard;
5)Emergency platform lowering mechanism;
6)Pull out storage drawer for cables and guardrail tools;
7)Wide forklift entry and transit strap points;
8)Smooth roll castors with non marking tyres;
9)Hole protection; Fault alarm system.
