| Connection: | Desktop |
|---|---|
| Brand Name: | JP |
| WARRANTY: | 2 years |
| Color: | Black |
| Model Number: | JYH32-2404000 |
| Place of Origin: | China (Mainland) |
| Input Voltage: | 100-240VAC |
| DC Connector: | 5.5*2.1/5.5*2.5 |
| Warranty: | 1 year |
| Size: | 114*50*35.5MM |
| Certificate: | CE/UL/FCC/SAA/GS/C-TICK |
Quick Details
Specifications

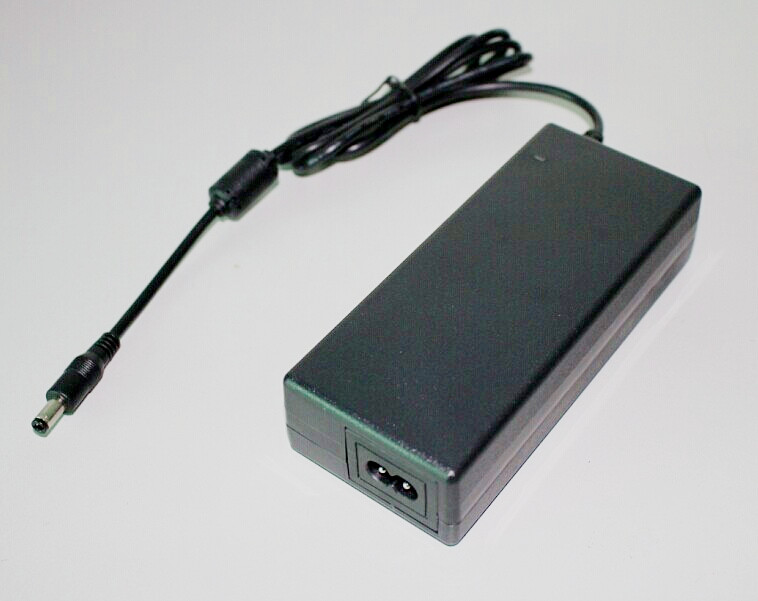

Model:JYH32-2404000
Features:
Universal Input range: 90-264V/AC
Efficiency to 85%
Continuous short circuit protection
over voltage/current protection
No load input power: <0.3W
Leakage current: <0.1mA
UL60950-1/EN60950-1 approved
AC inlet:IEC320/C8/C14
Meets CEC and Erp level VI
(Output cable length: 1800mm, 18AWG)
24V 4A
Power(max):96W
Ripple & noise (max.):100mVp-p
EFficiency:85%
VOltage tolerance:5.0%
Line Regulation:1.0%
LOad regulation:1.0%
Setup time:100ms / 115VAC at full load
HOld up time:30ms/115VAC at full load
Input:
Input voltages: 90~264V AC
Frequency range: 47~63Hz
AC Current (max.): 1.5A/115VAC 0.8A/230VAC
Inrush current(max.):COLD START 30A/115VAC 60A/230VAC
Protection:
over voltage protection/over current protection/Short circuit
ENvironment:
Working temperatures: 0 ~ 40
Storage temperatures: -20 ~ 70
Working humidity:20% ~ 90% R.H non-condensing
Safety &EMC:
SAfety standard:UL GS SAA KCC BSI PSE CCC
EMC STandards:CE EN55022B FCC
GReen mode:Noload Power Consumption Less Than 0.3W
MTBF:50000hrs min. MIL-HDBK-217F (25 )
DImension:115*50*35.5mm&119*52*32mm (L*W*H)
Weight:200g/pcs
