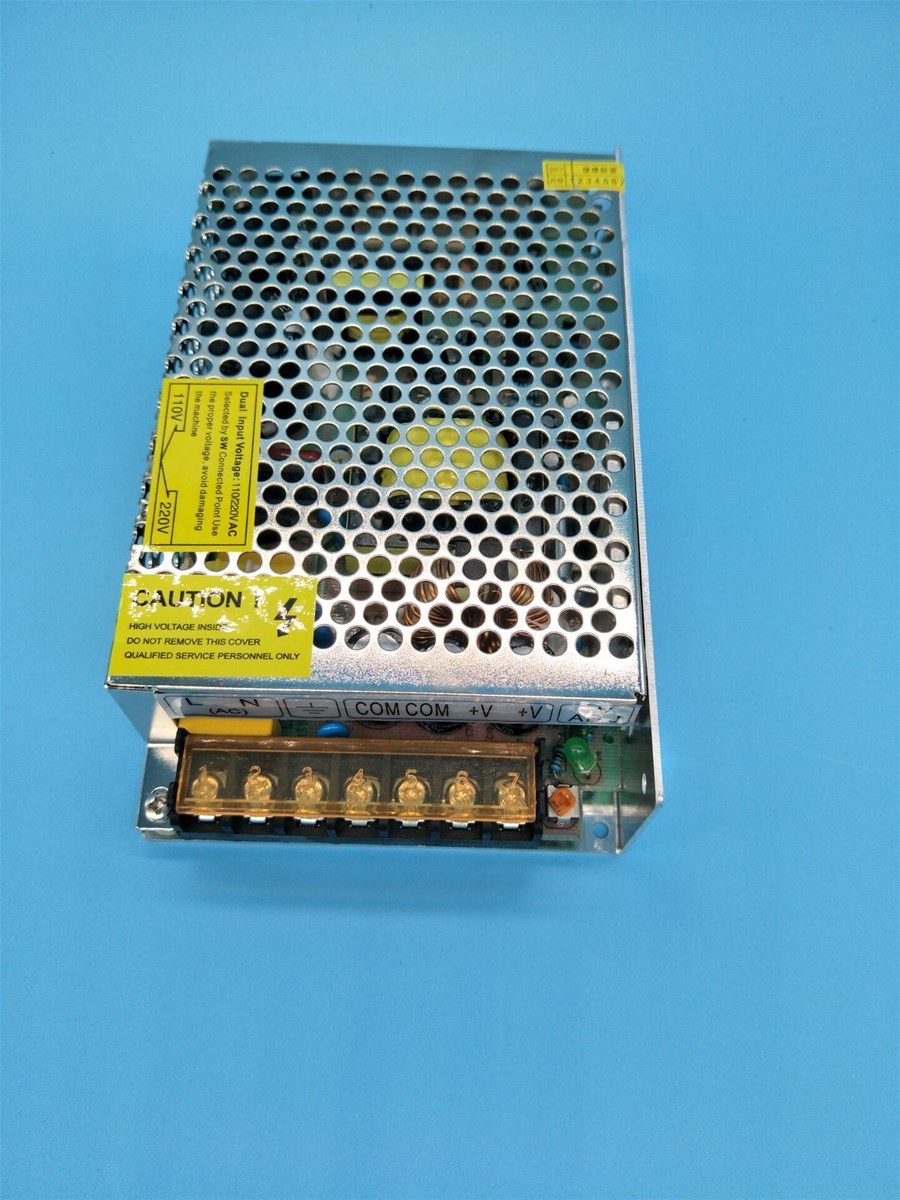

Quick Details
| Output Current:
|
5A
|
| Output Power:
|
3956-51 - 100W
|
| Output Voltage:
|
24V
|
| Input Voltage:
|
2475-110V
|
| Brand Name:
|
JP
|
| Output Frequency:
|
50~60Hz
|
| Model Number:
|
JP-100W24V
|
| Place of Origin:
|
China (Mainland)
|
| Output Type:
|
Single
|
Specifications
- Input specifications:
- Input voltages: AC 85-264V
- Input frequencies: 50-60Hz
- Input impulse currents: 30A/115V, 60A/230V
- Input currents:
- P≤100W: 2A/115V 1A/230V
- 101W - 200W: 3A/115V, 1.5A/230V
- 201W - 400W: 5A/115, 2.5A/230V
- Output specifications:
- Output voltage: 24VDC
- Voltage regulation: (Full load) 5%
- Output voltage can be adjusted: ±10%
- Wave and noise: 120mVp-p
- Efficiency: 85%
- Output current: 5A
- Output power: 100W
- Protection functions:
- over-voltage protection range: 105% - 150% of the rated voltage
- over-current protection range: 105% - 150%
- under-voltage protection: under 80%
- Protection level (waterproof level): 20
- Rainproof level: 60
- Insulation intensities:
- Input-output: 2,000V AC/min
- Input-ground: 1,500V AC/min
- Output-ground: 500V AC/min
- Isolation resistance:
- Input-output: 500V DC-100mΩ
- Environmental conditions:
- Temperature coefficient: 0.01%(0-50°C)
- Humidity coefficient: 0.01% / (20% - 90% RH)
- Working temperatures and humidity range: -20-60°C/20-90%RH
- Storage temperatures and humidity range: -40-85°C/10-95%RH
- Height above sea level: leq2000m
- Fan: without fan, natural cooling air convection
- Vibration: 10-500Hz, 2G 10min/1 cycle, period for 60min, each axes
- Safety standards:
- in accordance with GB4943, UL60950-1 and EN60950-1 standards
- EMC standards:
- in accordance with GB9254, EN55022 class A: EN61347-2-13:2008 standards
- Size: 160(L)*100(W)*42(H)mm
- Weight: 370g/pcs
- Package: 100pcs/box
