Quick Details

Condition:	Used
Model Number:	zx120
Brand Name:	hitachi
Place of Origin:	Japan

Specifications

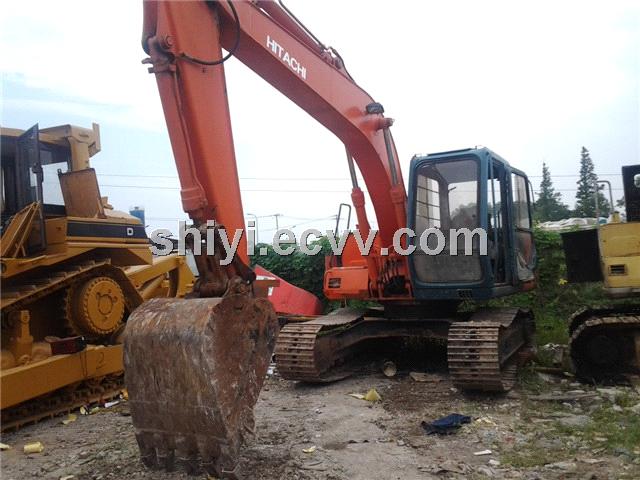

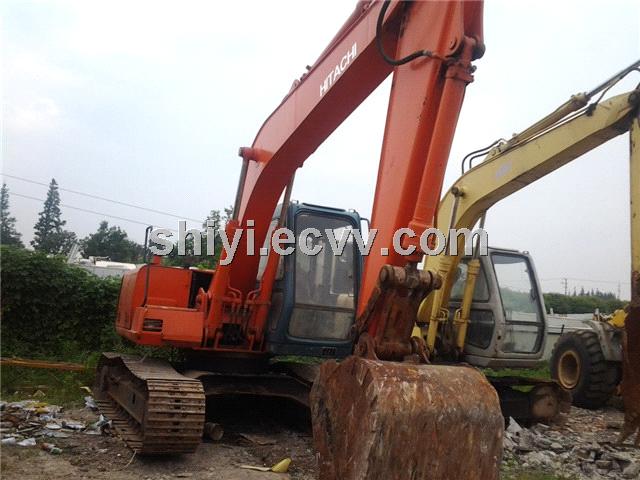

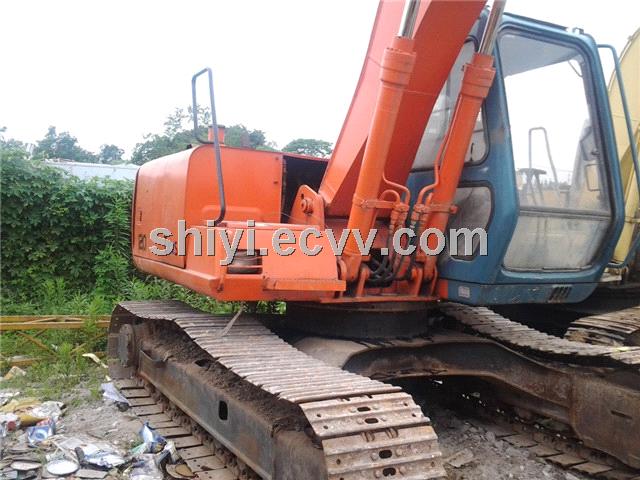

used hitachi excavator zx120 on sale

Specification

Engine

Make Isuzu

Model CC-4BG1TC

Net Power 88 hp 65 kw

Power Measured @ 2150 rpm

Displacement 264 cu in 4.3 L

Torque Measured @ 1600 rpm

Max Torque 253 lb ft 343 Nm

Aspiration Turbocharged, intercooled

Number of Cylinders 4

Operational

Operating Weight 27600 lb 12500 kg

Fuel Capacity 66 gal 250 L

Cooling System Fluid Capacity 5 gal 19 L

Hydrauilc System Fluid Capacity 34.3 gal 130 L

Engine Oil Capacity 4.2 gal 15.8 L

Swing Drive Fluid Capacity 0.85 gal 3.2 L

Operating Voltage 24 V

Alternator Supplied Amperage 50 amps

Hydraulic System Relief Valve Pressure 4980 psi 34335.9 kPa

Hydraulic Pump Flow Capacity 55.5 gal/min 210 L/min

Swing Mechanism

Swing Speed 13.7 rpm

Undercarriage

Number of Shoes per Side 44

Shoe Size 27.6 in 700 mm

Number of Carrier Rollers per Side 1

Number of Track Rollers per Side 7

Ground Pressure 4.1 psi 28.4 kPa

Max Travel Speed 3.4 mph 5.5 km/h

Track Gauge 6.5 ft in 1990 mm

Buckets

Reference Bucket Capacity 0.65 yd3 0.5 m3

Minimum Bucket Capacity 0.25 yd3 0.19 m3

Maximum Bucket Capacity 0.86 yd3 0.66 m3

Boom/Stick Option (HEX) 1

Boom/Stick Option (HEX) 1 Boom 15ft 1in (4600mm)/Stick 6ft 11in (2100mm)

Shipping Height of Unit 9 ft in 2740 mm

Shipping Length of Unit 25 ft in 7610 mm

Max Digging Depth 16.9 ft in 5150 mm

Max Reach Along Ground 25.5 ft in 7770 mm

Max Cutting Height 27.5 ft in 8370 mm

Max Loading Height 19.6 ft in 5960 mm

Max Vertical Wall Digging Depth 15.3 ft in 4650 mm

Boom/Stick Option (HEX) 2

Boom/Stick Option (HEX) 2 Boom 15ft 1in (4600mm)/Stick 8ft 3in (2520mm)

Shipping Height of Unit 9 ft in 2740 mm

Shipping Length of Unit 25 ft in 7610 mm

Max Digging Depth 18.3 ft in 5570 mm

Max Reach Along Ground 26.7 ft in 8140 mm

Max Cutting Height 28.1 ft in 8570 mm

Max Loading Height 20.2 ft in 6160 mm

Max Vertical Wall Digging Depth 16.5 ft in 5020 mm

Boom/Stick Option (HEX) 3

Boom/Stick Option (HEX) 3 boom 15ft 1in (4600mm) w/stick 9ft 11in (3010mm)

Shipping Height of Unit 9 ft in 2740 mm

Shipping Length of Unit 25 ft in 7620 mm

Max Digging Depth 19.9 ft in 6060 mm

Max Reach Along Ground 28.3 ft in 8620 mm

Max Cutting Height 29.2 ft in 8900 mm

Max Loading Height 21.3 ft in 6490 mm

Max Vertical Wall Digging Depth 18 ft in 5500 mm

Dimensions

Width to Outside of Tracks 8.8 ft in 2690 mm

Height to Top of Cab 9 ft in 2740 mm

Ground Clearance 1.4 ft in 440 mm

Counterweight Clearance 2.9 ft in 890 mm

Tail Swing Radius 7 ft in 2130 mm

Length of Track on Ground 9.4 ft in 2880 mm

Product Stock List

Loader

Cat

910E 910F 924F 926E 928G 936E 936F 938F 938G 950 950B 950E 950F 950G

960F 962G 966C 966D 966F 966F-II 966G 966H 980C 980F 980G 988B

Komatsu

WA100 WA200 WA300 WA320 WA350 WA360 WA380 WA380-3 WA400 WA420 WA450 WA470 WA470-3 WA600-1 WA600-3

Kawasaki

Kld50z kld65z kld70b kld70z kld80z kld85z kld90z

Bulldozer

Cat

D3C D4H D4K D5H D5M D5M-XL D5M-LGP D5N D5G D6C D6D D6H D6H-LGP D6H-II

D6G D6G-II D6R D6M D7G D7H D7H-II D7R D8N D8L D8R D8K

Komatsu

Komatsu D60 D65 D85-18 D85a-21 D155a-1 D155A-2 D155A-3

Motor Grader

Cat

12G 120G 120H 14G 140G 140H 16G 140K

Motor Grader 12G 12H 120G 14G 16G 140G 140H 140K

Komatsu

Komatsu GD405 GD511A GD605R GD605R-2 GD623A-1 GD611A-1 GD705

Komatsu Mortor Grader:GD37-6 GD405 GD511 GD623 GD605 GD705 GD805

Champion:740a 720a Dresser 850 870

Roller

Dynapac CA25D CA30D CA25PD CA30PD CA251 CA300D CA300 CA301D CA302D CA602D CC422 CC522 CC622

Dynapac Road Roller:CC21 CC42 CC25 CC522 CA251 CA300 CA25D CD30D CA251 CA302 CA25PD CA30PD

Bomag BW213D BW217D BW217D-2 BW219D-2 BW219 BW219-3 BW202 BW24 BW225

Bomag Road Roller:BW219D BW217D BW213D BW225

Cat CS533 CB564D

Excavator

CAT 307B 307C 311B 311C 312C 315 320 320B 320BL 320C 320CL 320D 320L 325B 325BL 325C 325CL 330 330B 330BL 330C 330CL 330D

345B 345C 345D 365C 385B E200

KOMATSU: PC100-3 PC120-6 PC130-7 PC200-5 PC200-6 PC200-7 PC200-8 PC210 PC220-6 PC220-7 PC220-8 PC300 PC360-7 PC400 PC450-7

HITACHI EX100 Ex200-1 Ex200-3 EX200-5 Ex200-6 EX300 ZX210 ZX230 ZX250 ZX300

KOBELCO,KATO,

SUMITOMO 120A3,

HYUNDAI,DOSAN,

Crane

Tadano TG250E TL250E TG350E TL350E TG400E TG500E TG750E TG1000E TG1200E GT550E GT550E-III GT-500E GT650E GT650E-III

TR250M TR250M-VI TR300M TR500M TR450M

Tadano truck crane TG250E TG300E TR300 TG450E TG500E GT550E TG650E TG800E

NK200BE NK250E NK300 NK350 NK-400E NK-450E NK500E NK800E NK-1000 NK1200 NK1600

KR25 KR25H-III KR250 KR450 SS500 Kobelco RK250 RK500

Kato truck crane KR-25H NK350 NK400E-III NK-500E NK500EVR NK-800E

HITACHI KH100 KH125-3 KH150-3 KH180 KH180-3 KH300 KH700 KH1000

KOBELCO 7055 5055 5150 7150

SUMITOMO P&H link-belt IHI 35T--1000

Engine
Make	Isuzu
Model	CC-4BG1TC
Net Power	88 hp	65 kw
Power Measured @	2150 rpm
Displacement	264 cu in	4.3 L
Torque Measured @	1600 rpm
Max Torque	253 lb ft	343 Nm
Aspiration	Turbocharged, intercooled
Number of Cylinders	4
Operational
Operating Weight	27600 lb	12500 kg
Fuel Capacity	66 gal	250 L
Cooling System Fluid Capacity	5 gal	19 L
Hydrauilc System Fluid Capacity	34.3 gal	130 L
Engine Oil Capacity	4.2 gal	15.8 L
Swing Drive Fluid Capacity	0.85 gal	3.2 L
Operating Voltage	24 V
Alternator Supplied Amperage	50 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	55.5 gal/min	210 L/min
Swing Mechanism
Swing Speed	13.7 rpm
Undercarriage
Number of Shoes per Side	44
Shoe Size	27.6 in	700 mm
Number of Carrier Rollers per Side	1
Number of Track Rollers per Side	7
Ground Pressure	4.1 psi	28.4 kPa
Max Travel Speed	3.4 mph	5.5 km/h
Track Gauge	6.5 ft in	1990 mm
Buckets
Reference Bucket Capacity	0.65 yd3	0.5 m3
Minimum Bucket Capacity	0.25 yd3	0.19 m3
Maximum Bucket Capacity	0.86 yd3	0.66 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1	Boom 15ft 1in (4600mm)/Stick 6ft 11in (2100mm)
Shipping Height of Unit	9 ft in	2740 mm
Shipping Length of Unit	25 ft in	7610 mm
Max Digging Depth	16.9 ft in	5150 mm
Max Reach Along Ground	25.5 ft in	7770 mm
Max Cutting Height	27.5 ft in	8370 mm
Max Loading Height	19.6 ft in	5960 mm
Max Vertical Wall Digging Depth	15.3 ft in	4650 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2	Boom 15ft 1in (4600mm)/Stick 8ft 3in (2520mm)
Shipping Height of Unit	9 ft in	2740 mm
Shipping Length of Unit	25 ft in	7610 mm
Max Digging Depth	18.3 ft in	5570 mm
Max Reach Along Ground	26.7 ft in	8140 mm
Max Cutting Height	28.1 ft in	8570 mm
Max Loading Height	20.2 ft in	6160 mm
Max Vertical Wall Digging Depth	16.5 ft in	5020 mm
Boom/Stick Option (HEX) 3
Boom/Stick Option (HEX) 3	boom 15ft 1in (4600mm) w/stick 9ft 11in (3010mm)
Shipping Height of Unit	9 ft in	2740 mm
Shipping Length of Unit	25 ft in	7620 mm
Max Digging Depth	19.9 ft in	6060 mm
Max Reach Along Ground	28.3 ft in	8620 mm
Max Cutting Height	29.2 ft in	8900 mm
Max Loading Height	21.3 ft in	6490 mm
Max Vertical Wall Digging Depth	18 ft in	5500 mm
Dimensions
Width to Outside of Tracks	8.8 ft in	2690 mm
Height to Top of Cab	9 ft in	2740 mm
Ground Clearance	1.4 ft in	440 mm
Counterweight Clearance	2.9 ft in	890 mm
Tail Swing Radius	7 ft in	2130 mm
Length of Track on Ground	9.4 ft in	2880 mm
