| Type: | Inkjet Printer |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Weight: | 190kg |
| Dimensions(L*W*H): | 1220mm*850mm*880mm |
| Gross Power: | 75 W/ Hour |
| Voltage: | 110/220V |
| Color & Page: | Multicolor |
| Automatic Grade: | Automatic |
| Usage: | multi-function flatbed printer |
| Model Number: | ES-UMHA2C8S |
| Brand Name: | Esshion |
| Place of Origin: | China (Mainland) |
| Plate Type: | Flatbed Printer |
| Condition: | New |
| Color: | 8 colors |
| Max. Printing size: | 400mm * 950mm |
| Max. Printing Height: | 125 mm |
Quick Details
Specifications
Product Info
Product Features

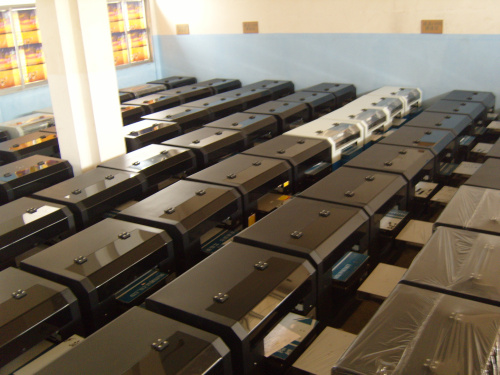

Factory
This printer can be used for printing of almost all kinds of material, like CD, Card, Pen, Golf Ball, Phone Case, USB, Glass, Plastics, Acrylic, PVC, Leather, Marble, Metal, Wood, Bottle etc.
Product Features
- Ball screw Y axis
- Imported LED light, extra-long life-span
- RIP software support emboss effect printing
- Environmental protection type UV ink
- Printer main engine lift and printing platform movement
- PLC and full-digital stepper system and text screen
- Outstanding print quality and reliability
- Space-saving compact desktop design
- Max printing thickness up to 125 mm
|
Printing method |
Micro PIEZO Technology |
|
Nozzle Number |
1440 |
|
Max print size |
400mm * 950mm |
|
Max Print thickness |
125 mm |
|
Printer head |
EPSON 4880 |
|
Print resolution |
2880*1440 dpi |
|
Printing speed |
4.5m2/h (720*720dpi); 7.8m2/h (360*360dpi) |
|
Printing method |
Continuous Production |
|
Max Media weight |
200 KG |
|
Operating system |
Windows 95/98/XP/ME/Vista/NT/MAC |
|
Interface |
USB 2.0 Ethernet 100BASE-TX/10 |
|
Languages |
English, Chinese. |
|
Ink colors |
8 colors, C,M,Y,K, LC,LM, W,W or C,M,Y,K,W,W, W,W |
|
Ink type |
UV ink |
|
Printing Direction |
Smart Bi-directional Printing Mode |
|
Height Adjustment |
Automatic & manual. |
|
Driving Power |
110 V/ 220 V. |
|
Power consumption |
75 W/ Hour. |
|
Working environment |
5-35 degrees. |
|
Software |
Photoshop, CorelDraw, Illustrator, RIP |
|
Package type |
Wooden box |
|
Machine size L*W*H |
1220mm*850mm*880mm |
|
Package size L*W*H |
1300mm*900mm*920mm |
|
Net Weight |
125kg |
|
Gross Weight |
190kg |
