| Voltage: | 110-220V |
|---|---|
| Rated Power: | 9W |
| Model Number: | UVC-H9H12*167-G23 |
| Brand Name: | GMY |
| Place of Origin: | China (Mainland) |
| Power: | 9W |
| Current: | 185mA |
| Diameter: | 12mm |
| Length: | 167mm |
| Base: | G23 |
| Av.life: | 8000 |
Quick Details
Specifications
UV Lamp in H Type,Single-end 2pins,high-purity Quartz tube, average life UPS to 8,000h
Warning

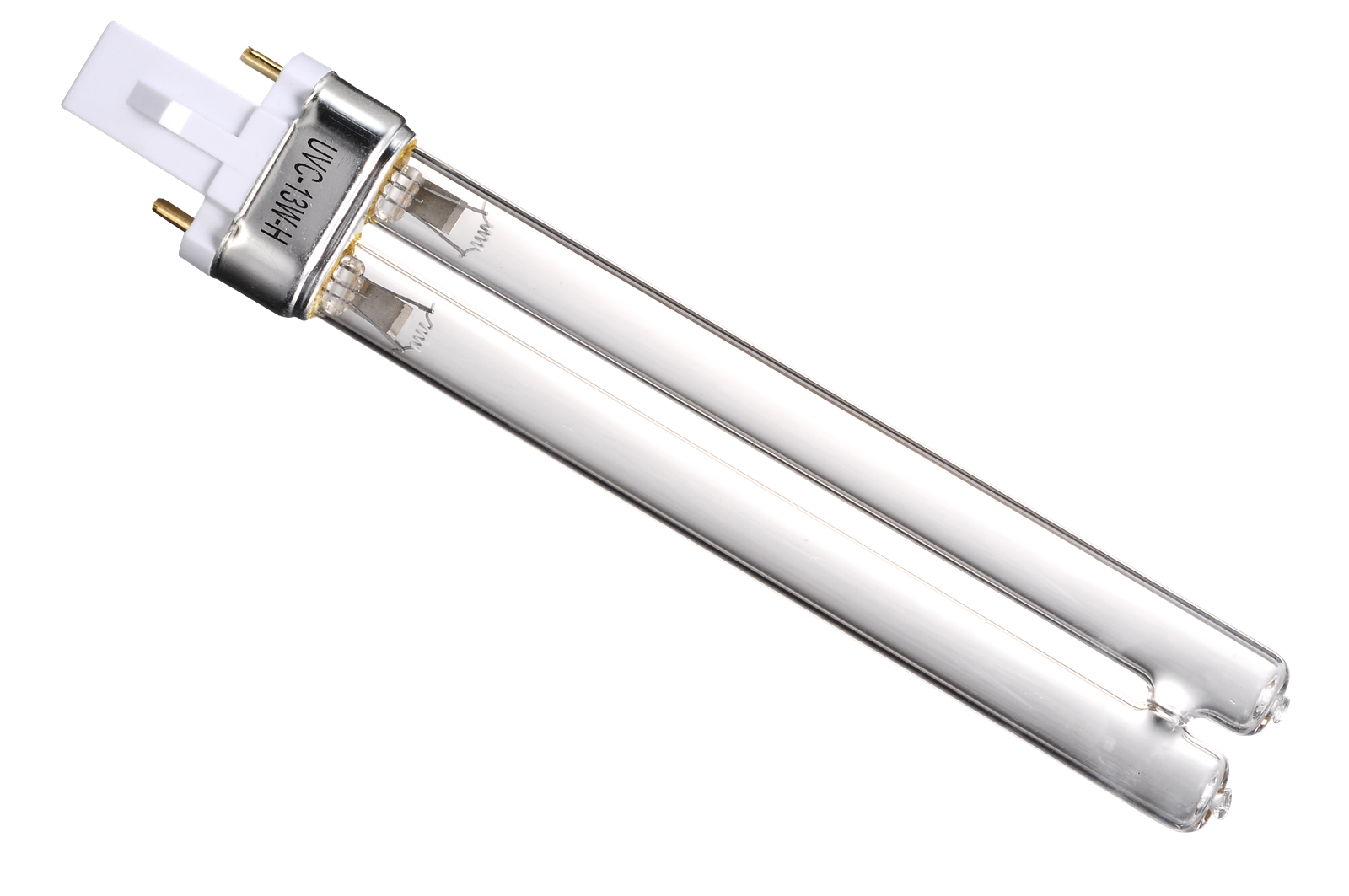

. Single-ended H shape UV germicidal lamps
Key Specifications:
- Adopts high-purity quartz tube, through special process to reduce the content of impurity
- Add electron powder into lanthanum to produce higher efficiency
- Unique technique for exhaust enables the initial ultraviolet radiation with high intensity and low light declining
- Ozone and ozone-free types are available
- Universal burning position
Special Features:
- 110V or 220V starter and capacitor inside
- Only capacitor needed by using electronic ballast
- High wattages can be made, high density ozone disinfects big area
- Reflector or reflector plate matched
- More compact, easy to install
Applications:
Medical disinfection and air clean, deodorization and bactericide aquarium UV sterilizers.
UV technology for common bacteria and viruses the sterilization efficiency (the intensity of the UV radiation 30mW/cm2)
Species |
Name |
Kill 100% of the time required (in seconds) |
Species |
Name |
Kill 100% of the time required (in seconds) |
Bacteria |
Bacillus anthracis |
0.30 |
Bacteria |
Tuberculosis (branch) bacilli |
0.41 |
Diphtheria bacillus |
0.25 |
Vibrio cholerae |
0.64 | ||
Clostridium tetani |
0.33 |
Pseudomonas sp. |
0.37 | ||
Clostridium botulinum |
0.80 |
Salmonella spp. |
0.51 | ||
Shigella |
0.15 |
Intestinal fever genus |
0.41 | ||
E. Coli |
0.36 |
Salmonella typhimurium |
0.53 | ||
Virus-like |
Adenovirus |
0.10 |
Virus-like |
Influenza virus |
0.23 |
Phage syncytial virus |
0.20 |
Poliovirus |
0.80 | ||
Coxsackie virus |
0.08 |
Rotavirus |
0.52 | ||
Love Ke virus |
0.73 |
Tobacco mosaic virus |
16 | ||
the Love Ke virus type I |
0.75 |
Hepatitis B virus |
0.73 | ||
Mildew Spore |
Aspergillus niger |
6.67 |
Mildew Spore |
Soft spores |
0.33 |
Aspergillus spp. |
0.73-8.80 |
Penicillium |
2.93-0.87 | ||
Dung fungi |
4.0 |
Toxigenic Penicillium |
2.0-3.33 | ||
Mucor |
0.23-4.67 |
Penicillium other fungi |
0.87 | ||
Water algae
|
Blue-green algae |
10-40 |
Water algae |
Paramecium genus |
7.30 |
Chlorella |
0.93 |
Green algae |
1.22 | ||
Nematode eggs |
3.40 |
Protozoan genus |
4-6.70 | ||
Fish disease |
Fung1 disease |
1.60 |
Fish disease |
Infectious pancreatic necrosis disease |
4.0 |
Leukoplakia |
2.67 |
Viral hemorrhagic |
1.6 |
Warning
Don't look at the UV lamp directly when the UV lamp is igniting. Don't irradiate the skin with UV-lamp. Hold a piece of ordinary glass before your eyes when you need to look at the UV-lamp. Please keep the surface of the tube clean to prevent the dust or the dirt from affecting the ultraviolet ray's output. Please don't touch the quartz glass with bare hands while installing the lamp and using it. the quartz glass can be cleaned by using alcohol tampon.
