| Item Type: | Downlights |
|---|---|
| Light Source: | LED |
| Brand Name: | Greenough |
| Place of Origin: | China (Mainland) |
| Model Number: | GNH-AC-D70-I-6W |
| Certification: | CE,RoHS |
| IP Rating: | IP44 |
| Lamp Body Material: | Aluminum Alloy |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | 2700-6000K |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 80 |
| Lamp Luminous Flux(lm): | 380-520 |
| Lamp Power(W): | 6 |
| Input Voltage(V): | AC 110-120V/AC 220-240V |
| Warranty(Years): | 4 |
| LED Light Source: | Samsung AC COB LED |
Quick Details
Specifications
Specification for AC led down light
*No driver thus it can avoid the failure of driver
*Dimmable matching different dimmer control. like PMW, Silicon controlled rectifier etc almost 85%dimmer
*Scientific thermal design, longer life span
*AC LED technology makes LEDs work directly by AC220-240V without any driver, we call it driver-free light. These LEDs can be connected directly to normal power supplies (usually 230V at 50HZ).
*Original Samsung AC COB, low life decaying rate
*Clean and pure light effect, energy saving
*Warranty : 4 years
Packing Details for 6w driverless led down light
*No driver thus it can avoid the failure of driver
*Dimmable matching different dimmer control. like PMW, Silicon controlled rectifier etc almost 85%dimmer
*Scientific thermal design, longer life span
*AC LED technology makes LEDs work directly by AC220-240V without any driver, we call it driver-free light. These LEDs can be connected directly to normal power supplies (usually 230V at 50HZ).
*Original Samsung AC COB, low life decaying rate
*Clean and pure light effect, energy saving
*Warranty : 4 years
|
Model |
GNH-AC-D70-I-6W |
|
Power |
6W |
|
Dimension |
Φ80*H46mm |
|
Cut-out hole |
70mm |
|
Lighting Source |
Samsung AC COB |
|
LED Qty |
1PC |
|
Voltage |
AC 110-120V/AC 220-240V |
|
Material |
6063 Aluminum |
|
Color temperature |
2700/3000K/4000K/5000K/6000K |
|
Luminous flux |
380LM ±5%;400LM ±5%;480LM ±5%;520LM ±5% |
|
Luminous Efficacy |
65lm/w;70lm/w;80lm/w;85lm/w |
|
CRI |
83Ra;80Ra;78Ra |
|
Beam Angel |
38°/60° |
|
Lumen Attenuation |
1000hrs <0.5% |
|
Life Span |
50,000hrs |
|
Part No. |
Packing Box |
Outer Carton |
Gross Weight |
Net weight |
|
GNH-AC-D70-I-6W |
100*100*66mm |
520*220*366mm50pcs/carton |
10.6KGS/CTN |
9.2KGS/CTN |

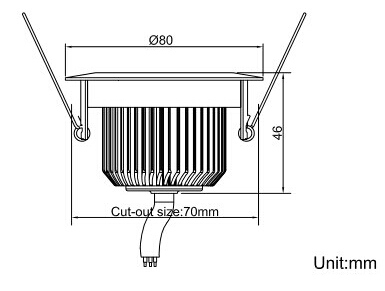

DiDDimensional Drawing(Unit:mm)
Brightness Contrast:
Applications for Greenough led down light: Hotels, Hospitals , Commercial Complexes, Conference / Meeting rooms,
Factories & Offices, Residential / Institution Buildings, Schools etc
Brightness Contrast:
Applications for Greenough led down light: Hotels, Hospitals , Commercial Complexes, Conference / Meeting rooms,
Factories & Offices, Residential / Institution Buildings, Schools etc
