Hexagonal Gabion For Flood and River Control

The stone cage can be divided into welded gabion box and woven gabion box (hexagonal gabion box) according to the different technology. Actually, the welded gabion box is stronger than the hexagonal gabion box.

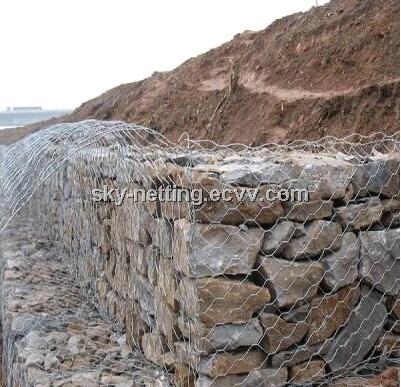

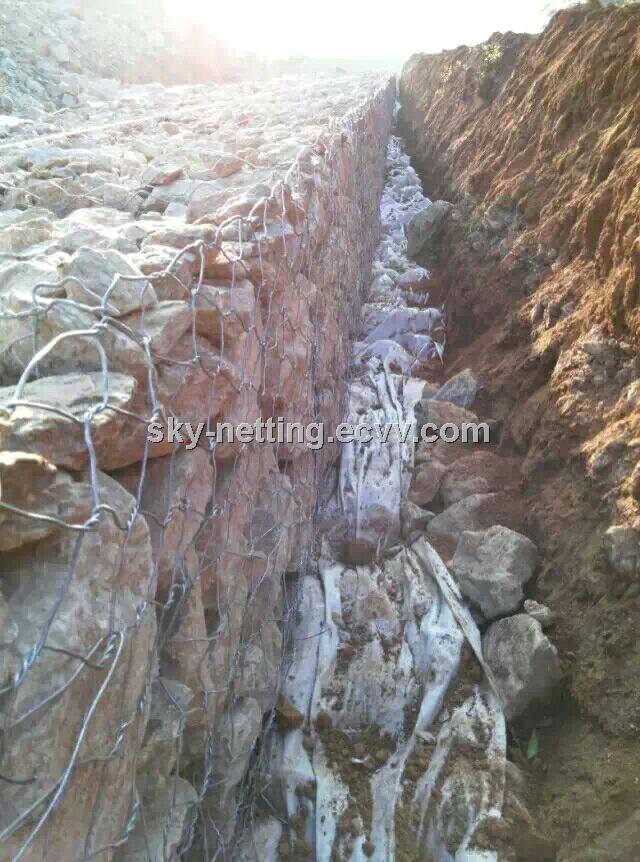

Our gabion is a rectangular wire mesh box made from double twisted hexagonal mesh of steel wire, additionally reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms. These mesh boxes are delivered to site flat-packed, whereupon they are assembled, lifted into position, and filled with durable rock. The modular nature of the gabion means that it can be used in a vast array of applications and configurations. Woven units can also be easily amended on site and shaped to suit project requirements.

Controlling and leading the river and flood;Flood discharge and lead flow;rock fall defending;preventing the water and soil lost;protecting the bridge;reinforce fabric;seashore recovery project;seaport project;block wall;defending the road side

Standard sizes of gabion boxes
Size(m)		Mesh Size		Wire Diameter
1.0×1.0×1.0		80x100mm 100x120mm 120x150mm		2.7mm/3.4mm 3.0mm/3.9mm 3.2mm/4.1mm
1.5×1.0×1.0
2.0×1.0×1.0
3.0×1.0×1.0
4.0×1.0×1.0
1.5×1.0×0.5
2.0×1.0×0.5
3.0×1.0×0.5
4.0×1.0×0.5
2.0×1.0×0.5
Standard sizes of Reno Mattresses and jumbo gabions
Size(m)		mesh size		wire diameter
3.0×2.0×0.5		60x80mm		2.0mm/2.4mm 2.2mm/2.7mm 2.4mm/3.0mm
6.0×2.0×0.5
3.0×2.0×0.3
6.0×2.0×0.23
3.0×2.0×0.23
6.0×2.0×0.23
3.0×2.0×0.17
6.0×2.0×0.17
Other specifications can be made to order.
Detailed wire specification
Galvanized wire without PVC-U coating[1]			Galvanized wire with PVC-U coating[2]
Nominal Diameter	Tolerance		Nominal Diameter		Nominal Diameter
2.0	0.05		3.0		240
2.2	0.06		3.2		240
2.4	0.06		3.4		260
2.7	0.08		3.7		260
3.0	0.08		4.0		275
3.4	0.10		4.4		275
3.9	0.10		-		290
