| After-sales Service Provided: | No overseas service provided |
|---|---|
| Power(W): | 1.1kw |
| Brand Name: | tianhuan |
| CNC or Not: | Normal |
| Condition: | New |
| Weight: | 2400kg |
| Dimension(L*W*H): | 3900X700X1500 |
| Voltage: | 220V |
| Model Number: | T8120DX20 |
Quick Details
Specifications

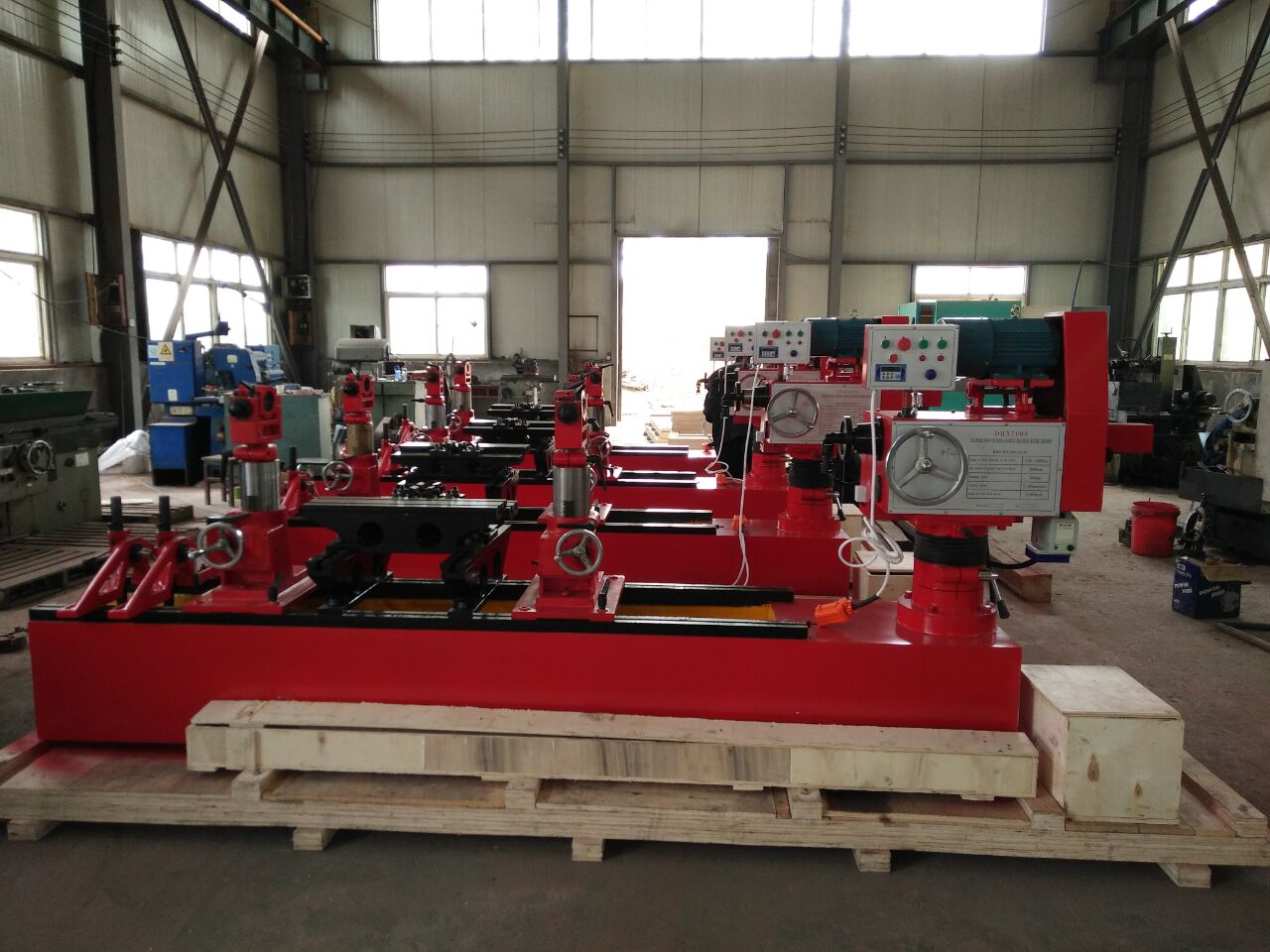

Cylinder Body Bushing Boring Machine ModelT8120DX20
It used for boring main shaft and camshaft bushing hole of the cylinder body.
Main technical parameters
It used for boring main shaft and camshaft bushing hole of the cylinder body.
Main technical parameters
| Model | T8120DX20 | T8120EX20 | T8120FX20 | T8125FX25 |
| Range of bored hole diameter | 36-200mm | 36-200mm | 36-200mm | 36-200mm |
| Max length of cylinder body | 2000 mm | 2000 mm | 2000 mm | 2500 mm |
| Main shaft max elongation | 300 mm | 300 mm | 1000mm | 1000mm |
| Main shaft rotating speed(rpm) | 200.275.360.480.720.960 | 200-960 | 200-960 | 200-960 |
| Feeding speed | 0-180mm/min | 0-180mm/min | 0-180mm/min | 0-180mm/min |
| Main motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Net weight of the machine | 2100kg | 2100kg | 2200kg | 2400kg |
| Overall dimension (L X W X H) | 3910X650X1410 mm | 3910X650X1410 mm | 5500X650X1850 mm | 6000X650X1850 mm |
