| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | ONE YEAR |
| Certification: | CE |
| Weight: | 165kg |
| Dimension(L*W*H): | 1300*1050*900mm |
| Power(W): | 3000W |
| Voltage: | 220V |
| Model Number: | NC-A6090 |
| Brand Name: | NIE-CUT |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Type: | MDF engraving machine |
Quick Details
Specifications
High Quality Cheap Advertisement CNC Router (NC-A6090)
Woodworking CNC Router features:
1. DSP control system
2. Size: 600*900mm
3. Cast iron
4. Plywood case
Woodworking CNC Router features:
1. DSP control system
2. Size: 600*900mm
3. Cast iron
4. Plywood case
NC-A6090 CNC Router Wood MDF Engraving Carving Machine
Features:
> High speed process: can process curves and straight lines simultaneously at the speed of 6m/min
> Massive memory capacity: standard allocation of 128M can save 9 files simultaneously for your choies
> Quick data transmission: adopt advanced USB interface, working without computer, not acuupy any resources
> Convenient operation: owing the function of restoring from power-off, continuation on break point, anticipate working time, auto-feeding blades, user-friendly designing
Parameters:
|
NO.
|
Discription
|
Parameter
|
|
1
|
X, Y,Z Working Area
|
600x900x120mm
|
|
2
|
Table Size
|
720X1135mm
|
|
3
|
X, Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
4
|
X, Y,Z repositioning Positioning Accuracy
|
±0.05mm
|
|
5
|
Lathe Structure
|
Cast Aluminum
|
|
6
|
X, Y Structure
|
Shaft Linear Bearings and Ball Screw
|
|
7
|
Z Structure
|
Ball Screw
|
|
8
|
Max. Consume power
|
3.0Kw
|
|
9
|
Max. Speed
|
0-6000mm/min
|
|
10
|
Max. Working Speed
|
0-3000mm/min
|
|
11
|
Spindle Power Motor
|
1.5Kw self-coolant spindle
|
|
12
|
Spindle Speed
|
0-24000RPM
|
|
13
|
Working Mode
|
Stepper
|
|
14
|
Working Voltage
|
AC220V/50/60Hz
|
|
15
|
Command
|
G code, *uoo, *mmg, *plt
|
|
16
|
Operating System
|
DSP System
|
|
17
|
Interface
|
USB
|
|
18
|
Flash Memory
|
128M
|
|
19
|
Collet
|
ER18
|
|
20
|
X, Y Working Delicacy
|
< 0.01mm
|
|
21
|
Software
|
Type3 software, Wentai software, Artcam software
|
|
22
|
Running circumstance
|
Temperature: 0~45
Relative humidity: 30%~75% |
|
23
|
Packing Size
|
1300x1050x900mm
|
|
24
|
Net Weight
|
165KG
|
|
25
|
Gross Weight
|
202KG
|
|
All parameters above subject to change without prior notice
|
||

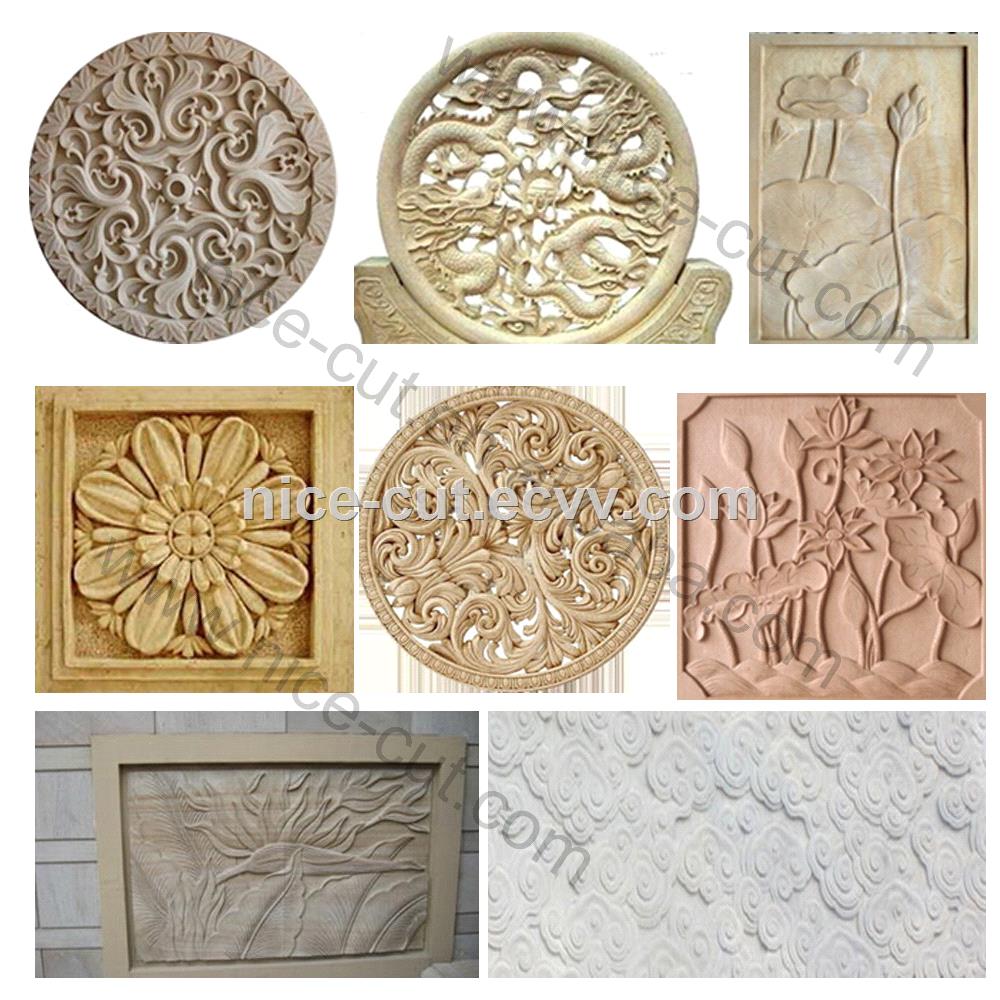

application
Strong function, easy operation, sturdy, durable reliable performance, reasonable price, multi-functions and wide range of appliction make it possible to process any wooden prooducts and applicable to process advertising sign plate, acrylic cutting, etc. Any meal and non-metal can be processed, for example, iron, copper, aluminum, plastic plates and wood, etc.
distinguished features
> DSP controlling system
> Optimization mechanic and electric design, ensure good performance of machine
> Furnish with high power inverter-driven spindle motor cooled by water
> Rolling ball screw from Germany, make more accuracy
> Friendly designing, safety and easy operation
Optional:
Servo system
Dust collecting system
Vacuum system
