Technical Parameters

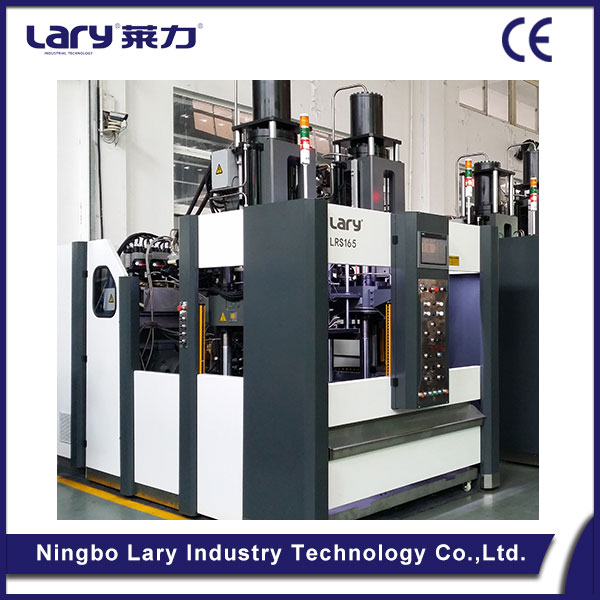

	Single color rubber injection		LRS165
1.	Clamping force	KN	1650
2.	Opening stroke	mm	450
3.	Heating Plate Dim.	mm	400×300
4.	Max daylight between heating platens	mm	500
5.	Min. Mould height	mm	50
6.	Max Injection pressure I	cm3	1000
7.	Injection pressure I	KN	183
8.	Rubber Strip width	mm	40
9.	Max. Temperature for heating plate	℃	250
10.	Max. Temperature for barrel	℃	100
11.	Total power	KW	40
12.	Oil tank capacity	L	1200
13.	Machine dimensions	mm	4000×2400×3500
14.	Machine Weight	KG	16000

  Advantages for LR165S

1. European most advanced technology of rubber soles production, designed special for rubber soles, compact, fully automated production, one worker can operate six stations.

2. Only put the rubber strip into the feeder, you can achieve automatic metering, preheating, injection, and automatically moving out the mold, opening mold, fully automated production process, greatly improving production efficiency, reducing labor intensity, protecting the mold.

3. the process of injection after clamping, greatly reducing the product flash and trimming costs, the product is more compact, to improve the intrinsic quality of the product.

4. with human interface, you can set the curing time, injection volume, preheat temperature, curing temperature, exhausting parameters, and fault diagnosis system that can guide the maintenance staff to solve the problem in the shortest time.

5. Equipped with automatic die change system, and a mold can be replaced within five minutes.

6. Advanced energy-saving hydraulic control system can support 24 hours' continuous operation, with quickly response, energy efficiency.

7. for insert color process, single color injection machine will solve the rubber mixing problem easily, greatly improving the yield of the embedded color products, quality, and reduce costs of artificial re-treatment.

8. Optional vacuum system, completely solve the problem of products with air.

9. Two kinds of heating systems are available, electrical heating and oil heating.
