| Type: | TFT |
|---|---|
| Brand Name: | TOWPAY |
| Interface Type: | RS232 |
| Resolution: | 800x480 |
| application: | TFT |

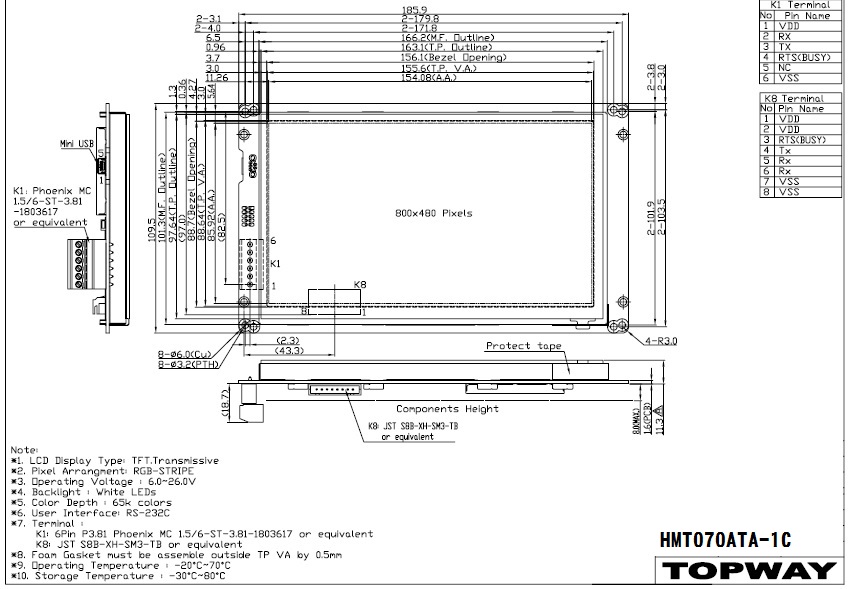

| Model Number: | HMT070ATA-1C |
| Place of Origin: | China (Mainland) |
| Size: | 7 inch |
Quick Details
Specifications
TOPWAY'S Smart LCDs embed a display engine and a versatileRange of TFT display sizes and
Touch-panels to support a wideRange of industrial and instrumentation applications.the pre-loaded User Interface(UI) reduces the host system'sWorkload and provides a much fasterInteraction
with the user.UI designs are implemented under usage of TOPWAY'S GraphicsEditor allowing designs
with zero coding. It dramatically simplifiesand speeds up the whole productDesign process.

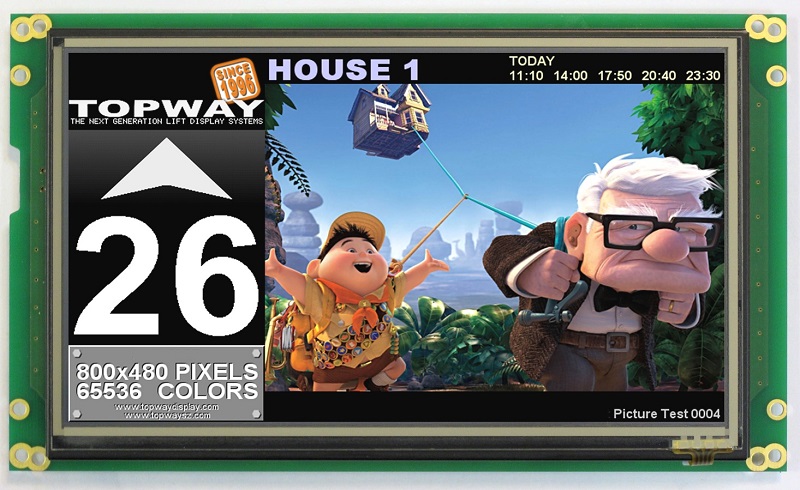

7.0 inch Smart LCDProduct features:
-High Brightness LEDs Backlight
-Industrial Resistive/Capacitive Touch Panel
-256M Byte high speed flash
-Operating Temperature: -20~+70
| tem | Description |
| Product Name | Industrial Panel 7 Inch (LMT070) |
| Model No. | LMT070DICFWD series |
| Number of dots | 800*3(RGB)*480 |
| Outline Dimension(mm) | 190.0 x 112.0 |
| Active Area(mm) | 154.08 x 85.92 |
| Viewing Angle: T/B/L/R | 50/70/70/70 |
| Aspect Ratio | 16:9 |
| Brightness(CD/m 2 ) | 250 |
| Contrast Ratio | 500 |
| DotPitch(MM) | 0.0642x0.179 |
| Backlight | LED |
| Power supply | 5V |
| Color Depth | 65K |
| Interface | TTL |
| 8-bit data MCU | |
| 16-bit data MCU | |
| LVDS | |
| VGA/HDMI | |
| RS232 | |
| Touch panel | 4-wire resistive |
| Controller | Optional |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
