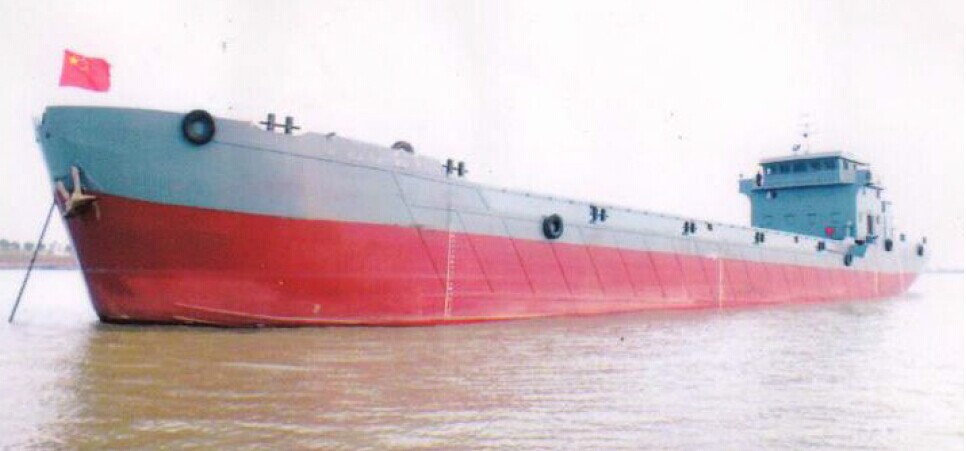

1800m3 Split Hopper Barge technical outline
Delivery time 10.Jan.2012
Hull Part:
Loa: 72.80m Lbp 69.20m Breadth MLD 14.80m
Depth MLD 5.30m Light draft 1.78m Loading draft 4.20m
Navigation area coastal Hopper capacity Abt.1800m3 Loading displacement 3915.658t
Light displacement 1096.658t Working area: A1+A2
Hull material Steel
Anchor
Type:Speke Weight 1750kg Quantity 2
Chain diameter: Diameter 34mm Length 192.5/220m
Winlass Type:YMA34-2-45
Rudder
Quantity 2 Rudder area:4.74m2 RudderStock diameter 160mm
Driver type electric-hydraulic type Streamline
Machinery
Main engine
Model: Z8170ZLCZ-8 Quantity 2 Date Sept.27.2011
Power: 600KW Rated speed: 1500r/min
Maker Zibo diesel co.,ltd
Gear box
Model: HCD600A quantity 2
Reduction 5:01 Capcatity:0.44kw/r/min
Maker Hazhou.,ltd
Propeller
Propller Dia:2200mm Material cast steel
Quantity 2 TYPE FPP
