| Model Number: | RF-1015-M |
|---|---|
| Brand Name: | RAY FINE |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

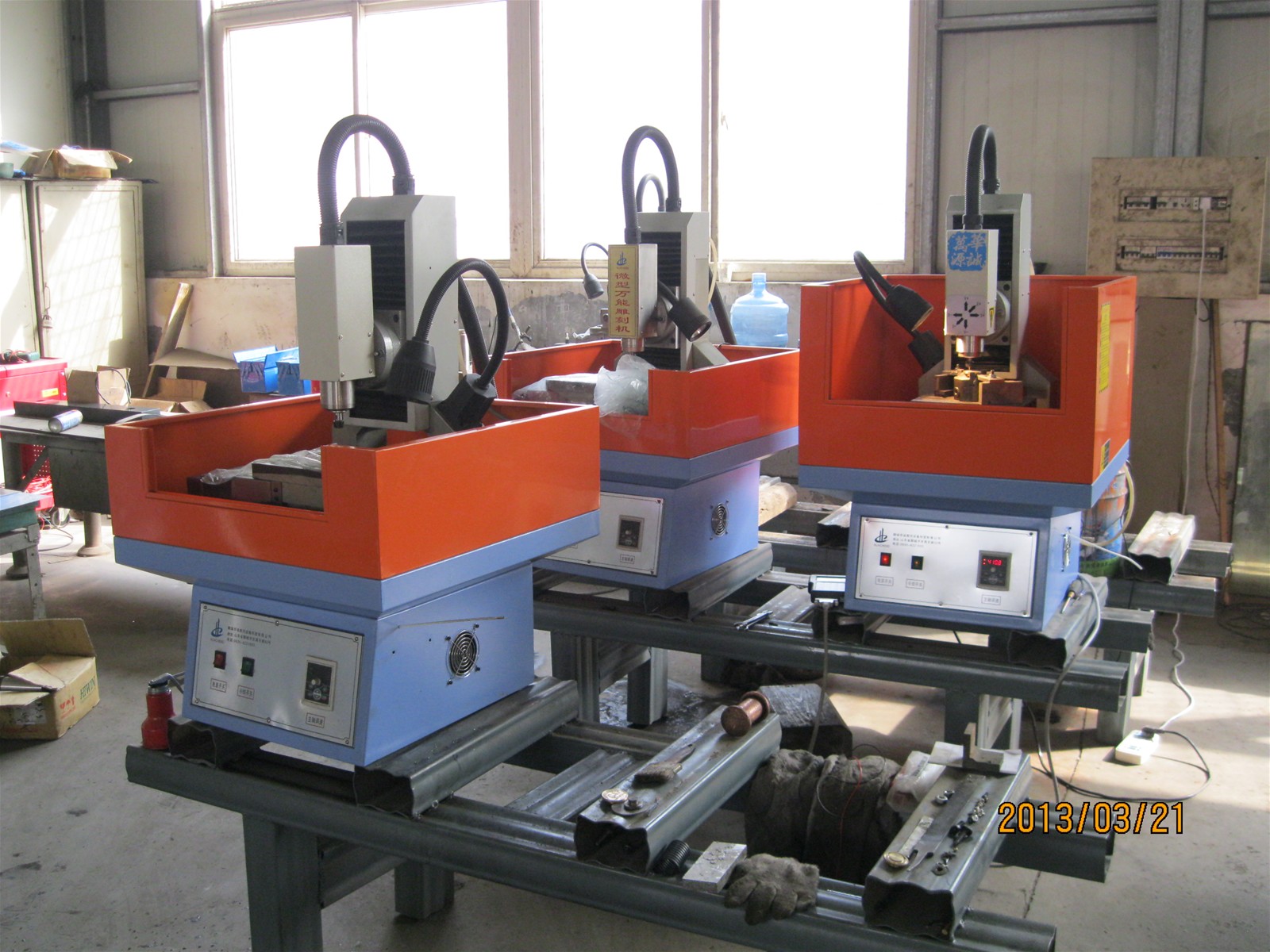

Small mini Mold making CNC Machine RF-1015-M-RAY FINE
Pefromance:
Application: watch parts processing,metal stamp,jade,agate,small mold,pole,heat mold etc.
|
Model |
RF-1015-M |
|
X-Y-Z axis work area |
100*150*100mm |
|
table size |
160*250mm |
|
Machine body |
Cast iron machine body with heat treatment |
|
XYZ drive machinism |
C3 class TBI imported ball screw |
|
Guide rails for X Y Z axises |
H class imported HIWIN linear square rails 20mm |
|
Max speed |
5m/min |
|
Max engraving speed |
3m/min |
|
Spindle power |
2.2KW constant power spindle with imported NSK bearings |
|
Spindle speed |
0-24000r/min |
|
Inverter power |
2.2KW |
|
Drive motor |
Imported Japan SAMSR stepper motor with driver |
|
Working voltage |
AC220V/50-60HZ |
|
Command code |
G code |
|
Collect |
3.175mm,6mm |
|
Tool set equipment |
Z tool sensor |
|
postion precision on xyz axises |
0.038/300mm |
|
Repeat precision |
0.025mm |
|
Software |
Artcut/type3/artacam/UG/auto CAD |
|
Controls |
DSP offline control system |
|
Net weight |
200kg |
Application:

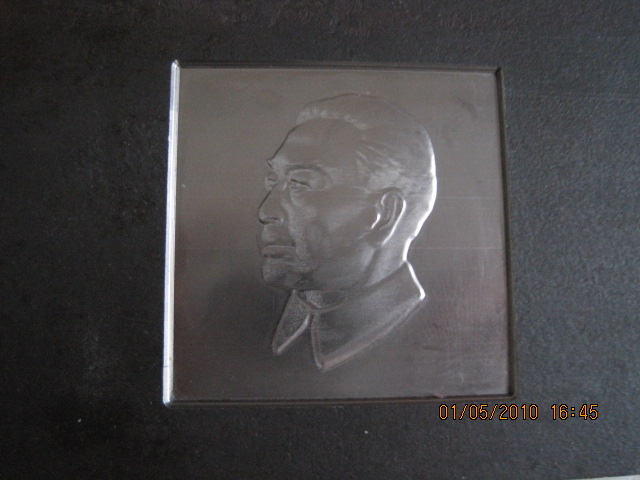

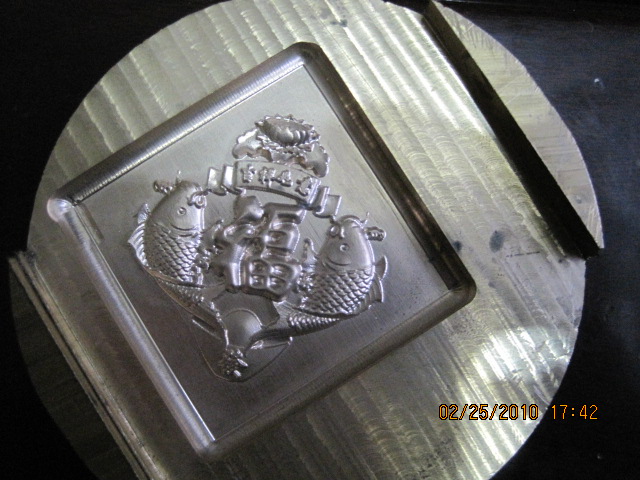

Stamping die,press tool,mold processing,machining of electrode,PCB,
Steel seal,copper stamp,jade engraving,agate processing,small mold,copper pole,hardware mold,plastic mold engraving.
