| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE,CIQ,QC,SGS,SAI |
| Weight: | 1500KGS |
| Power(W): | 3.0KW |
| Voltage: | AC380V/50Hz |
| Model Number: | JX-1325F |
| Brand Name: | JIAXIN |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications

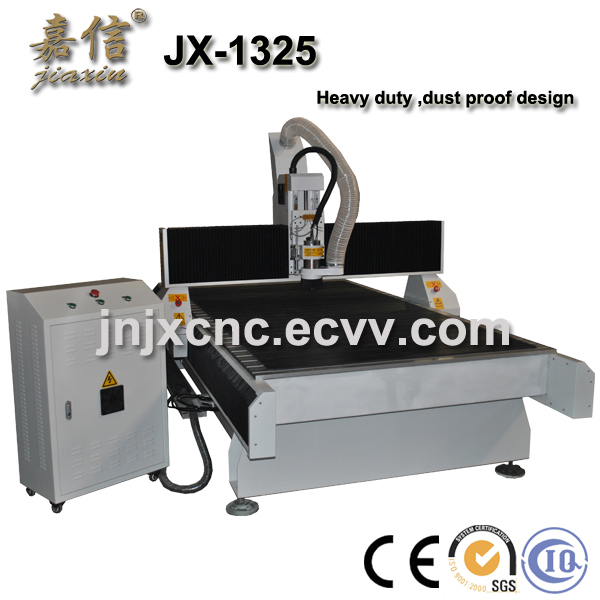

JX-1325F Woodworking CNC Router
Guarantee & aftersales service
|
Model
|
JX-1325F
|
|
X, Y working area
|
1300mm x 2500mm
|
|
Z working area
|
100mm
|
|
Table size
|
1340mm x 3000mm
|
|
Max. Speed
|
8m/min
|
|
Max. Carving speed
|
5m/min
|
|
Work accuracy
|
0.01mm
|
|
Resolution
|
0.025mm
|
|
Positioning accuracy
|
0.05mm
|
|
Spindle power
|
3.2KW spindle
|
|
Spindle rotating speed
|
0-24000rpm
|
|
Surroundings for software
|
WindowsXP/Win 7
|
|
work mode
|
Step motor
|
|
Work voltage
|
AC380V/50Hz
|
Suitable Industry
Suitable for high-volume processing of non-ferrous metal sheet, Such as aluminum veneer, PVC board, acrylic, wood and
MDF composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.
MDF composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.
Performance Characteristics
1. Imported high precision ball screw transmission ensures stable movement and high accuracy of machine
2. Well-known brand domestic spindle, water cooling, frequency conversion , brushless, low noise, strong cutting strength
and ensuring long time mass processing
and ensuring long time mass processing
3. Drivers with high definition subdivision ensure fast speed and high accuracy.
4. Software: Compatible with CAD/CAM software such as Type3/Artcam/Castmate etc.
Guarantee & aftersales service
Guarantee for 12 months, 24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining.
