| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Model Number: | RF-1325-CO2-150W |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | laserwork |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Area: | 1300*2500mm |
| Cutting Thickness: | non-metal:20mm,metal:1.2mm |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
Quick Details
Specifications
all Screw Driver CO2 Laser Metal Cutting Machine RF-1325-CO2-150W
-
-
No.:RF-1325-CO2-150W
-
Brand :Rayfine
-
Weight:1300kg
-
No.:RF-1325-CO2-150W
Equipment features:
High speed DSP offline control system with colorful TFT screen displaying and USB interface.2MHZ data transfer and designing display on TFT screen.
Dynamic display the working process during machine cutting work.
Can change the parameter on TFT panel.

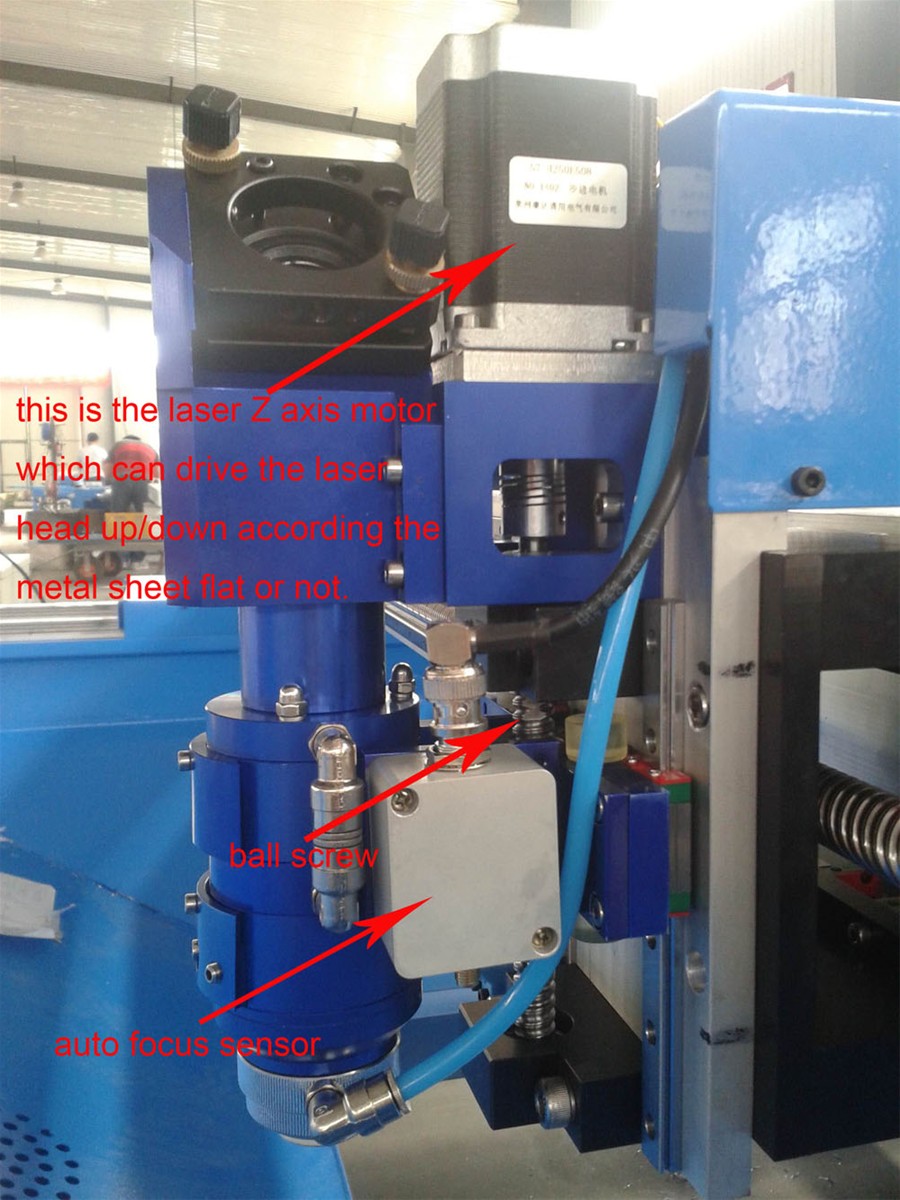

Special follow up laser cutting head for both metal and nonmetal materials cutting.
USA imported focus lens.
Industry heavy duty machine body to ensure machine stable and high precision
Whole set imported guide rails and ball screw from Taiwan.
Hybrid servo motor with driver more powerful and accurate.
Whole laser cutting system review
Application industries:
Specially used for advertising,decorate,home,lighting,die-cutting,light box,packaging industries;
Application materials:
suitable for carbon steel,stainless steel,galvanized sheet,solid wood,multi-players board,PVC,acrylic,plexiglass,rubber,resin,MDF etc.
Technical parameter:
Model: RF-1325-CO2-150W
Machine body: welded heavy duty machine body
drive mechanism: ball screw drive on xyz axis
Laser power:150W reci tube
Cutting thickness:
carbon steel 1.5mm,stainless steel 1.2mm,nonmetal materials 20mm.
Position accuracy:±0.01mm
Working environment:0-30 degree
Support format:PLT,BMP,DXF,DST,DWG,HPGL etc.
Compatible software:COREL-DRAW,PHOTOSHOP,AUTOCAD.
Working voltage: AC220V 50/60HZ.
