Product Main

Quick Details

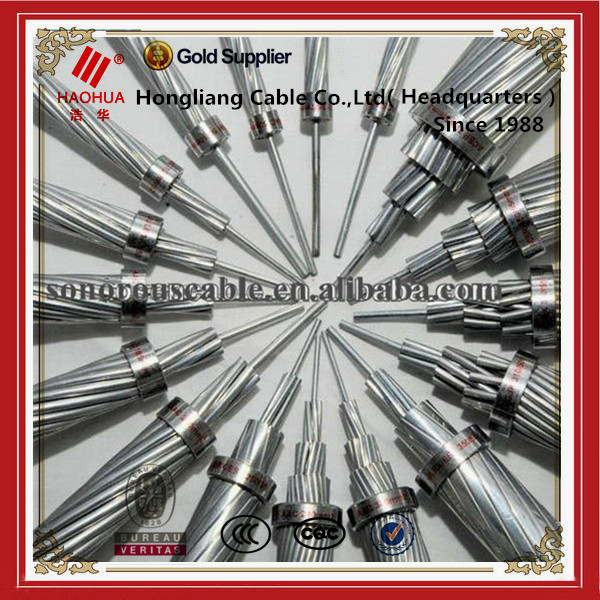

Jacket: Bare ACSR CAT Conductor
Conductor Material: Aluminum
Application: Overhead
Type: High Voltage
Insulation Material: Bare ACSR CAT Conductor
Model Number: Bare ACSR CAT Conductor
Brand Name: Hauhua
Place of Origin: China (Mainland)
Name: Bare ACSR CAT Conductor
Conductor Type: 6/1/4.50
Shape: Round
Certification: ISO, CCC, CE

Specifications

ACSR CAT Conductor

 Bare ACSR CAT Conductor

Product Description

ACSR CAT conductor Are used extensively for overhead ground wires, river crossing etc. these ACSR conductor are available with us in various types for meeting the exact requirements of clients. Used as bare overhead transmission cable and as primary and secondary distribution cable.




S/N.

Code Name

Construction


S/N.

Code Name

Construction

1

MOLE

6/1/1.50

12

RACCOAN

6/1/4.09

2

SQUIRREL

6/1/2.11

13

OTTER

6/1/4.22

3

GOPHER

6/1/2.36

14

CAT

6/1/4.50

4

WEASEL

6/1/2.59

15

HARE

6/1/4.72

5

FOX

6/1/2.79

16

DOG

6/4.72+7/1.57

6

FERRET

6/1/3.00

17

HYENA

7/4.39+7/1.93

7

RABBIT

6/1/3.35

18

LEOPARD

6/5.28+7/1.75

8

MINK

6/1/3.66

19

COYOTE

26/2.54+7/1.91

9

SKUNK

12/7/2.59

20

TIGER

30/7/2.36

10

BEAVER

6/1/3.99

21

WOLF

30/7/2.59

11

HORSE

12/7/2.79

22

LYNX

30/7/2.79

Standard

BS 215(Part 2), NFC 34120, ASTM B232, AS1220,,DIN48204,IEC61089





Note:

(1) all aluminium conductor (AAC)

(2) all aluminimum alloy conductor(AAAC)

(3) aluminum conductor steel reinforced (ACSR)

(4) Aluminimum conductor aluminimum alloy reinforced(ACAR)

ACSR CAT Conductor



Product Description

ACSR CAT conductor Are used extensively for overhead ground wires, river crossing etc. these ACSR conductor are available with us in various types for meeting the exact requirements of clients. Used as bare overhead transmission cable and as primary and secondary distribution cable.




S/N.

Code Name

Construction


S/N.

Code Name

Construction

1

MOLE

6/1/1.50

12

RACCOAN

6/1/4.09

2

SQUIRREL

6/1/2.11

13

OTTER

6/1/4.22

3

GOPHER

6/1/2.36

14

CAT

6/1/4.50

4

WEASEL

6/1/2.59

15

HARE

6/1/4.72

5

FOX

6/1/2.79

16

DOG

6/4.72+7/1.57

6

FERRET

6/1/3.00

17

HYENA

7/4.39+7/1.93

7

RABBIT

6/1/3.35

18

LEOPARD

6/5.28+7/1.75

8

MINK

6/1/3.66

19

COYOTE

26/2.54+7/1.91

9

SKUNK

12/7/2.59

20

TIGER

30/7/2.36

10

BEAVER

6/1/3.99

21

WOLF

30/7/2.59

11

HORSE

12/7/2.79

22

LYNX

30/7/2.79

Standard

BS 215(Part 2), NFC 34120, ASTM B232, AS1220,,DIN48204,IEC61089





Note:

(1) all aluminium conductor (AAC)

(2) all aluminimum alloy conductor(AAAC)

(3) aluminum conductor steel reinforced (ACSR)

(4) Aluminimum conductor aluminimum alloy reinforced(ACAR)


Company Information
Hongliang cable co.,ltd (Headquarters) is one of the professional cable &wire manufacturer in China, which was established in 1988, is the production of cable products, research and development, sales in the integration of professional, modern enterprise.
Our main cable:
Our company mainly produces (1-35 kV )Low and Medium Voltage cable, XLPE cable, PVC insulated power cable,Steel wire armoured cable, AAC cable, AAAC cable, ACSR cable,Control cable, Rubber cable,High temperature resistant cable, Overhead cable, Low smoke halogen-free cable.



 Welcome your inquiry of our ACSR CAT Conductor ~ ~ ~
