POWER SUPPLY

Input power: 100-240V AC, 50/60 Hz

LAMP SOURCE

Lamp:  MSD 15R 350W,1,500hr,

Power Consumption: 350W

OPTICS

Lens: Anti-reflective coated lens

YiLong optic system

Output Lux: 10,500lux at 20 meters

COLOR SYSTEM

Colors: Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect.

CMY Variable Color Mixing for Infinite Color Possibilities

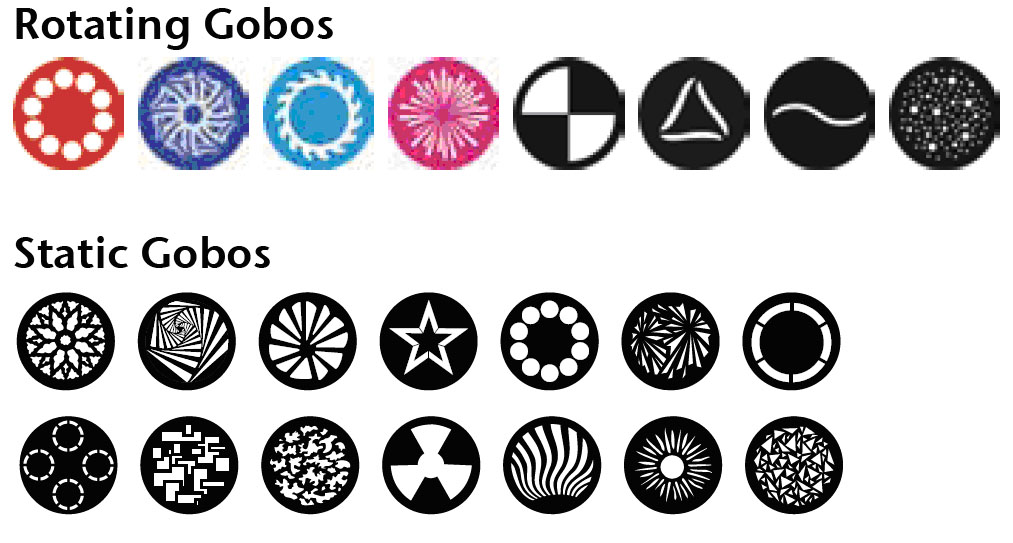

GOBO SYSTEM

8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing

Static gobo wheel with 14 indexing gobos plus open, gobo shaking in different speed

EFFECTS SECTION

Prism and prism rotating , with 16 prism macros

Linear dimmer in precise speed from 0% ~ 100%

Stepless frost, 0%-100% linear change frost

Motorized focus

Iris from 5%~100% with pulse iris effect.

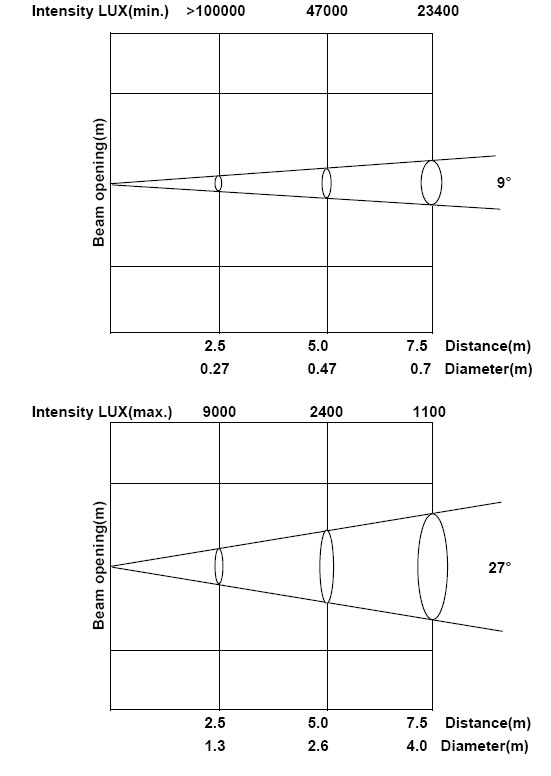

Zoom: 9°~27° linear zoom

Strobe/shutter: High speed shutter, 0-13 Hz or random strobe

CONTROL AND PROGRAMMING

DMX Channels: 3 DMX Modes-21/23/34 Channels DMX

Control: 3-pin&5-pin DMX

Control board with LCD graphic display

BODY

Remote controller lamp's switch function, display light and lamp's using time

Structure: heat-proof plastic+module pressing alloy materials

MOVING BODY

Pan and tilt movement: 8 and 16 bit resolution

For smooth and precise motion

Movement: Pan: 360°/540°optional, Tilt: 270°

Speed of pan/tilt movement adjustable

Scan position memory, auto reposition after unexpected movement

WEIGHT&SIZE

Weight: 23kgs

Dimensions: 409*419*541mm
