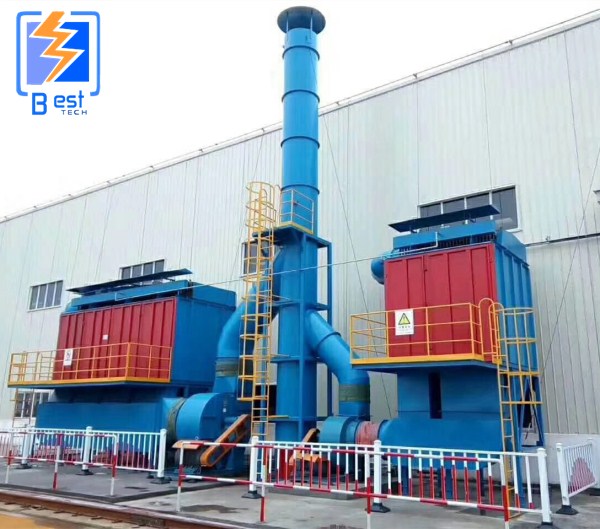

the advantages:  Pulse bag filter is a small bag filter.It uses cylindrical filter bag, bringing system fan, pulse blowing ash removal mode, has a good purification efficiency, effect, small resistance, filter bag, long life, easy maintenance, the advantages of safe and reliable operation.



Scope of application: Pulse bag filter used machinery, metallurgy, rubber, flour, chemical, pharmaceutical, carbon, building materials, mining, electroplating and other industries.



Structure description:  pulse bag filter consists of filter room, filter bag, net gas chamber, ash hopper, the flap valve and pulse injection device, system fan, electric cabinet, etc.



Technique parameter:



Model	Filting area(m2)	Air volume(m3/h)	Filting airspeed(m/min)	Working resistance(PA)	Dust removing pressure(Mpa)
DMC-32	30	2880-4800	1.5-2.5	800-1800	0.4-0.6
DMC-48	48	4320-7200	1.5-2.5	800-1800	0.4-0.6
DMC-60	60	5400-9000	1.5-2.5	800-1800	0.4-0.6
DMC-72	72	6480-10800	1.5-2.5	800-1800	0.4-0.6
DMC-90	90	8100-13500	1.5-2.5	800-1800	0.4-0.6
DMC-120	120	10800-18000	1.5-2.5	800-1800	0.4-0.6
DMC-150	150	13000-22500	1.5-2.5	800-1800	0.4-0.6
DMC-180	180	16200-27000	1.5-2.5	800-1800	0.4-0.6
DMC-210	210	18900-31500	1.5-2.5	800-1800	0.4-0.6
DMC-250	250	22500-37500	1.5-2.5	800-1800	0.4-0.6
DMC-270	270	24300-40500	1.5-2.5	800-1800	0.4-0.6
DMC-300	300	27000-45000	1.5-2.5	800-1800	0.4-0.6
DMC-340	340	30400-51000	1.5-2.5	800-1800	0.4-0.6
DMC-420	420	37800-63000	1.5-2.5	800-1800	0.4-0.6
DMC-500	500	45000-75000	1.5-2.5	800-1800	0.4-0.6
DMC-600	600	54000-90000	1.5-2.5	800-1800	0.4-0.6
DMC-740	740	66600-111000	1.5-2.5	800-1800	0.4-0.6
DMC-870	870	78300-130500	1.5-2.5	800-1800	0.4-0.6
DMC-1000	1000	90000-150000	1.5-2.5	800-1800	0.4-0.6
DMC-1100	1100	99000-165000	1.5-2.5	800-1800	0.4-0.6
