| Moving Type: | Crawler Bulldozer |
|---|---|
| Condition: | Used |
| Make: | Caterpillar |
| Year: | 1990 |
| Model Number: | D5H |
| Brand Name: | cat |
Quick Details
Specifications

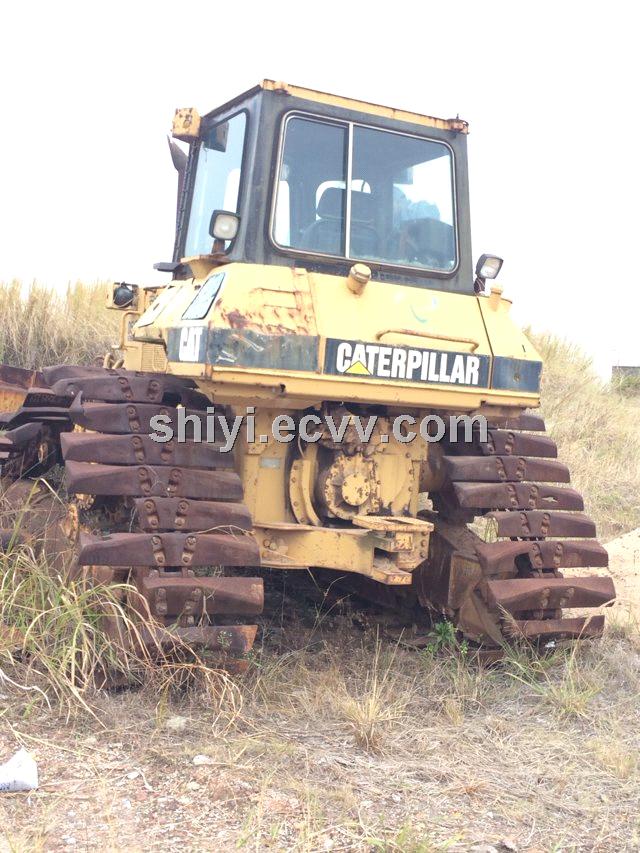

Used Bulldozer CAT D5H LGP/ Caterpillar D5H LGP Bulldozer
|
Engine |
||
| Make | Caterpillar | |
| Model | 3304 | |
| Gross Power | 129 hp | 96.2 kw |
| Net Power | 120 hp | 89.5 kw |
| Power Measured @ | 2200 rpm | |
| Displacement | 427.2 cu in | 7 L |
| Aspiration | turbocharged | |
| Number of Cylinders | 4 | |
| Operational | ||
| Operating Weight | 32380 lb | 14687.3 kg |
| Fuel Capacity | 65 gal | 246 L |
| Cooling System Fluid Capacity | 7.4 gal | 27.9 L |
| Engine Oil Capacity | 4.7 gal | 17.8 L |
| Hydraulic Fluid Capacity | 18.5 gal | 70 L |
| Final Drives Fluid Capacity | 1.8 gal | 7 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 50 amps | |
| Transmission | ||
| Type | Planetary powershift | |
| Number of Forward Gears | 3 | |
| Number of Reverse Gears | 3 | |
| Max Speed - Forward | 6.2 mph | 10 km/h |
| Max Speed - Reverse | 7.8 mph | 12.5 km/h |
| Undercarriage | ||
| Ground Pressure | 3.9 psi | 26.8 kPa |
| Ground Contact Area | 8308 in2 | 5.4 m2 |
| Standard Shoe Size | 33.9 in | 860 mm |
| Number of Shoes per Side | 46 | |
| Number of Track Rollers per Side | 8 | |
| Track Gauge | 7.1 ft in | 2160 mm |
| Hydraulic System | ||
| Pump type | Load sensing hydraulics, variable displacement piston pump | |
| Relief Valve Pressure | 3000 psi | 20684.3 kPa |
| Pump Flow Capacity | 28.7 gal/min | 108.8 L/min |
| Standard Blade | ||
| Width | 13.1 ft in | 3980 mm |
| Height | 40.4 in | 1025 mm |
| Capacity | 4.2 yd3 | 3.2 m3 |
| Blade Angle (both directions) | degrees | |
| Cutting Depth | 19.3 in | 491 mm |
| Dimensions | ||
| Length w/o Blade | 13.5 ft in | 4130 mm |
| Length w/ Blade | 17.4 ft in | 5300 mm |
| Width Over Tracks | 9.9 ft in | 3020 mm |
| Height to Top of Cab | 10.1 ft in | 3069 mm |
| Length of Track on Ground | 10.2 ft in | 3121 mm |
| Ground Clearance | 1.5 ft in | 444 mm |
