| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Condition: | New |
| Brand Name: | EFFEMAX |
| Weight: | 450kg |
| color: | white |
| Place of Origin: | China (Mainland) |
| After-sales Service Provided: | No overseas service provided |
| Condition: | New |
| saw blade: | 1100-2200mm |
| hardness: | 55-65HRC |
Quick Details
Specifications

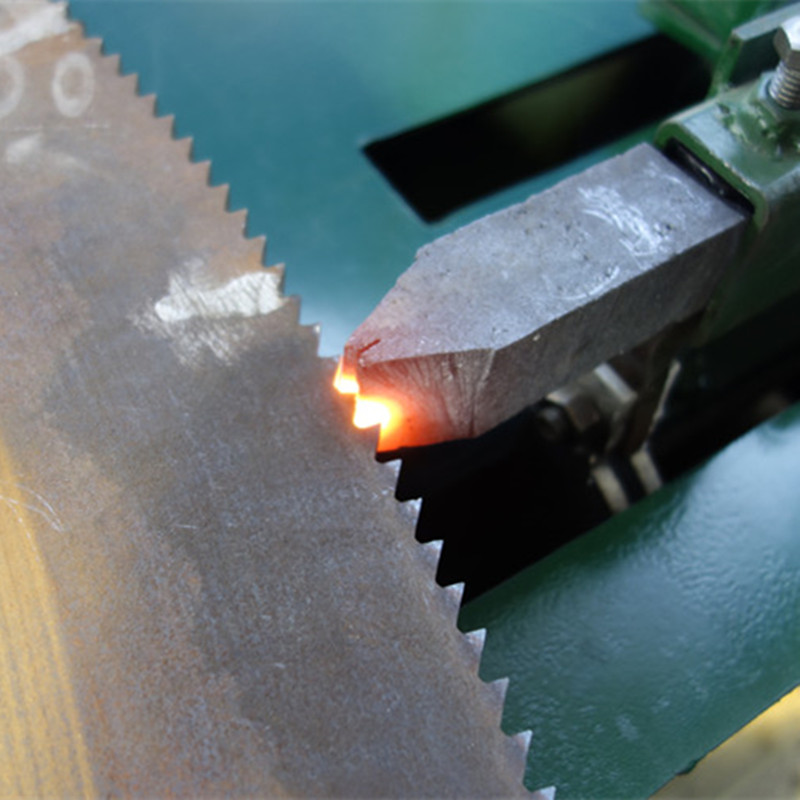

HRC55-65 circular saw blade electrode tooth tip hardening machine
the electrode teeth hardening machine is including machine base (for holding blade), electrode graphite & it's adjustment and electric cabinet.
by induction heating method, the graphite contact saw blade teeth and heat it to 70 separately and then cool by air to get hardness HRC 55-65.
the machine is very simple to control by only one worker, but is totally manual and widely used in China's re-grinding factory and saw blade plant.
for steel mill and hot rolled steel factory, hot cutting saw blade and friction saw blade is consumables, but the longer working life will helpful to improve production, so with this simple operate machine to rehardening saw teeth is nessary.
Techinical data
- Machine size:length2080mm* width700mm* height 800mm
Applied to saw blade size:1100mm--2200mm
2.Electric cabinet:hight1100mm* width500mm* Length480mm
Power: 30KVA
Applied saw blade size:diameter1800(the larger one need to be customized)
Electric:AC380V/50Hz
Working light:35W/AC24V
Graphite size:150*35*35mm
| Name | Data |
| Saw blade diameter range | Less than or equal to 1800mm |
| Power supply volatge | AC 380V 50Hz |
| Output voltage | Less than 12V |
| Working light | 35W/AC24V |
| Graphite electrode size | 150x35x35mm |
| Powe | 20KVA |
| Main machine size | 2080x700x800mm |
| Electric cabinet size | 1100x500x480mm |
