Weight: | 800kg |
---|---|
Brand Name: | EFFEMAX |
CNC or Not: | Normal |
Type: | Cylindrical Grinding Machine |
Condition: | New |
After-sales Service Provided: | No overseas service provided |
Certification: | No |
Dimension(L*W*H): | 2200*1400*1150 |
Power(W): | 4.5KW |
Voltage: | 380V |
Place of Origin: | China (Mainland) |
Max. Grinding Diameter: | 2200mm |
grinding material: | metalic saw disc |
Quick Details
Specifications

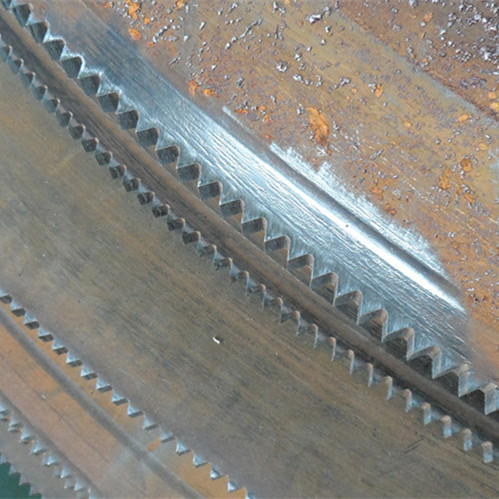

1000-2200mm circular saw blade grinding automatic sharpening machine
Technical specification
Diameter of saw blade: 1000-2200mm
Thickness of saw blade: 6-18mm
Power supply: AC 380V/50Hz
Air source: 0.5-0.9Mpa
Air pressure: 0.5-1.0Mp
Working pressure: approx 0.6Mpa
Power: motor of grinding 4KW
Motor of control 0.5KW
Teeth grinding speed: about 15-25 teeth (up to size, thickness and wear degree)
Grinding wheel: dia 250mm, corundum resin grinding wheel
Dimension: 2200*1400*1150
Electric cabinet: 1100*540*300
Application:saw blade manufacture, iron and steel plant, steel tube and pipe manufacture.
Features:
- Grinding and shaped teeth at once, improve grinding efficiency significantly
- Cause less runout and improve grinding accuracy
- Effective grinding time take 60%-80% of entire working cycle
Name | Data |
Saw blade diameter range | 1000-2200mm |
Saw blade thickness | 6-18mm |
Power supply volatge | AC380V/50Hz |
Air source | 0.5-0.9Mpa |
Air sourse pressure | 0.5-1.0Mpa |
Working pressure | 0.6Mpa |
Power of motor | 4 KW |
Power of control | 0.5KW |
Grinding speed | 15-25 teeth |
Diameter of ginding wheel | 250mm |
Main machine size | 2200x1400x1150mm |
Electric cabinet size | 1100x540x300mm |
