| Item Type: | Downlights |
|---|---|
| Brand Name: | Greenough |
| Place of Origin: | China (Mainland) |
| Model Number: | GNH-AC-D90-3I-10W-C |
| Shade Type: | Crystal |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Color Temperature(CCT): | Warm White |
| CRI (Ra>): | 80 |
| Lamp Luminous Efficiency(lm/w): | 100LM/W |
| Lamp Luminous Flux(lm): | 1000LM |
| Lamp Power(W): | 10 |
| Switch Type: | Knob switch |
| Certification: | CE,EMC,LVD,SAA |
| Install Style: | Embeded |
| Input Voltage(V): | AC220-240V |
Quick Details
Specifications
AC Driverless LED down light fire rated 10W specification:
Model
Power
10W
Dimension
?110*H50mm
Lighting Source
2835 SMD
LED Qty
1PC
Voltage
AC 220-240V
Material
6063 Aluminum+PMMA
Color temperature
2800-6500K
Luminous flux
1000LM ±5%
Luminous Efficacy
100lm/w
CRI
>80Ra
Beam Angel
120°
Lumen Attenuation
1000hrs <0.5%
Life Span
50,000hrs

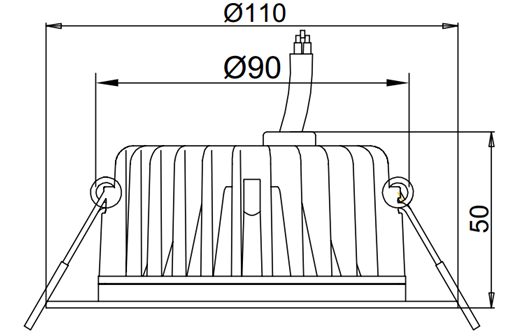

Dimension drawing for AC Driverless LED down light fire rated 10W:

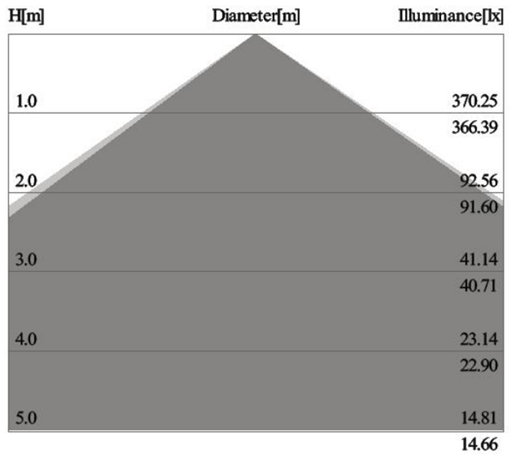

Brightness Contrast for AC driverless LED down light fire rated 10W:
Installation instruction for AC driverless LED down light fire rated 10W:
① Please instructions the light with the manual installation strictly. Or,lead to falls off, get an electric shock, fire and other major accidents.
② Please don't changing the light or adapting widgets optionally, or, will cause falls off, damaged, get an electric shock and other major accidents.
③ Please in strict accordance with the parameters marked lamps and lanterns (such as voltage)
Step 1:Open a hole in 90mm according to the cut diameter in the fixture,as shown in Picture 1;
Step 2:Connect the cable power must be cut off before connecting, in order to make sure safety ,as shown in picture 2;
Step 3:Pull the spring and straight in the ring,put cable and spring inside the hole,as shown in picture 3;
Step 4:Keep the spring in the ceiling ,as shown in picture 4,switch on power and can be used after check .
Application for AC driverless LED down light fire rated 10W:
