RF-3020-CO2-40W  stamp mini laser engraving machine

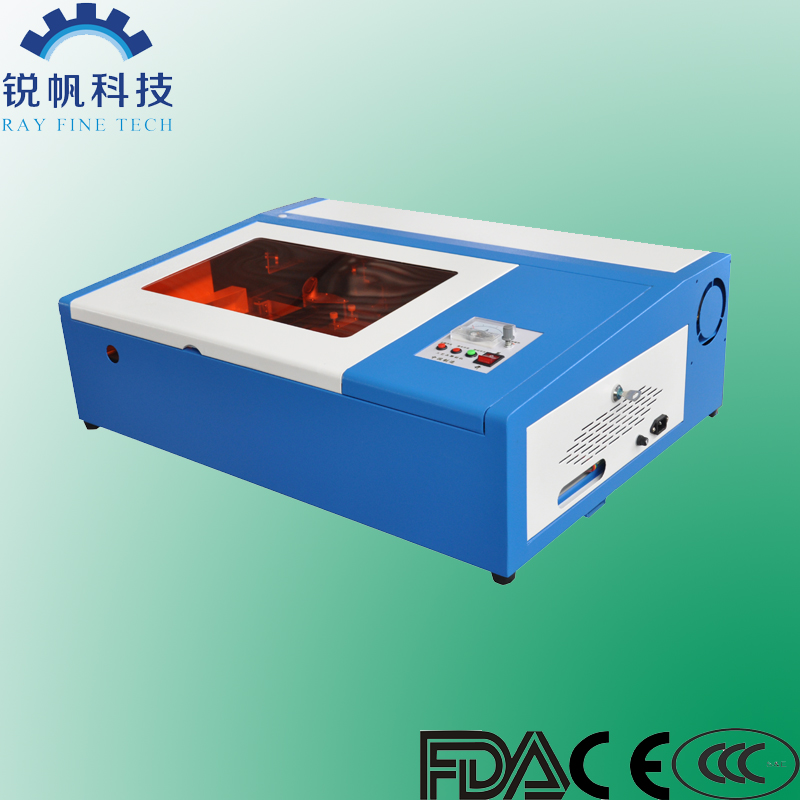

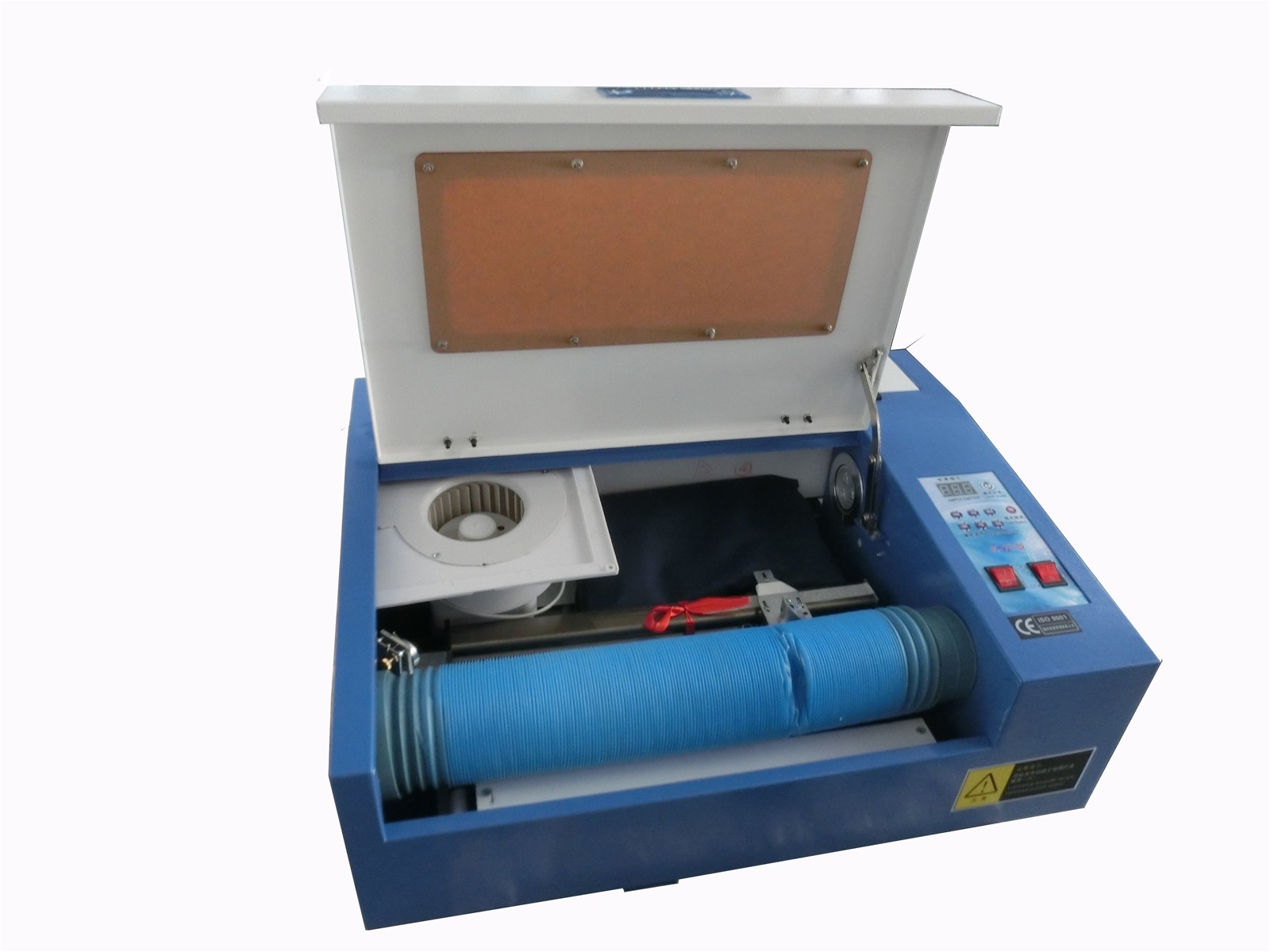

Machine photo:

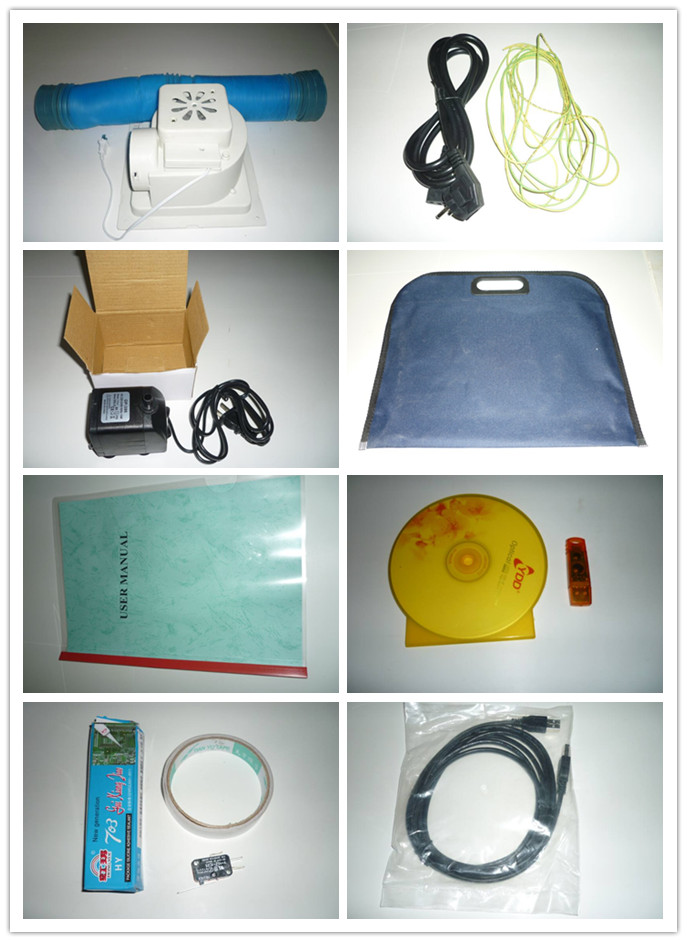

Standard accessories which equiped with machine:

 detal parameter:
Laser power  40W

Power supply  AC220±10% 50 HZ/AC110±10% 60HZ

Working area  300*200mm

Max moving speed   0-180mm/s

Laser energy control  1-100℅ set by hand or software

Worktable              Professi         worktable :Professional Fixture platform

Lens                  Diameter:           Lens:Diameter: 18mm, focus length: 50mm

Locating precision  <0.01mm

Mini shaping character letter: 0.8mmx0.8mm

Operating temperature 5℃-35℃

Data transfer interface USB

System environment WINDOWS 2000/WINDOWS XP

Cooling way Water cooling and protection system

Compatible software LASER DRAW

Cutting thickness 0-3mm (depends on different materials)

Package dimension      90x60x40cm

Gross weight           41 kg

Applicable Material:

Acrylic, Plastics,wood,glass,cloth, bamboo piece, double-color planks,marble, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper,film, canvas and so on



Applicable Industry

This machine is suitable to stamp engraving, advertisement, art gift, garment,

leather, toy, building upholster, computerized embroidery, packing and printing,

paper product, garments sampling, large width tailoring, , shoe-making,  furniture

 , model industry, craft work  and other industrie

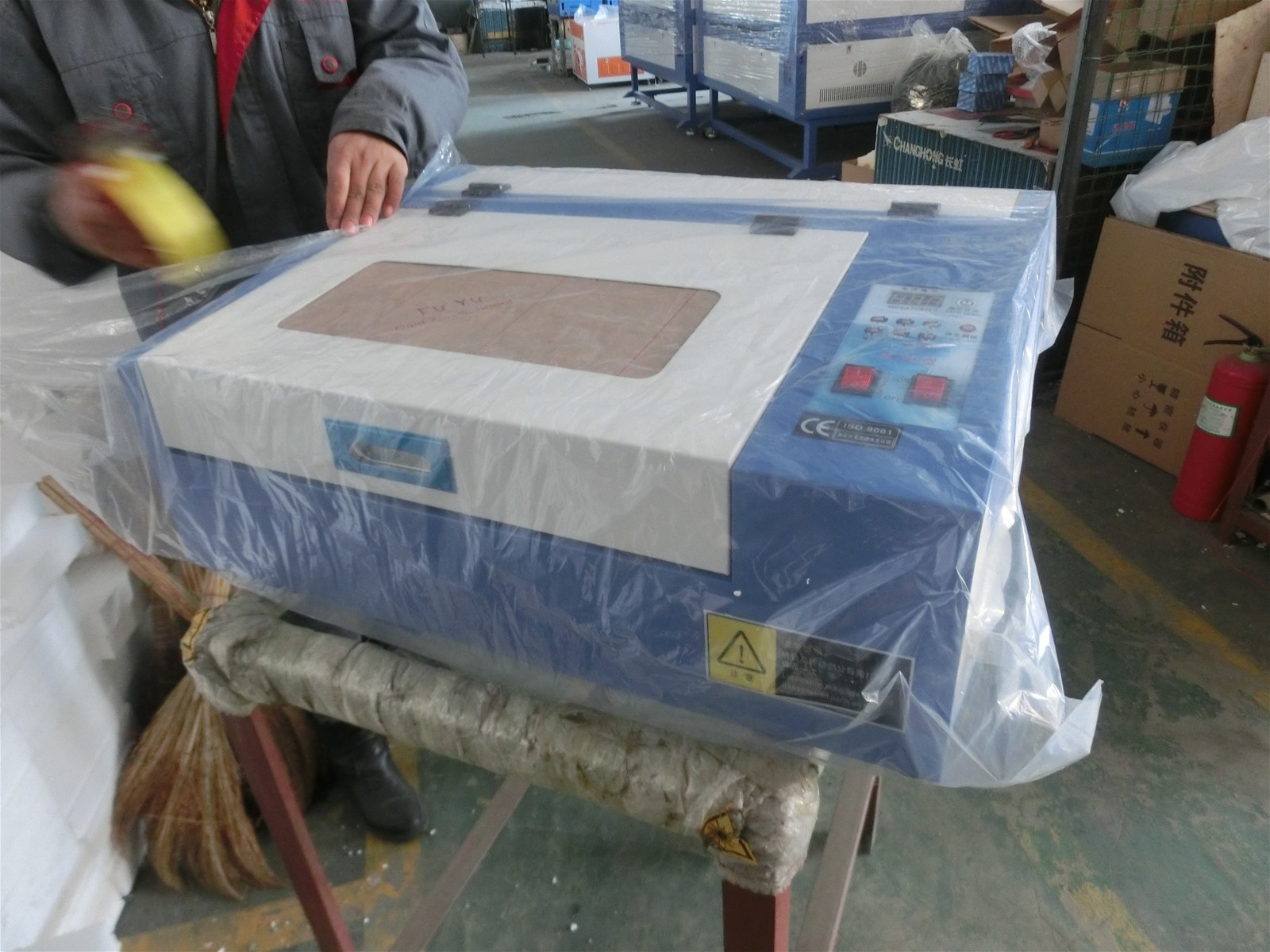

Package:

From inside to out:

1.all the standard accessories will be put inside of the machine.





2.pack the machine with plastic bag which is costumed made  for this laser machine;

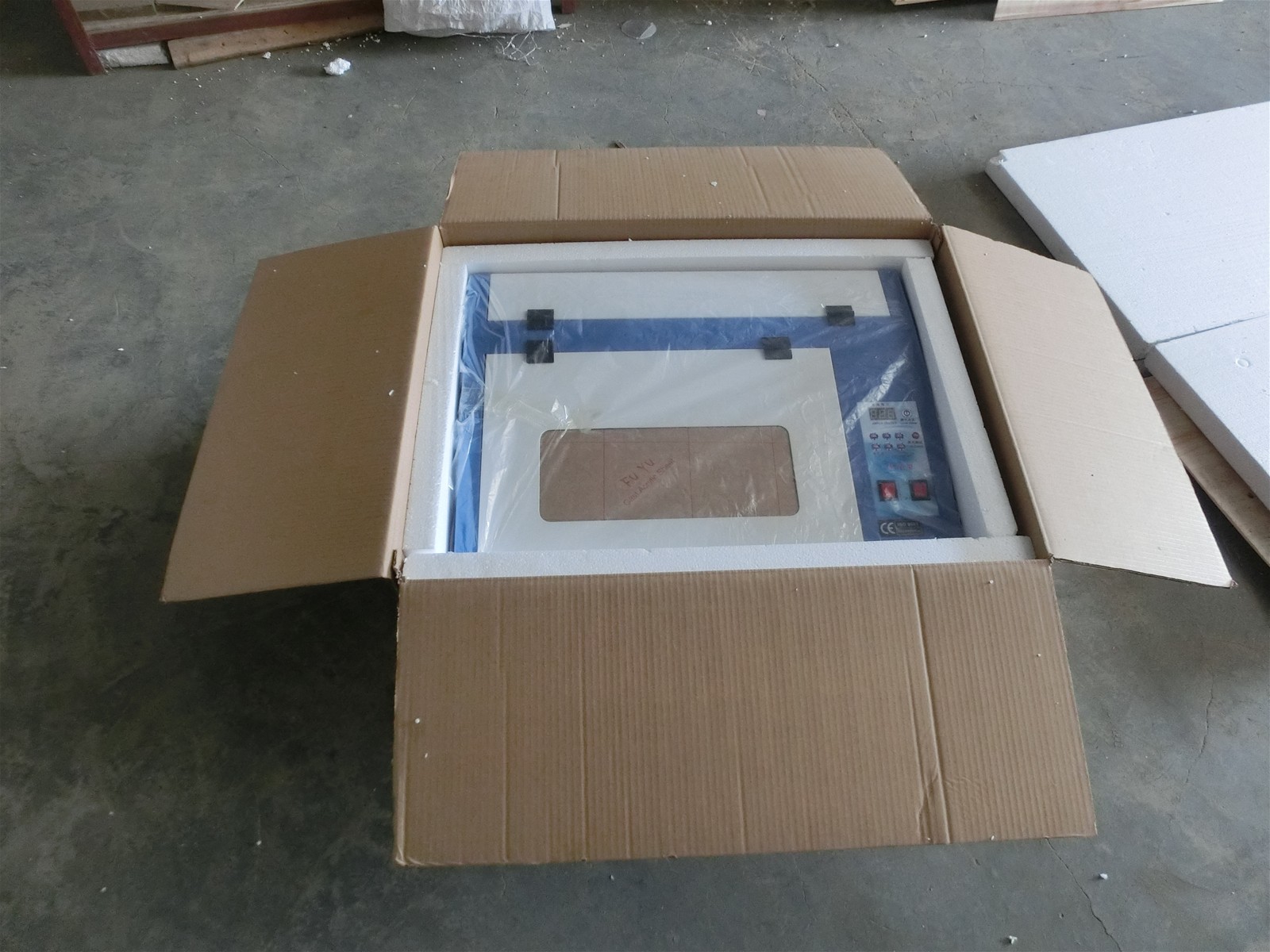

 3.Then 5cm thickness foam sheet and carton packing;

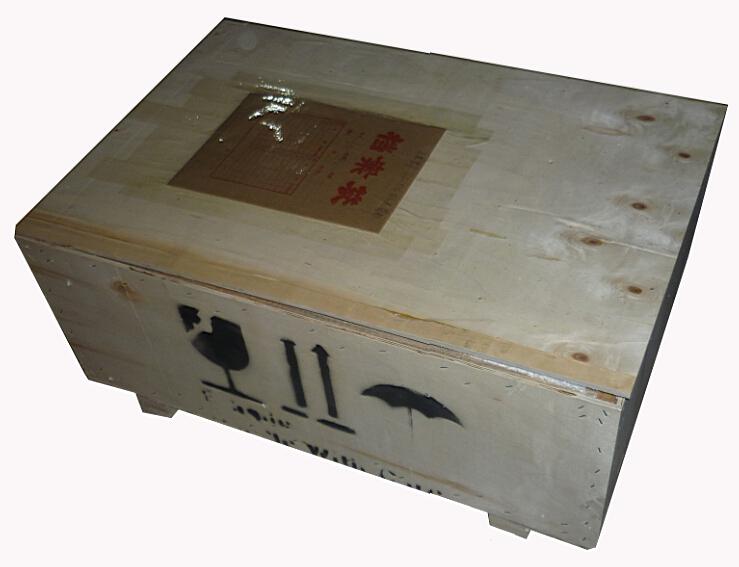

4.Plywood packing with Safety warning label and shipping mark.







Table Stytle:

1.Standard worktable styple: Fixture platform





2.Worktable for options:

 flat plate:



 3.up and down table
