| Model Number: | JW3306B |
|---|---|
| Brand Name: | JOINWIT |
| Place of Origin: | China (Mainland) |
| Material: | Metal |
| Color: | Black |
| Identified Wavelength Range: | 800-1700nm |
| Identified Signal Type: | 270Hz,1KHz,2KHz |
| Power Supply: | 1 pcs 9V Alkaline Battery |
| Brand: | JOINWIT |
Quick Details
Specifications

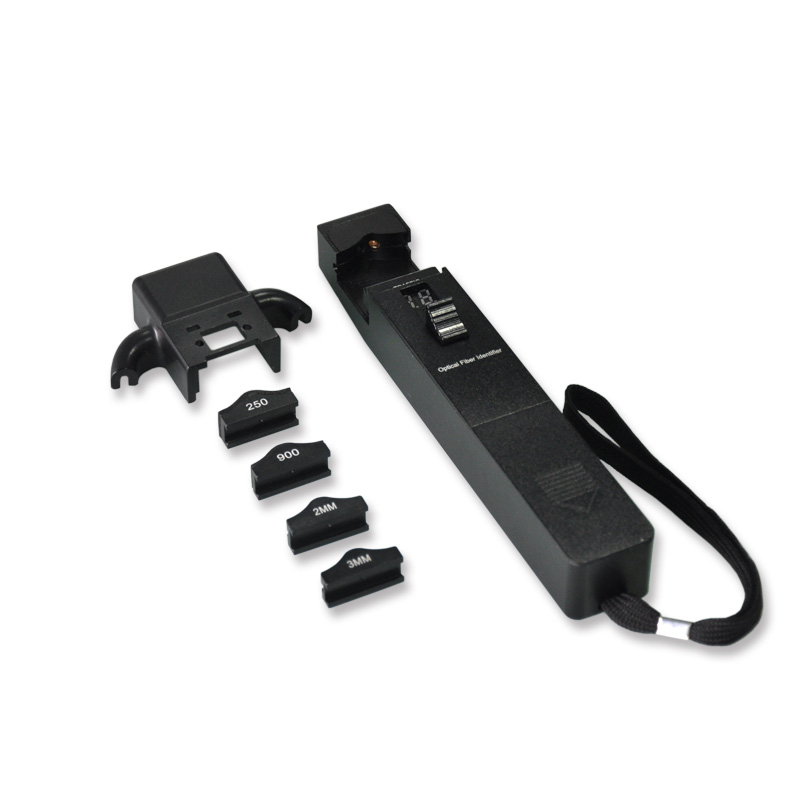

JW3306B Fiber Identifier
JW3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative
Core power without any damages to the bended fiber. When the traffic is present,the intermittently audible
Tone is activated.
Specifications
Type |
JW3306B | |
Identified Wavelength Range |
800-1700 nm | |
Identified Signal Type |
CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type |
?1mm InGaAs 2pcs | |
Adapter Type |
?0.25 (Applicable for Bare Fiber),?0.9 (Applicable for?0.9 Cable ) | |
?2.0 (Applicable for?2.0 Cable ),?3.0 (Applicable for?3.0 Cable ) | ||
Signal Direction |
Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) |
-46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) |
-50~+10 | |
Signal Frequency Display (Hz) |
270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) |
?0.9,?2.0,?3.0 |
-30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
?0.25 |
-25~0 (1KHz,2KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) |
0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery(V) |
9 | |
Operating Temperature(°C) |
-10-+60 | |
Storage Temperature(°C) |
-25-+70 | |
Dimension (mm) |
196X30.5X27 | |
Weight (g) |
200 | |
