| Model Number: | JW3109 |
|---|---|
| Brand Name: | JOINWIT |
| Place of Origin: | China (Mainland) |
| Modulation(Hz): | CW,2,270,1K,2K |
| Optical Connector Type: | FC/PC |
| Power Supply: | 3 pcs AA batteries |
| Wavelengths(nm): | 650/850/1300/1310/1550 |
| Emitter Type: | FP-LD,LED or others please specify |
| Weight(g): | 295 |
| Warranty: | 18 months |
| Brand: | JOINWIT |
Quick Details
Specifications

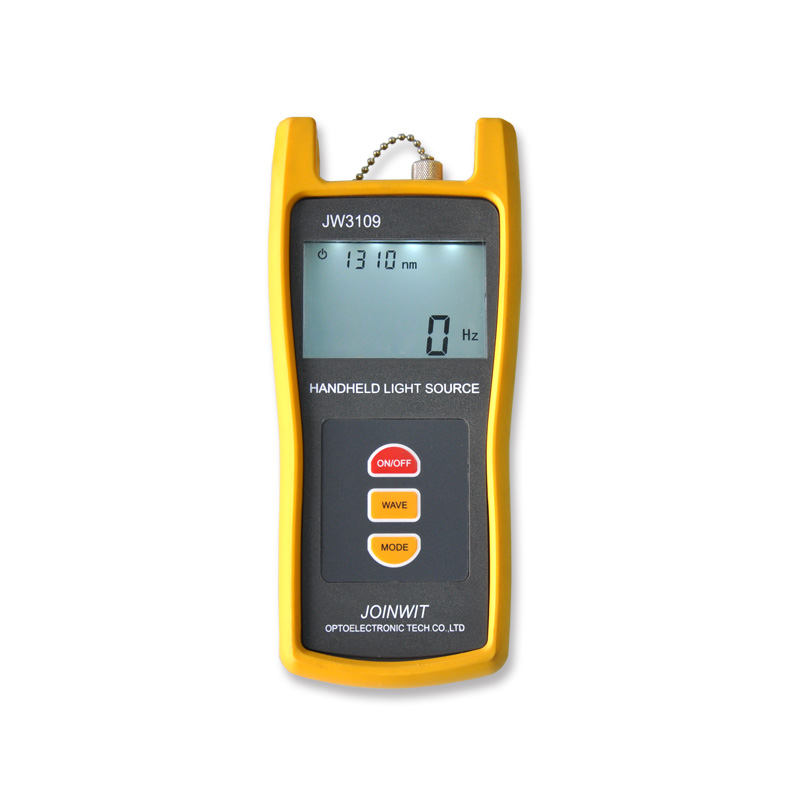

JW3109 Fibre Optic Light Source
the JW3109 optical light source Can provide 1 to 4 output wavelengths to meet specific requirements,
Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic Network
Characterization.
Specifications
Type |
JW3109 | |||
Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
Emitter Type |
FP-LD,LED or others please specify | |||
Typical Output Power (dBm) |
0 |
-7dBm for LD, -20dBm for LED | ||
Spectral Width(nm) |
1. ≤10 | |||
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours | |||
Modulation Frequencies |
CW,2Hz |
CW,270Hz,1KHz,2KHz | ||
Optical Connector |
FC/ universal adaptor |
FC/PC | ||
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) | |||
Battery Operating Time(hour) |
45 | |||
Operating Temperature(°C) |
-10~+60 | |||
Storage Temperature(°C) |
-25~+70 | |||
Dimension(mm) |
175x82x33 | |||
Weight (g) |
295 | |||
Joinwit Recommendation | ||||
JW3109 Optical Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. | ||||
MODEL |
INCLUDES |
All JW3109 Models |
the JW3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case. |
