| Model Number: | JW3211 |
|---|---|
| Brand Name: | JOINWIT |
| Place of Origin: | China (Mainland) |
| Measurement Range(dBm): | -70~+10/-50~+30 |
| Resolutions(dB): | 0.01 |
| Uncertainty: | 5% |
| Optical Connector: | FC,SC,ST interchangeable/2.5mm universal |
| Power Supply: | 3 pcs AA batteries and 9V AC Adaptor |
| Calibrated Wavelengths(nm): | 850/1300/1310/1490/1550/1625 |
| Weight(g): | 370 |
| Warranty: | 18 months |
| Brand: | JOINWIT |
Quick Details
Specifications

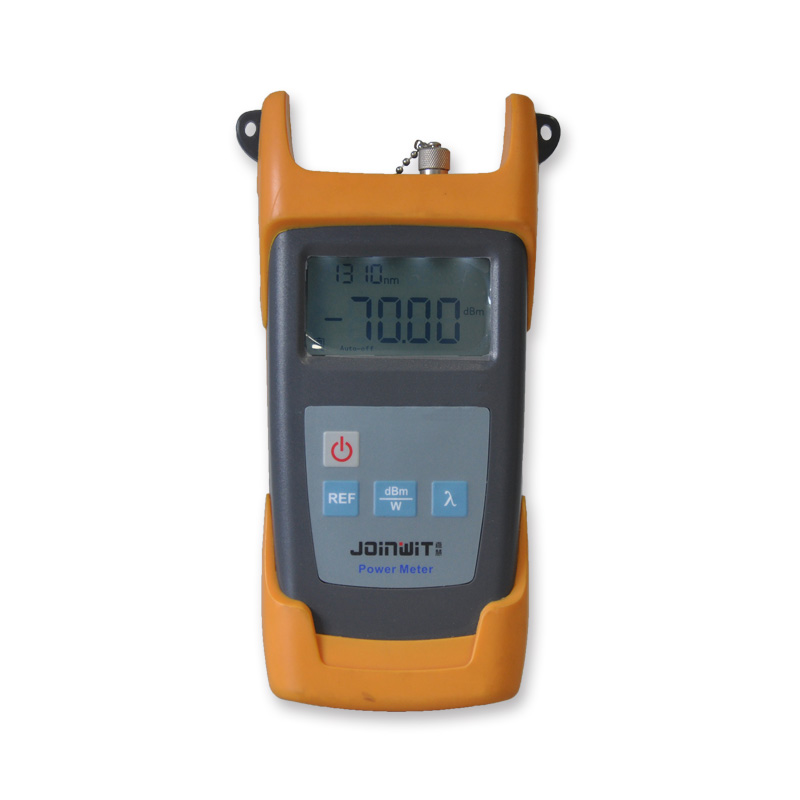

JW3211 Optical Power Meter
JW3211 optical power meter is handheld optical power meter, which can be usedfor Absolute
Optical power Measurements as well as for relative loss measurements in optic fiber networks.
Specifications
MODEL |
JW3211A |
JW3211C |
Wavelength(nm) |
800~1700nm | |
Detector Type |
InGaAs | |
Detector Size |
? 1.0mm | |
Measurement Range (dBm) |
-70~+10 |
-50~+30 |
Uncertainty |
±5% | |
Calibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625 | |
Resolution(dB) |
0.01 | |
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal | |
Power Supply |
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) | |
Battery Operating Time |
140 h with 1.5V Battery(3pcs) | |
Operating Temperature(°C) |
-10 ~ +60 | |
Storage Temperature(°C) |
-25 ~ +70 | |
Relative Humidity |
0 to 95% (non-condensing) | |
Dimension(mm) |
190X100X50 | |
Weight(g) |
370 | |
Standard Packages
MODEL |
INCLUDES |
All JW3211 MODEL |
the JW3211 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
