| Model Number: | JW3223 handheld VFL& OPM |
|---|---|
| Brand Name: | JOINWIT |
| Place of Origin: | China (Mainland) |
| Wavelengths(OPM Module): | 850nm/1300nm/1310nm/1490nm/1550nm/1625nm |
| Power Measurement Range(OPM Module): | -70~+3dBm |
| Output Power(VFL Module): | 1mw |
| Optical Connector: | FC/SC/ST interchangeable |
| Dimension: | 192mm*102mm*50mm |
| Resolution: | 0.01 |
| Weight: | 700g(including batteries) |
| Warranty: | 18 months |
| Brand: | JOINWIT |
Quick Details
Specifications

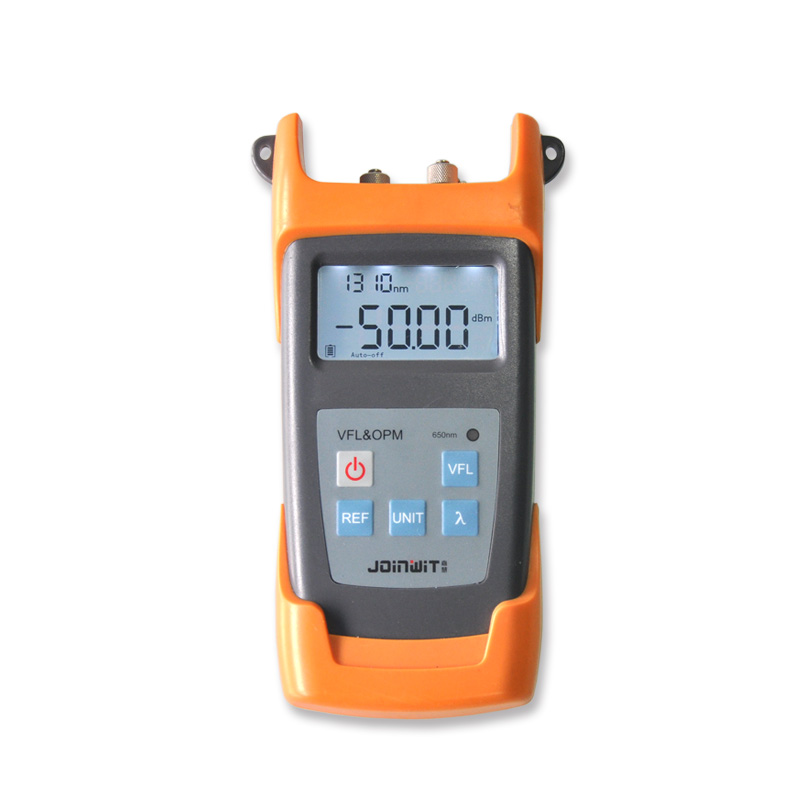

JW3223 VFL&OPM
Optical Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.
Specifications
Model |
JW3223 |
Operating wavelength(Power Meter Module) |
1310, 1490, 1550, 850, 1300, 1625 |
Detector Type |
InGaAs |
Out put power(VFL module) |
1mW |
Power Measurement Range |
-70~+3dBm |
Uncertainty |
±0.5dB |
Resolution |
0.01 |
Operation temperature |
-10~+60 °C |
Storage Temperature |
-25~+70°C |
Auto-off function |
Yes, Auto-off after 10minutes idle time |
Battery Life @ OPM |
180 hours |
Battery Life @ VFL |
60 hours |
Power Supply |
3pcs AA Batteries |
Weight |
700g (including batteries) |
Size |
192*102*50 |
Standard Packages
MODEL |
INCLUDES |
JW3223 VFL optical power meter |
the VFL Power Meter, 3pcs alkaline batteries, User Manual, Cotton swabs and Soft carrying case. |
