| Item Type: | Panel Lights |
|---|---|
| Light Source: | LED |
| Model Number: | 48W Dimmable Panel Lamp |
| Brand Name: | Greenough |
| Place of Origin: | China (Mainland) |
| Certification: | CE,RoHS |
| IP Rating: | IP44 |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Warm white cold white pure white |
| CRI (Ra>): | 85 |
| Lamp Luminous Efficiency(lm/w): | 75 |
| Lamp Luminous Flux(lm): | 3300-3600 |
| Lamp Power(W): | 48 |
| Input Voltage(V): | AC100-240V |
| Warranty(Years): | 3 |
| LED Light Source: | 3014SMD |
| Power Factor: more than 0.93: | Beam Angle: 120 Degree |
Quick Details
Specifications
Specification for dimmable led panel light

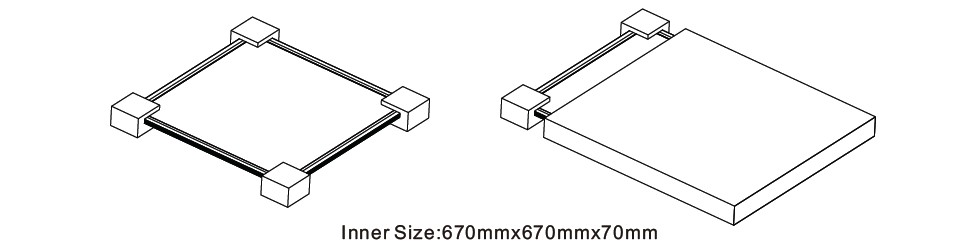

PACKAGE FOR LED PANEL LIGHT
The Dimensional Drawing of 600X600MM led panel light

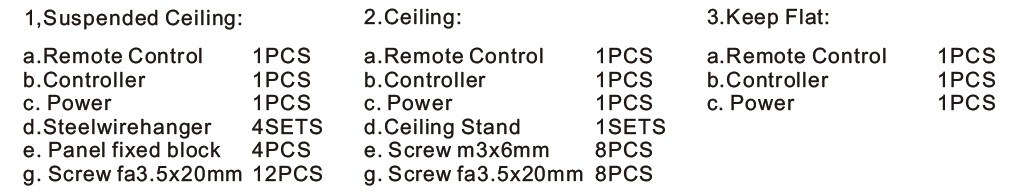

The installation of our led panel light
Testing for our led panel light
|
● Elegant appearance, soft lighting and decoration efficiency; |
|
● Dimmability optional |
|
● Energy saving: 50% more energy saving than normal fluorescent light; |
|
● Special heat output design, life span up to 50,000 hours ; |
|
● Health protection: no UV/IR; more comfortable for vision |
|
● Easy installation, can be hanged on the wall, the ceiling or kept flat on the ceiling. |
|
● Wireless Touching Remote Control Dimmable LED panel light (Color temperature and Brightness can be adjusted) |
|
● Lighting convenience: instant lighting-on with no flickering |
|
Item Number |
48W Dimmable Panel Lamp |
|
Lumen Output |
3300 lm ~ 3600 lm |
|
Power Consumption |
Max 48W |
|
Luminous Efficiency |
70-75 lm/W |
|
CRI |
>Ra75 ~ 85 |
|
CCT |
2700K ~ 6000K |
|
Working Voltage |
DC24V |
|
Powerfactor |
=0.95 |
|
Light Source |
SMD3014 |
|
LED Quantity |
448 pcs, (224pcs pw, 224pcs ww) |
|
Input Voltage |
AC100-240V 50/60Hz |
|
Power Efficency |
0.85 |
|
Dimmability |
YES. Wireless remote |
|
Beam Angle |
120° |
|
Suface Processing |
Electro white, wiredraw, sand blasting |
|
Glass Cover Option |
Transparent, Frosted Glass |
|
Lifetime |
40,000 hrs |
|
Warranty |
3 years,promise brightness decrease is less than 25% in 3 years. |
|
Certificate |
CE, RoHS |
|
Measurement |
600 x 600 x 15mm, 5.5gk/pc |
|
Packing Box |
670 x 670 x 70mm. 0.26kg/box, |
The Dimensional Drawing of 600X600MM led panel light
The installation of our led panel light
Testing for our led panel light
LED Panel lamp is suitable for all sorts of applications such as
*Commercial complex, offices, Conference rooms.
*Hospitals, schools, colleges and universities.
*Airports and metro stations,etc
*Hospitals, schools, colleges and universities.
*Airports and metro stations,etc
FAQ
1. What's your best price for this LED Panel Light?
A: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.
2. What's your MOQ? Can I mix styles?
A: For LED Panel Light, MOQ is 1 PC per model.
3. What's the delivery time?
A: As usual we deliver them within 7 days after order confirmed, but maybe it also will be around 10 days depending on auqntity.
4. What's your packing?
A: Our usual packing for LED Panel light is Neutral packing, Brown/White box or color box.
5. Can we print our own logo?
A: Yes, we can laser logo for you, usually if the order reached our MOQ, we can print it free for you.
6.What about after-sale service?
A: Contact me,I will do all I can do to solve problem.
7. What about the warranty?
A: Before products to be delivered, we check every single piece and pack them very well, and usually you receive your order in good condition. If product once have problem, follows can help you.
Here 2 years, or 3 years or 5 years warranty is for our led panel light.
8.Why choose you?
A: 1.With 5 yeas of technology erperience and professional in producing sales of kinds of high power LED Panel Light .50000 pieces per month can be supplied.
2. Strict quality control: after completion of the assembly ,a full inspection is performed.
3.Shipping: Orders will be dispatched 5-7 days after payment, depending on quantities.We Always choose the most economic and reliable shipping company to make sure you receive the goods in time.
4. After-sale service are available .( 2 year warranty )
Greenough Enterprises Co., Ltd. is a professional manufacturer, supplier of indoor and outdoor lighting located in Shenzhen. We devoted to develop, manufacture, and design the high quality LED lighting to all over the world. All the products are CE certified as well as RoHS compliant. for your projects.
Our products include , T5 driverless tubes, (compatible T8 LED tube, T8 Led integrated tubes, LED poultry farming waterproof tubes, , T8 PIR sensor tubes, Microwave sensor rador t8 tubes, Emergency tubes, ),T8 pink meat tubes, T8 pink butcher tubes,(GU10, MR16,B22,E27), LED Spotlight(GU10, MR16,B22,E27), AC driverless Samsung spot light, CREE LED down lighting ,Samsung LED down light, CREE LED ceiling light, CREE LED track light, Cree LED trunk light, LED panel light, pink LED panel light, CREE LED flood light, LED street light, CREE LED high bay light, LED drivers.
