| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE,FDA |
| Model Number: | RF-1610-CO2-100W |
| Brand Name: | RAY FINE |
| Place of Origin: | China (Mainland) |
| Control Software: | laserwork |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-30,000mm/min |
| Cutting Area: | 1600*1000mm |
| Cutting Thickness: | 0~20mm according to different materials |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
| name: | arylic laser cutting machine |
| head quantity: | single/one |
| cutting material: | arylic |
| color: | red and black |
| control software: | laserwork |
| cutting size: | 1600*1000mm |
| worktable: | honeycomb table/aluminium blade table |
Quick Details
Specifications
High precision 1610 single head laser cutting machine

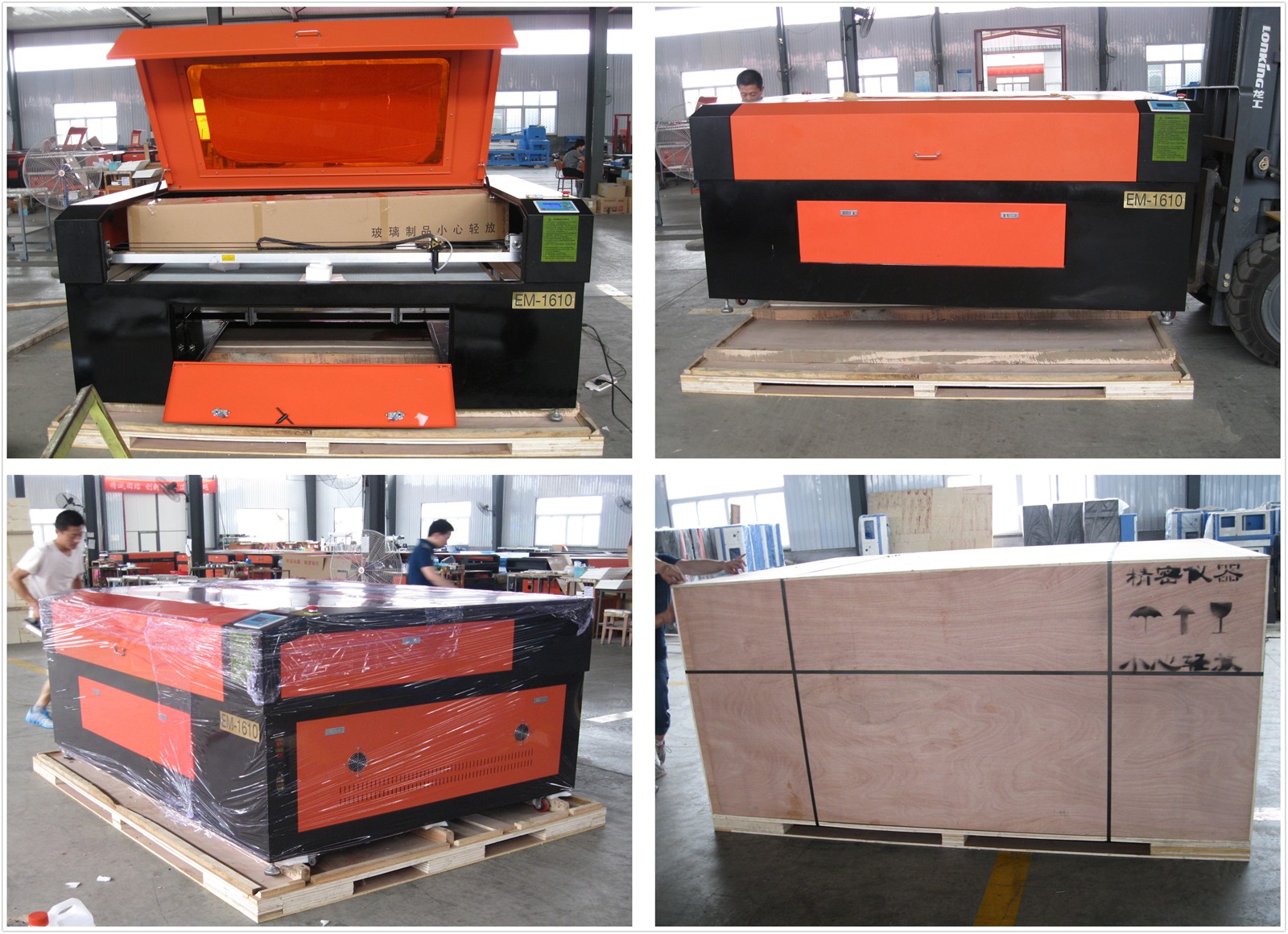

Machine photos:
Applicable Industry:
advertisement signs and marks making, handicraft industry, crystal accessories, paper cutting,
wood industry, printing industry, clothing and leather industry, etc.
Applicable Material:
Maple Leaf, Double-color sheet, glass, acrylic, wood, paper, leather, marble, ceramics, etc .
Parameters:
|
Model |
RF-1610-CO2-100W |
|
Engraving and Cutting Area |
1600*1000mm |
|
Laser Power |
100W (Optional:60W,80W,130W,150w) |
|
Laser type |
CO2 sealed glass tube, Wavelength: 10.6um |
|
Engraving Speed |
0-60,000mm/min |
|
Cutting Speed |
0-30,000mm/min |
|
Reposition Accuracy |
±0.01mm |
|
Machine Resolution |
1,000 --- 10,000 DPI |
|
Laser Output Control |
0-100% No section control,Soft inner 0-100% adjustable. |
|
Minimum Character Size |
English:1mm ; Arabic numbers:1mm |
|
Machine Power |
<1,700W |
|
Support Format and Software |
PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw |
|
Working Environment |
Temperature:0-45°C Humidity 5%-95% ( No condensate water) |
|
Drive system |
Stepper motor |
|
Control system |
DSP system |
|
Exhaust smoke system |
Big exhaust fan |
|
Working Voltage |
220V,50HZ/60HZ |
|
N.W. |
550KG |
|
G.W. |
660KG |
|
Warranty time |
1 year |
|
Package |
Wooden case |
|
Delivery time |
14 days |
Acrylic cutting and engraving samples:
