| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 MONTHS |
| Certification: | CE,ISO |
| Weight: | 150KGS |
| Dimension(L*W*H): | 600*900*120mm |
| Power(W): | 2.2kw |
| Voltage: | 110V/220V |
| Model Number: | RF-6090-2.2KW |
| Brand Name: | RAY FINE |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| machine name: | desktop cnc router RF-6090-2.2KW |
| working area: | 600*900mm |
| color: | white and blue |
Quick Details
Specifications
Cast iron machine body desktop cnc machine RF-6090-2.2KW

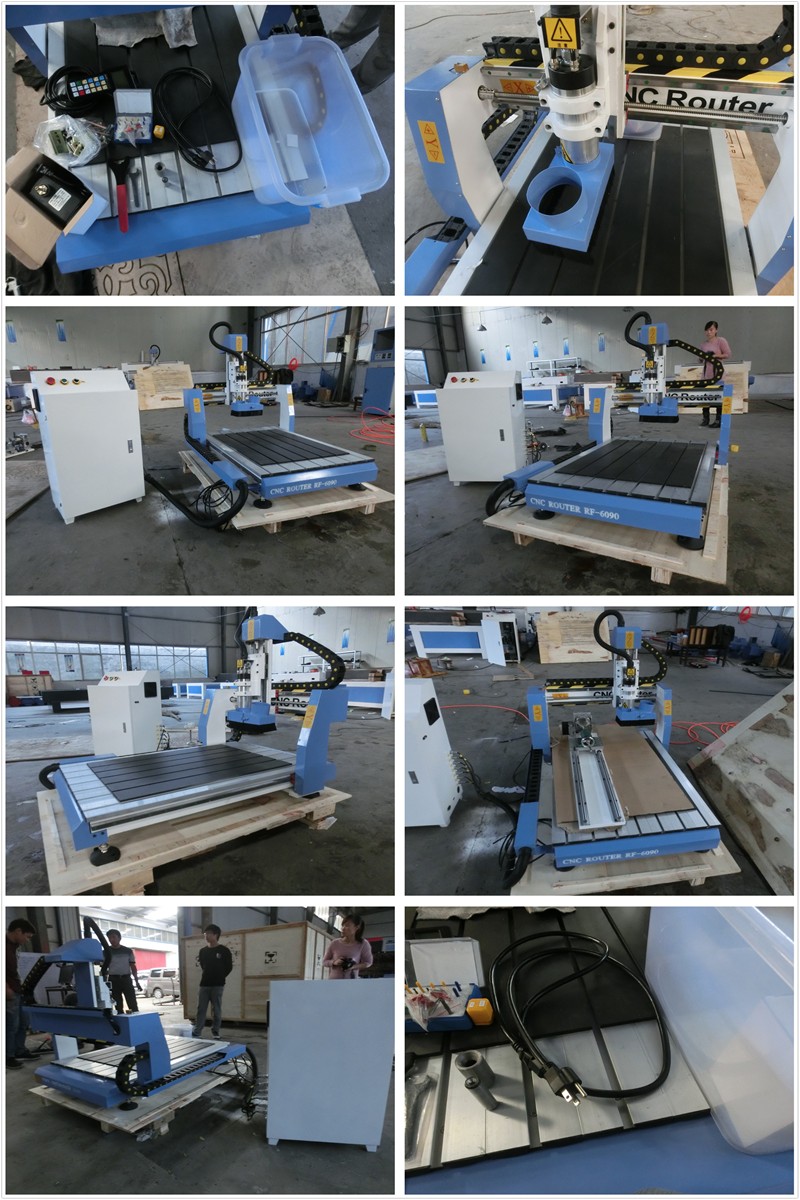

Machine photos:
|
NO |
Description |
Parameters |
|
1 |
Working area |
600*900*120mm |
|
2 |
Table size |
1150*1450mm |
|
3 |
Transmission |
ball screw from Taiwan |
|
4 |
Table structure |
T Slot |
|
5 |
Spindle power |
800W/1,5KW/2.2KW |
|
6 |
Spindle speed |
24000r/min |
|
7 |
Travelling speed |
10m/min |
|
8 |
Working speed |
8m/min |
|
9 |
Working Delicacy |
0.005mm |
|
10 |
Repositioning Accuracy |
0.05mm |
|
11 |
Driving Motor |
Stepper motor |
|
12 |
Control System |
DSP/Ncstudio Control System |
|
13 |
Command Code |
G Code*.u00*.mmg*.plt |
|
14 |
interface |
USB |
|
15 |
Voltage |
AC220V/50HZ |
|
16 |
Running Environment |
Temperature:0 degree~45 degree |
|
17 |
Software |
Artcam/Type3,other CAD/CAM |
Features of this machine:
1. cast iron machine body with good rigidity and high precision.
2.Imported ball screw ensures stable movement and high accuracy.
3.Water-cooling brushless spindle,low noise,constant strength and long time working.
4.Broken-point memory ensures the continuity of work when power off.
samples:
