| Model Number: | JPC-11 |
|---|---|
| Brand Name: | Thermal International |
| Capacity: | 500000 |
| Certification: | CE,UL |
| Heating System: | Thermosyphon (Passive) |
| Type: | Evacuated Tube |
| Pole Length275mm: | 275MM |
| Terminal pins distance: | 28.5 mm |
| Wire connecting hole: | 4mm |
| Rated Current and voltage: | 16A 250VAC |
Quick Details
Specifications
JPC Thermostat is widely used in Heater like Water heater or Solar water heater.

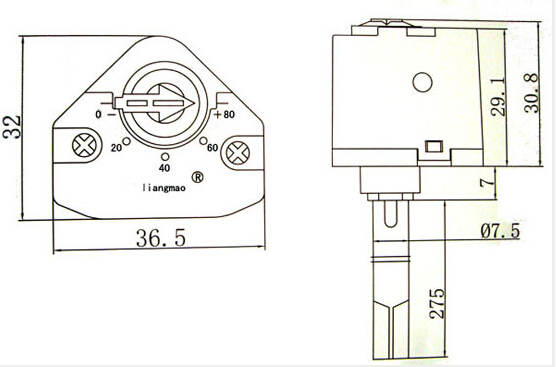

Size:
1. Pole Length: 170mm
2. Pole outdiameter: Φ7.5±0.1mm
Technical Specification:
1, Rated Current and voltage: 16A 240VAC
2, Action Temp.: 30±5℃~75℃±5℃
3, over-heated cut off temp.: 95℃±4℃
4, Electrical Strength: AC 50Hz 1800V without breakdown
5, Insulation resistance: ≥500MΩ
6, Spring action life: 50,000times
