| Material: | Galvanized Iron Wire |
|---|---|
| Hole Shape: | Square |
| Application: | Construction Wire Mesh |
| Type: | Welded Mesh |
| Material: | Galvanized Iron Wire |
| Brand Name: | Secure |
| Wire Gauge: | 4,5,6mm |
| Aperture: | 50*200, 50*100,60*100,60*200 |
| Place of Origin: | China (Mainland) |
| length: | 1m,1.25m,1.5m |
| width: | 2m, 2.5m |
| surface: | hot dip galvanized |
Quick Details
Specifications
Product introduction

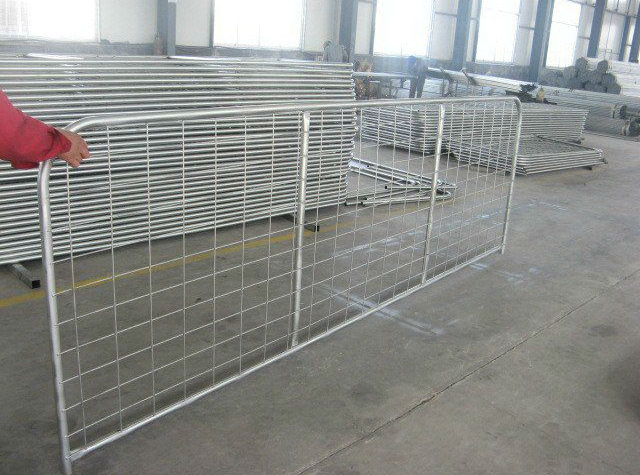

Outdoor retractable fence is very Popular in Canada, North America, the frame is Square pipe.
the Surface treatment of Outdoor retractable fence is hot-dipped gal+PVC/power spayed,which is anti-acid and anti-alkali in the outdoor environment and prolong life time.
Outdoor retractable fence is used for fencing off construction and industrial sites and events. They protects against theft and vandalism, keep children and unwanted persons out of dangerous site and enables access control of visitors to events.
Specification of outdoor retractable fence
1)Column and mesh technology parameter
Raw material performance |
Mesh wire tensile strength:Mpa |
500—550 Mpa |
Column plate tensile strength:Mpa |
≥400 Mpa | |
Column steel strip elongation:% |
26%≤elongation≤40% | |
Grid solder joint tensile resistance(N) |
Mesh |
3000-5000 N |
2)Common size
Wire diameter |
3mm,2.5mm,4mm(popular),4.5mm,5mm
|
Mesh of the fence panel |
60mmx120mm,60*150mm(popular),50mmx100mm,50mmx200mm, 100mmx100mm, 75mmx75mm
|
Width& length |
2500mmx1800mm, 2000mmx1800mm 2100mmx2400mm(popular), 1800*2900mm, 2100*2600mm 1800*2400mm or as your requirements.
|
Frame & rail |
Round pipe: 25mm, 32mm(popular),42mm,48mm O.D the normal thickness is 1.5-2.0mm,2.0mm is the most popular
|
Support post |
Round Pipe diameter: 40mm 42mm 48mm 60mm
|
Surface treatment |
Hot dipped galvanized or Paited
|
Fence foot |
Plastic bases filled with concrete (600x220x150mm) |
OEM Service
1.Secure-nett Technology:
1)Raw Material
Outdoor retractable fence frame uses hot-dipped galvanized square tube as raw material,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Packaging & Shipping
- Packaging&Shipping
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
It has 4 metal corners to keep the pallet more strong.
It has metal plate under the plastic bandage to reduce the apressure of fence panels.
Wooden plate on top which can protect the fence panels avoid being crushed by other pallets.
