| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Overseas service center available |
| Certification: | CCC,CE,ISO,FDA |
| Model Number: | RF-3020-CO2-40W |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | corelaser |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-300mm/ s |
| Cutting Area: | 300*200mm |
| Cutting Thickness: | 0-10mm |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| Condition: | New |
| product name: | Handheld laser petty cutters machine |
| laser power: | 40w |
| power cable: | USA,EURO,ASIA |
| custom made: | yes |
| red dot pointer: | yes |
Quick Details
Specifications

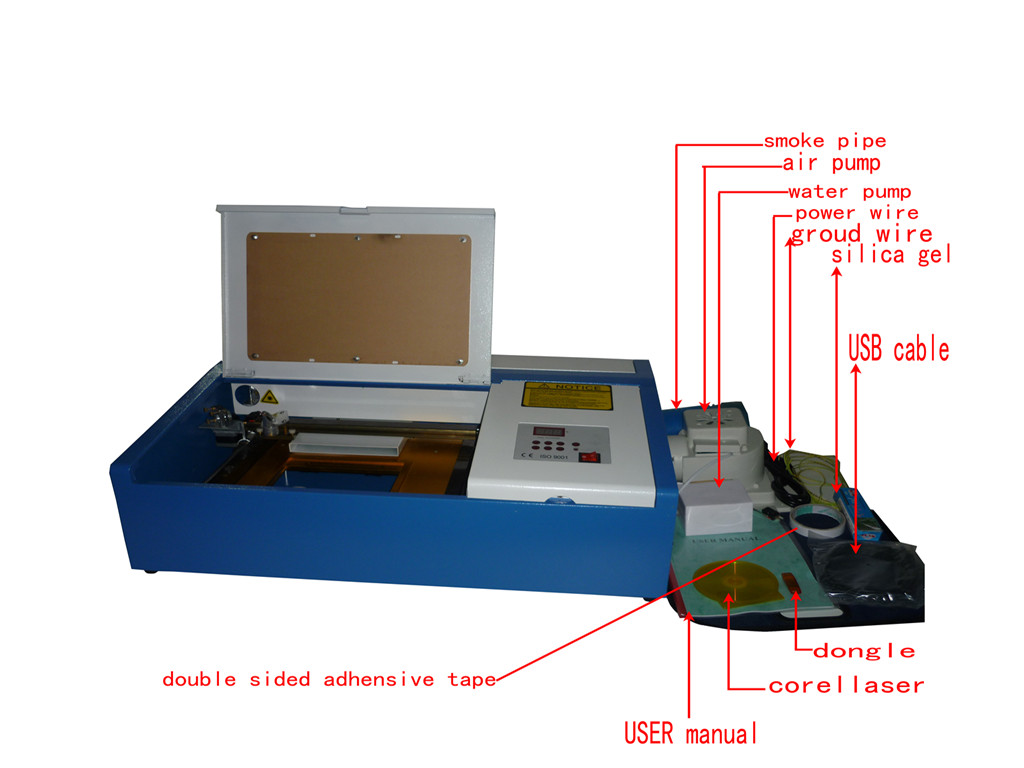

Handheld laser petty cutters machine RF-3020-CO2-40W
1.Working Area:300*200 mm
2.Control System:Laserwork
3.Red dot pointer
4.Water Cut-Off Protection
5. Electric/Motorize Up and Down Table
6. Working table:honey comb and Al knives
1.Working Area:300*200 mm
2.Control System:Laserwork
3.Red dot pointer
4.Water Cut-Off Protection
5. Electric/Motorize Up and Down Table
6. Working table:honey comb and Al knives
Technical Parameter
| Model | RF-3020-40W-CO2 |
| Up and down size | 50mm |
| Power supply |
AC220±10% 50HZ/AC110±10% 50HZ |
| Working area | 300*200mm |
| Laser power | 40w |
| Max cutting speed | 600mm/s |
| Laser energy control | 1-100% set by software |
| Working table | aluminum knief and honey comb |
| Locating precision |
<0.01mm |
| Max engraving speed | 1000mm/s |
| Operating temperature | 0-45 ℃ |
| Resolution ratio | 1000dpi |
| Control program | corelaser |
| Data transfer interface | USB |
| System environment |
WINDOWS 2000/WINDOWS XP/VISTA/WIN7 |
| Cooling way |
Water cooling and protection system |
| Graphic format supported | BMP,DWG, DXF,DXP,PLT |
| Compatible software | LASER DRAW |
| Cutting thickness |
0-10 mm (depends on different materials) |
| Color separation |
Separation of cutting up to 256 colors |
| Sloping engraving | yes |
| Red dot pointer | yes |
| Packing | plywood case |
| Machine size | 90*60*40cm |
| Net weight | 41kg |
|
Warranty time |
1 YEAR |
